LASERfibre LF-MW 1200

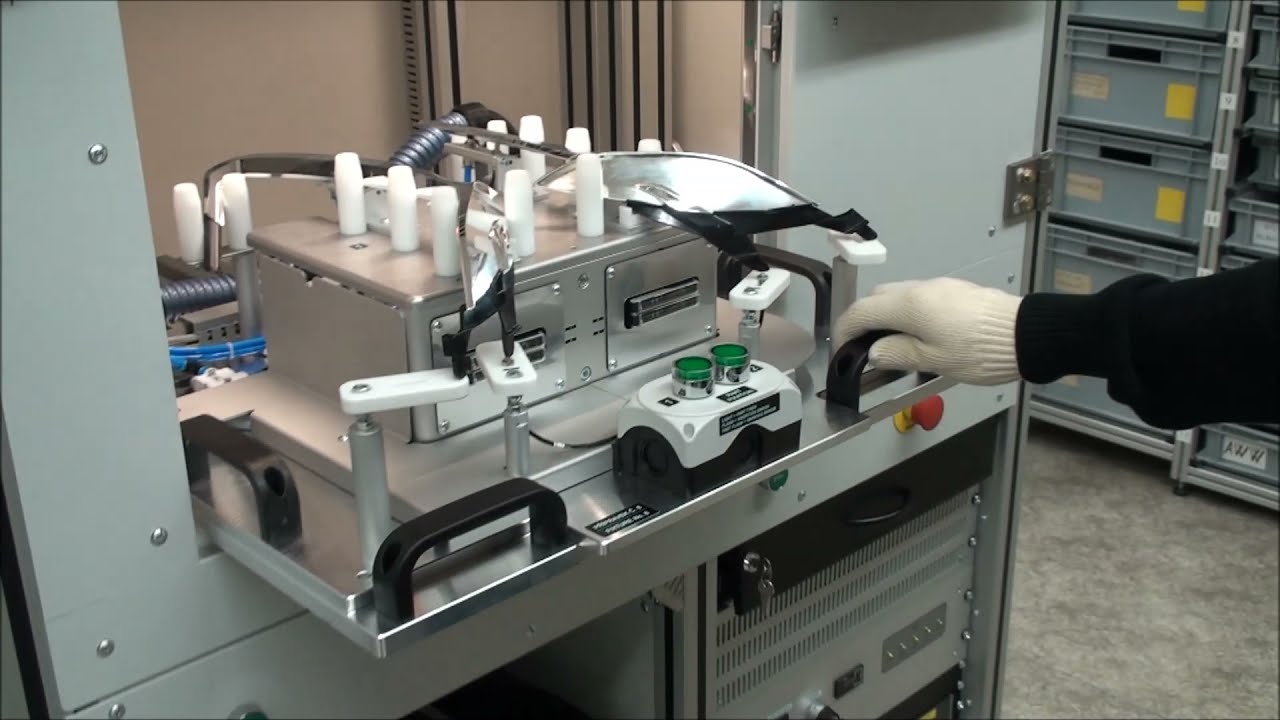

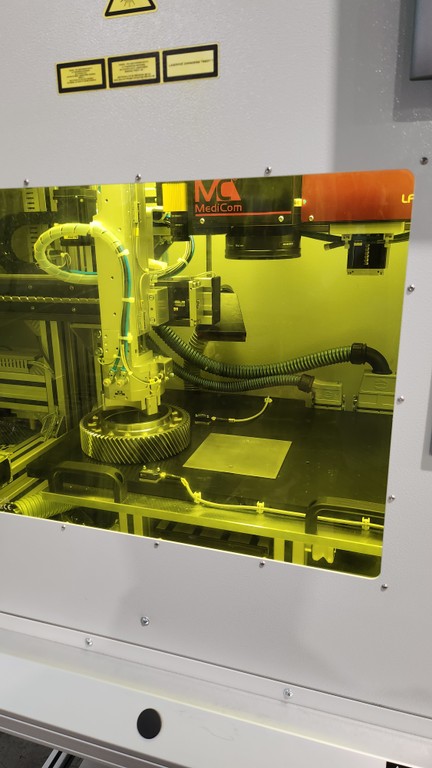

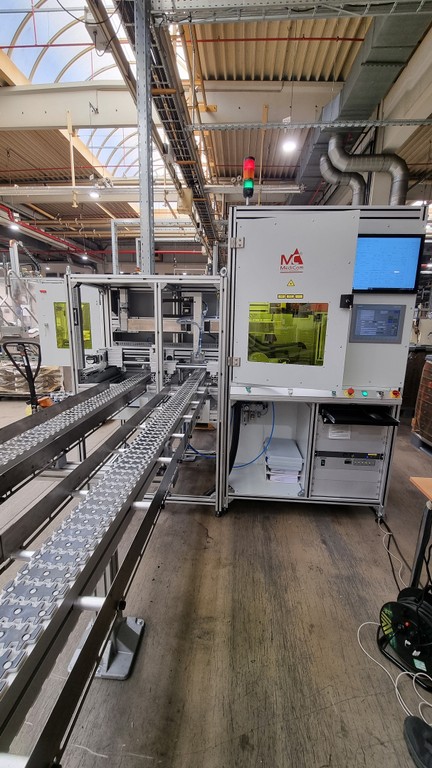

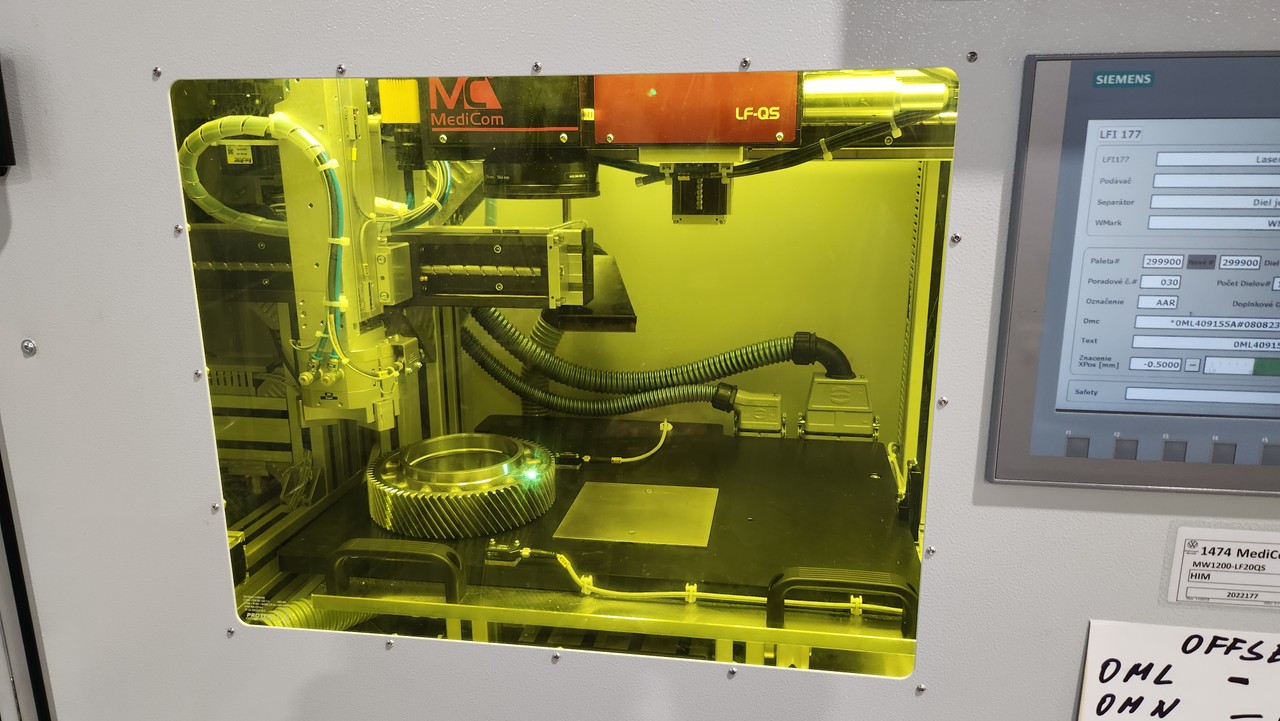

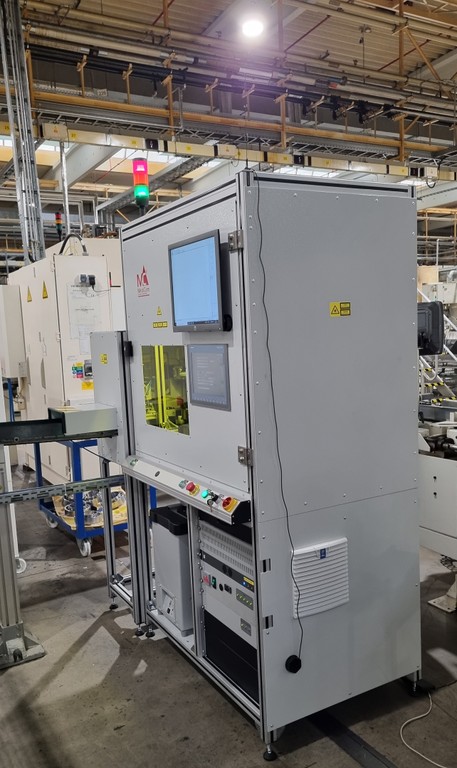

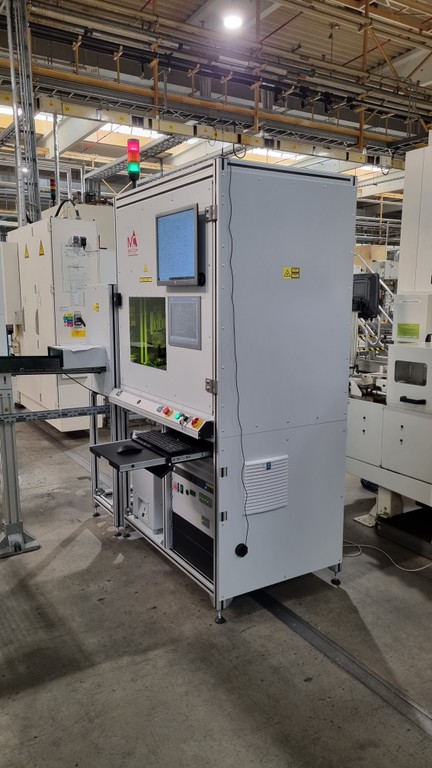

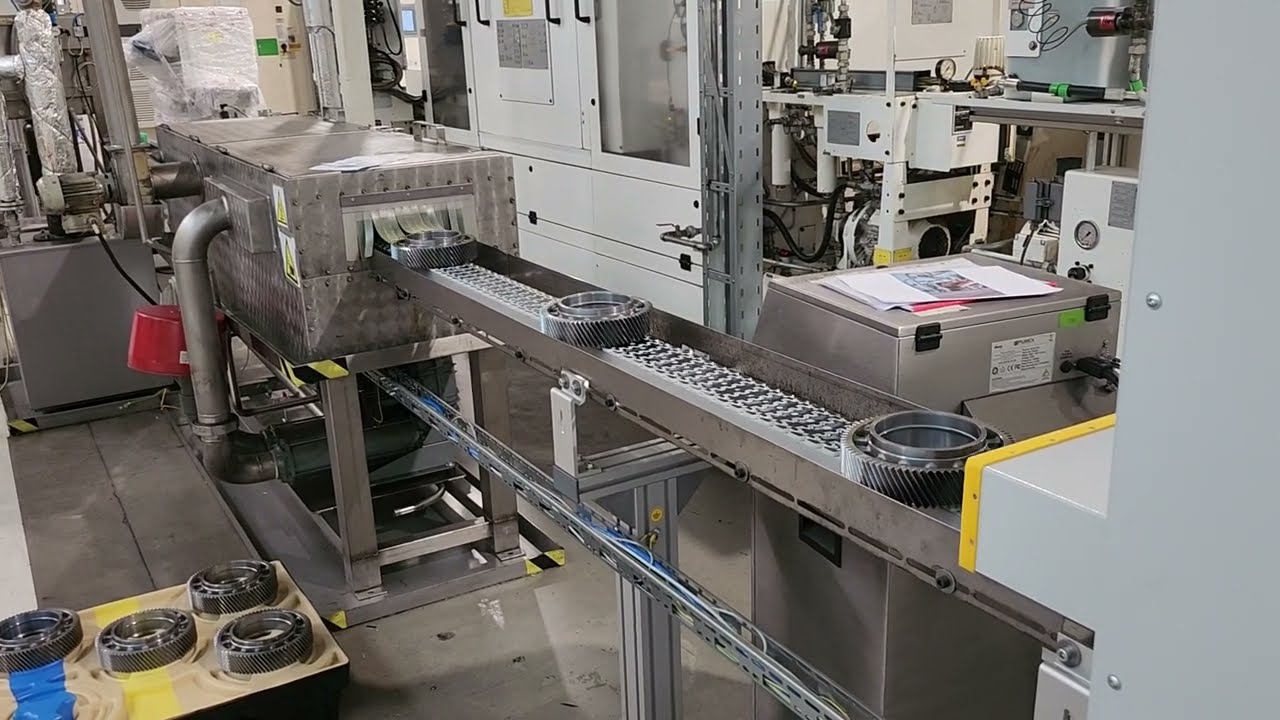

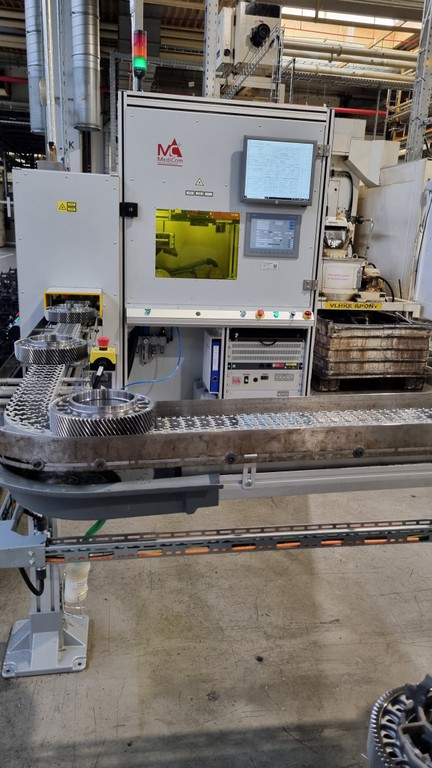

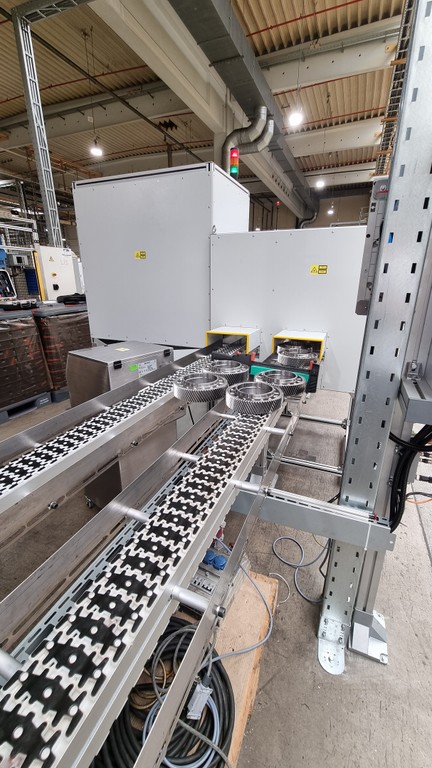

Industrial laser marking station MW1200 with automatic doors and sliding table- Industrial laser marking station MW1200
- Stand-alone medium-sized station with a basic floor plan of 1200x800mm
- Possible laser sources - fiber LF, vanadate LV or CO2 LM
- Ytterbium fiber laser with power from 20W to 100W diode pumped (applies to LF)
- Pulse (Q-switched) or continual (CW) laser design (applies to LF)

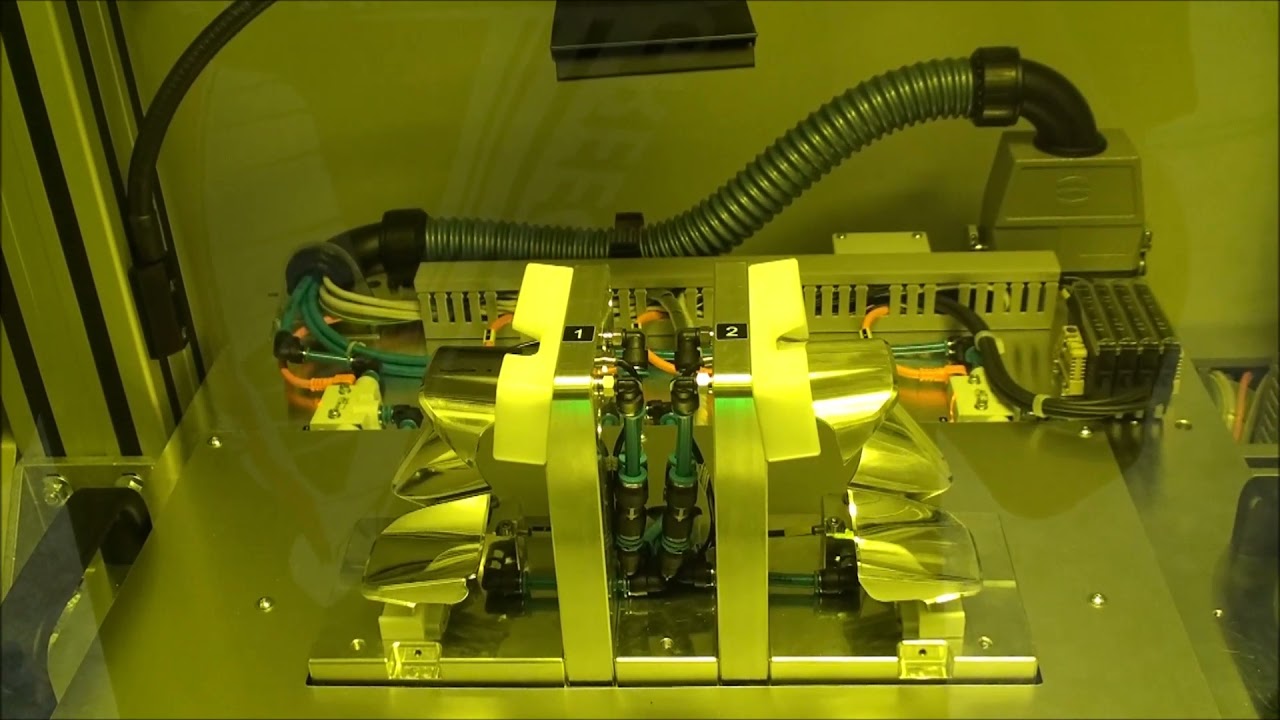

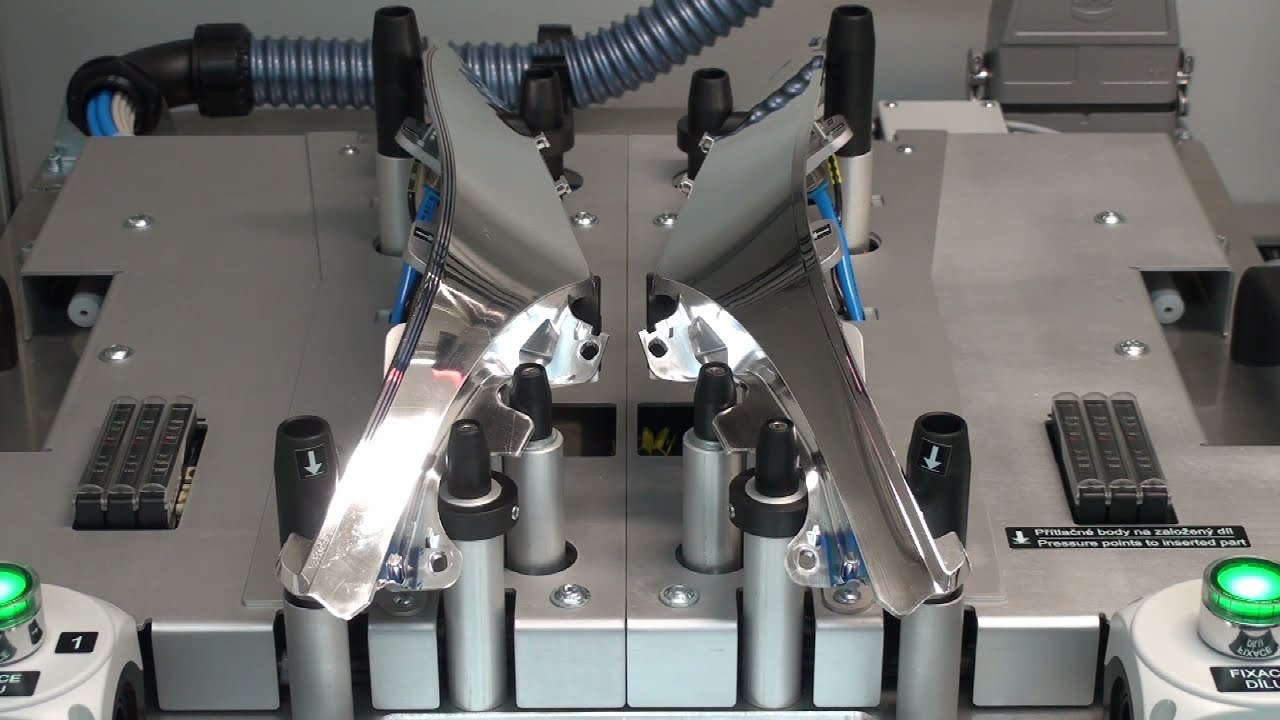

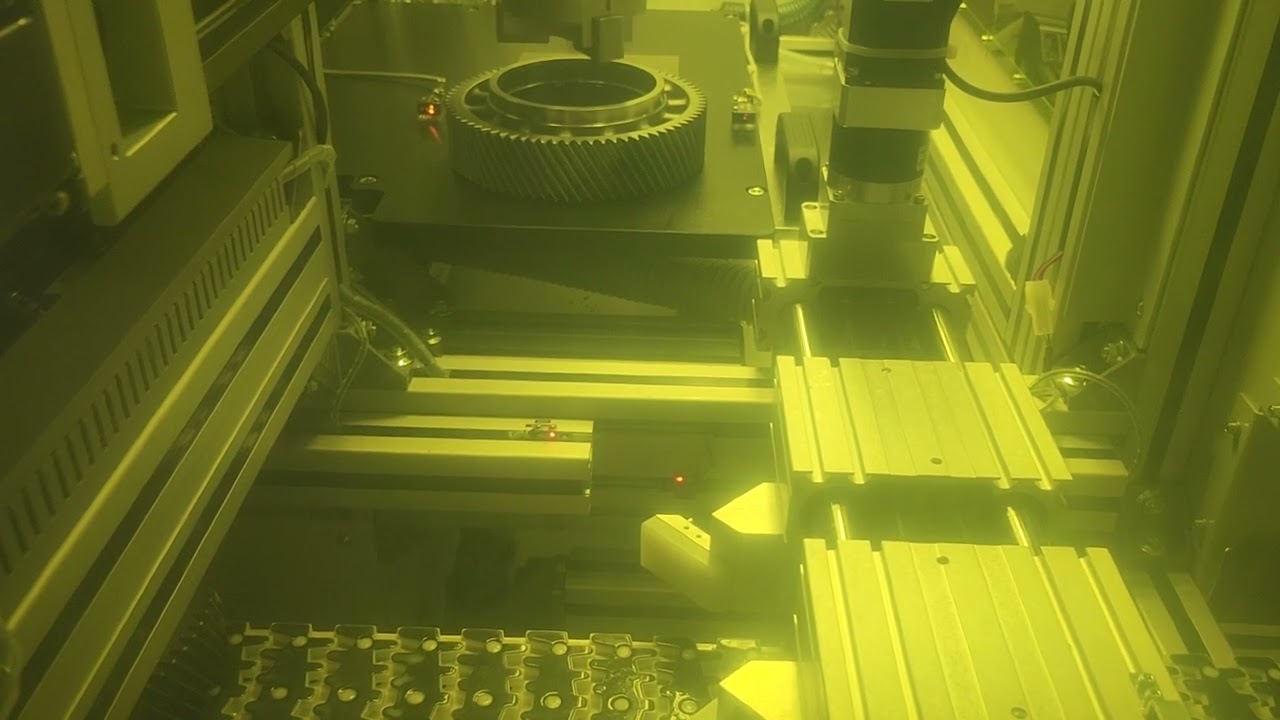

- Large space for parts insertion - marking of large parts

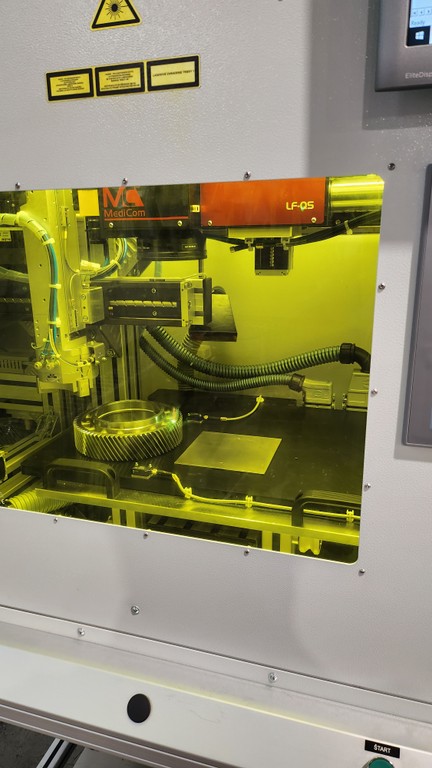

- Automatic sliding doors for quick and easy part insertion and removal

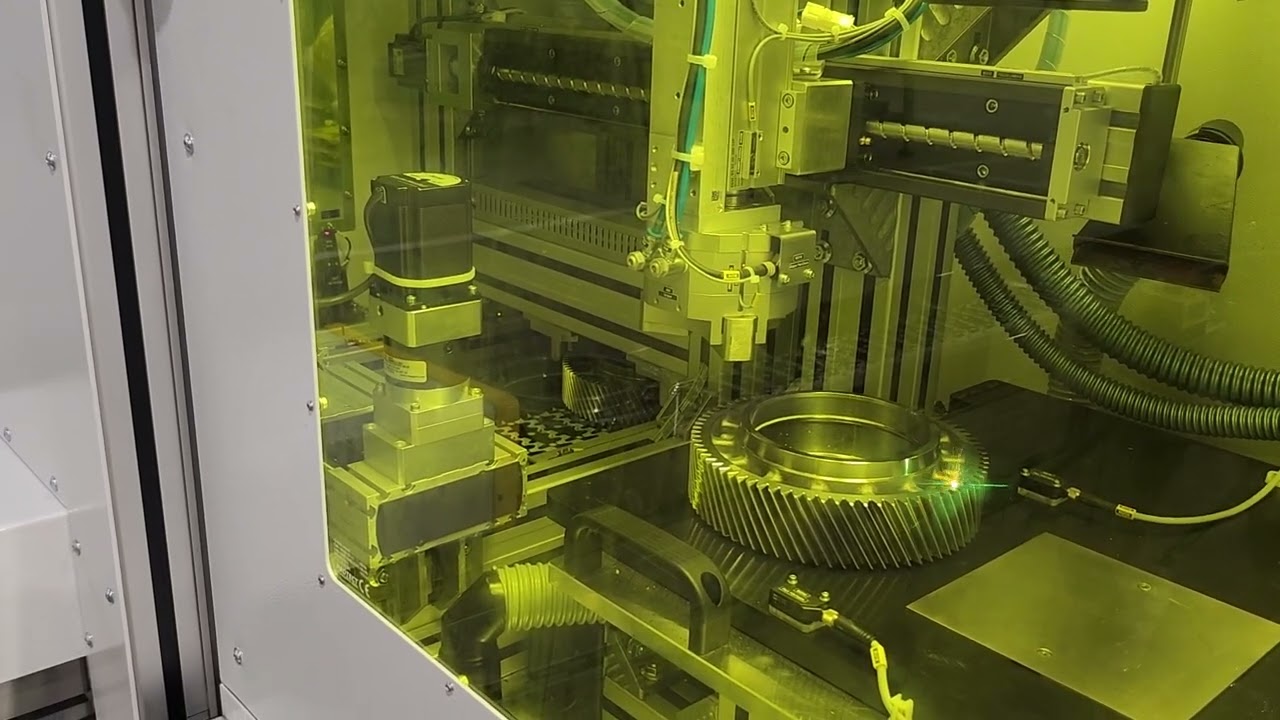

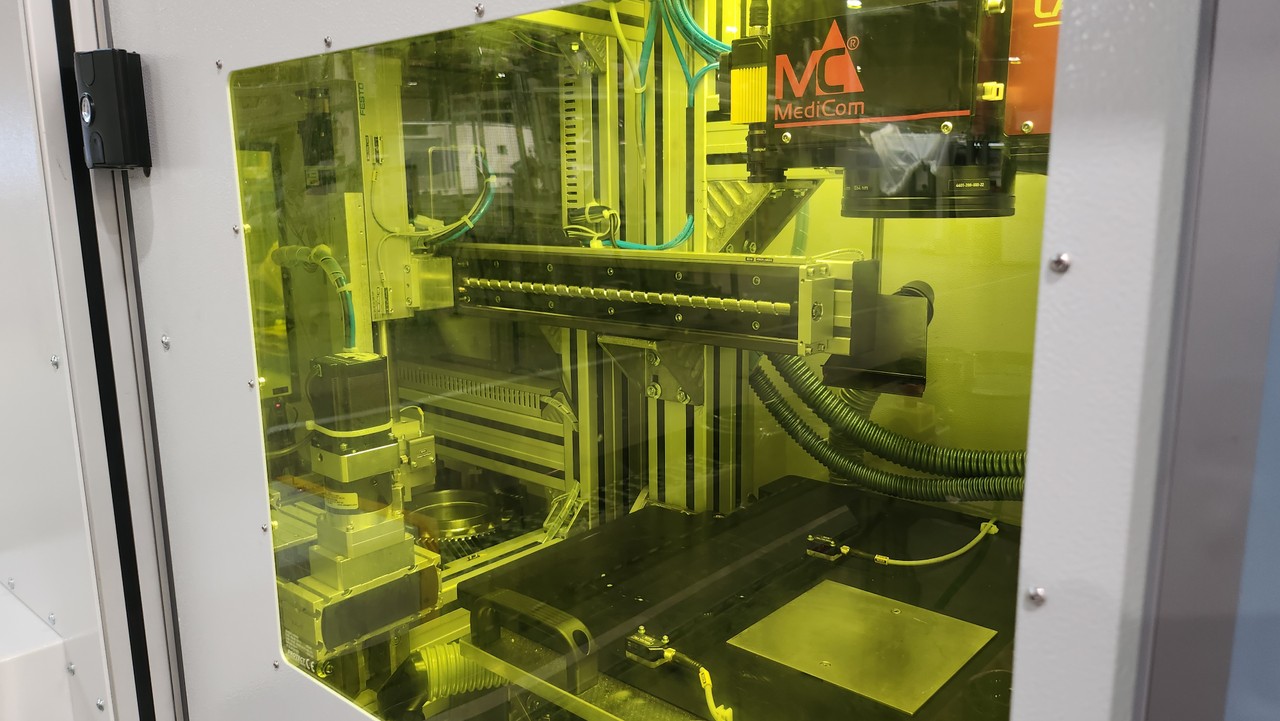

- Motorized vertical Z axis - laser focus

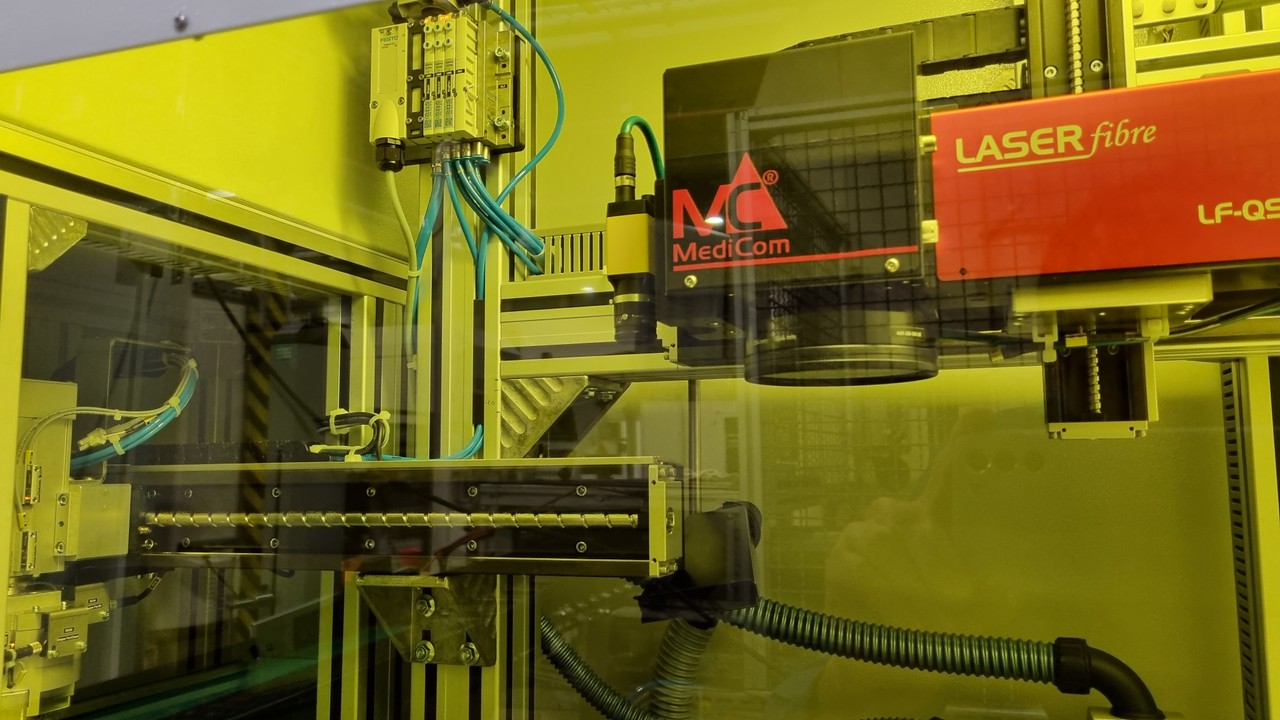

- Motorized horizontal X axis for large surfaces marking
- Large marking field from 160X160 mm to 280 x 280 mm
- Software - WMark - the marking control program, Windows environment, full setting of all marking parameters comprehensive set of commands and functions

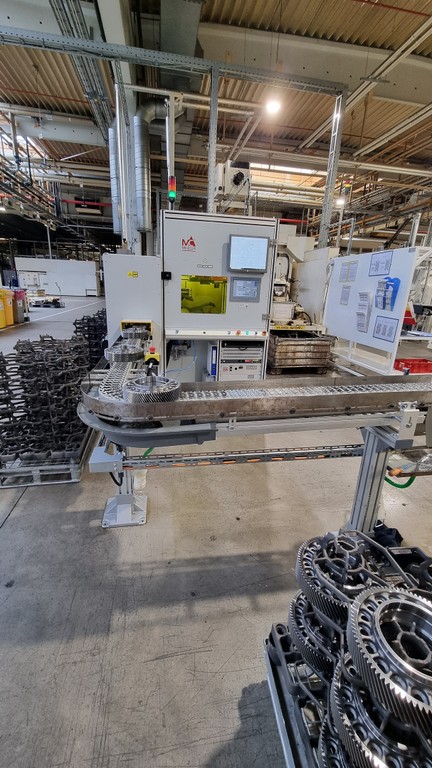

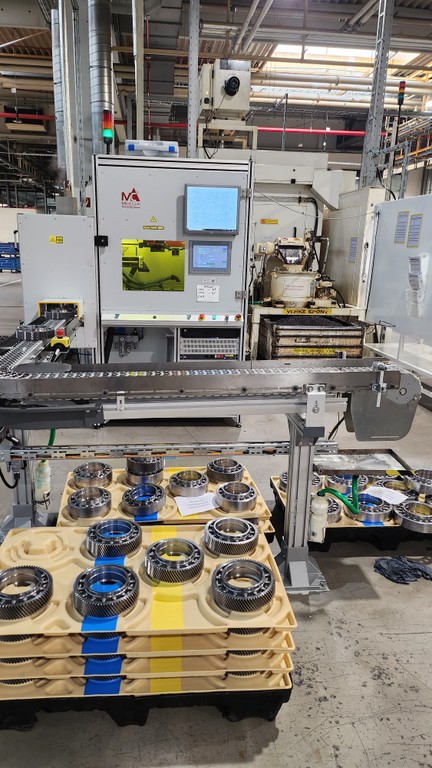

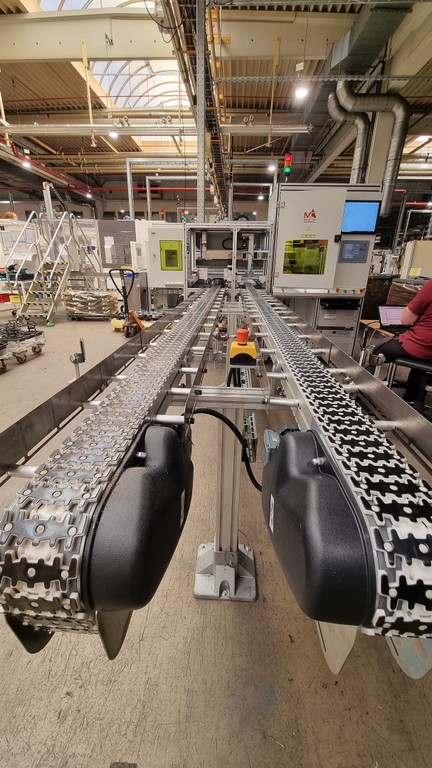

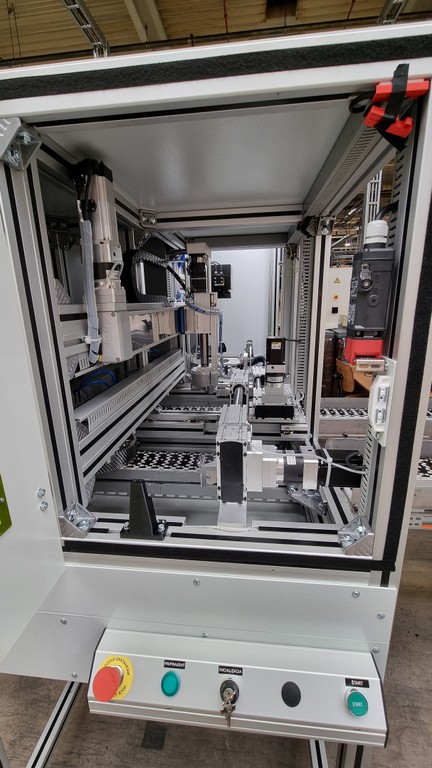

- Station design allows integration of width range of accessories such as motorized linear and rotary axes, sliding tables, camera systems, code readers, etc.
- Dimensions of the space for part insertion through automatic door 590 x 520**x 600 mm (w x h x d)
- Dimensions of the space for part insertion through big service door 1000 x 600**x 600 mm (w x h x d)
- The station is designed for use in continuous operations 7/24
(** according to f-theta lens focal length)
Technical parameters
| Model | LFQ20MW 1200 | LFQ30MW 1200 | LFQ50MW 1200 | LFQ100MW 1200 | ||
Laser type | Fiber Q-switched | |||||
Laser power | 20 W | 30 W | 50 W | 100 W | ||
Wavelength | 1064 nm | |||||
Frequency | Q pulsed 5-200 kHz MOPA pulsed CW-850 kHz | |||||
Marking field | 100 x 100, 160 x 160, 200 x 200, or 280 x 280 mm 1) | |||||
Single line width | 0,04 - 0,08 mm 2) | |||||
Max. part size | through automatic door 590 x 5203)x 600 mm (w x h x d) through big service door 1000 x 6003)x 600 mm (w x h x d) | |||||
Max. weight of the part | 100 kg | |||||
Z axis stroke | max. 300 mm | |||||
X axis stroke | max. 400 mm | |||||
Power supply | 100-240 V, 50/60 Hz | |||||
Input | 300-600 W 4) | |||||
Cover | IP44 | |||||
Station dimensions | 1220 (W) x 2100 (H) x 860 (D) mm | |||||
Station weight | 450 kg | |||||
Cooling | Air surrounding temperature 15°- 35°C | |||||
Application software | WMark | |||||
Operating system | Windows 10 | |||||
Certificates | Laser class I, CE mark | |||||
1) alternative or optional design
2) depends on marking field size
3) according to f-theta lens focal length
4) according to laser power
Optional accessories:
Exhausting units

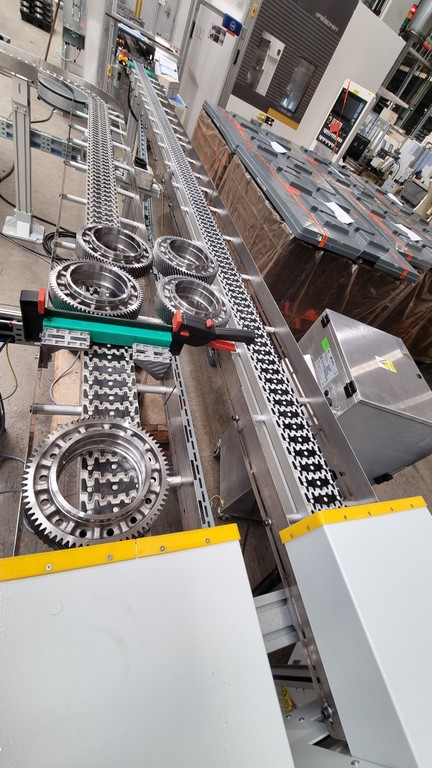

Automatic feeders
Rotary axes, DC and step feeds
