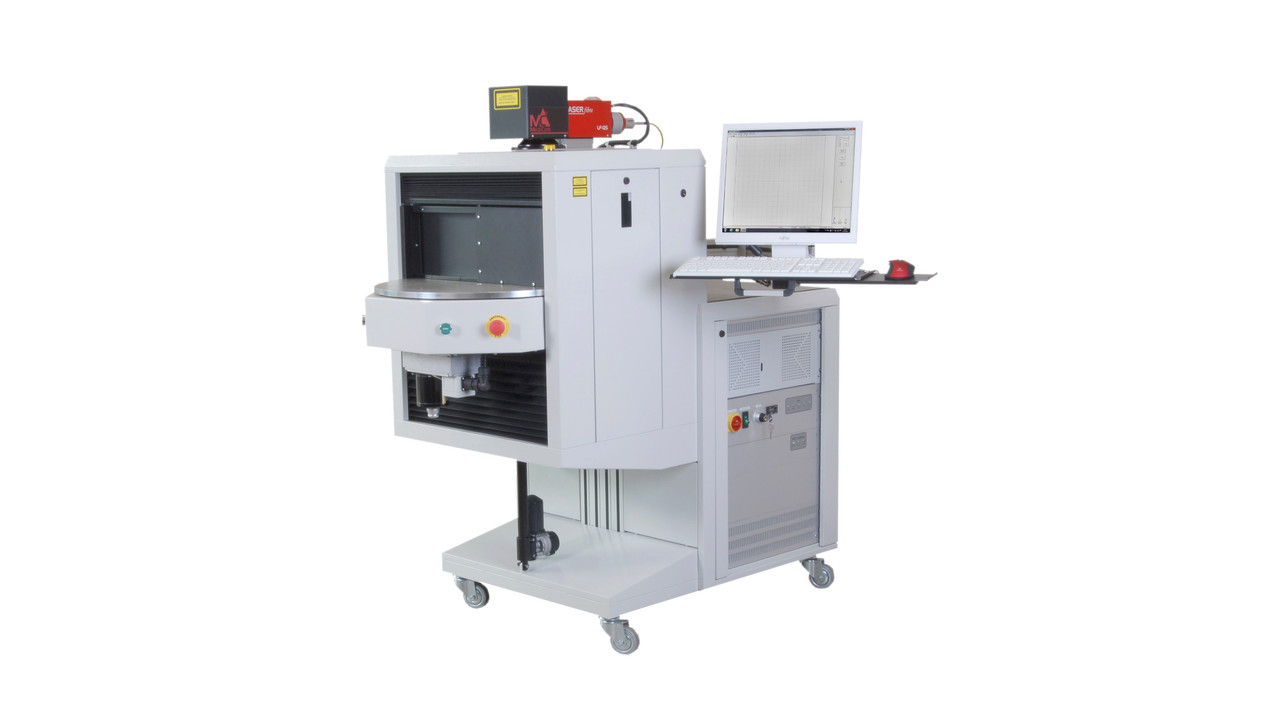

LASERfibre LF20C

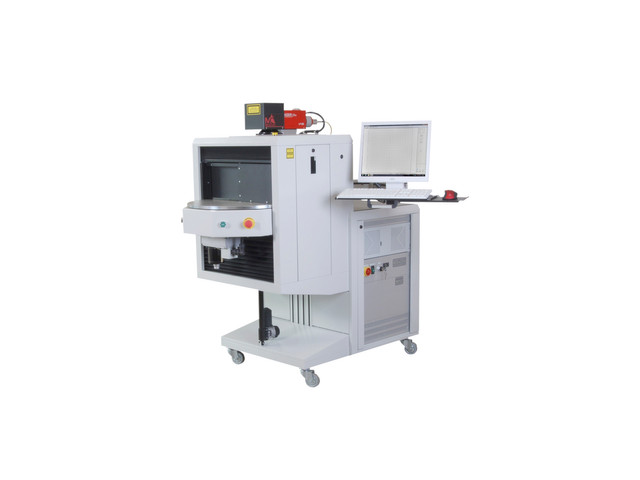

Laser marking machine with fiber laser

Industrial laser marking station
Fiber laser in power rage from 20 W to 100 W
Pulse (Q-switched) or continual (CW) laser design
Motorized linear Z-axis - laser focus
Station design with automatic rotary carousel or sliding table
Marking field from 100x100 mm to 280x280 mm (usually 160x160 mm)
Software - WMark - the marking control program, Windows environment, full setting of all marking parameters comprehensive set of commands and functions

Optional accessories:

Exhausting units
Automatic feeders
Rotary axes, DC and step feeds

Technical parameters

Model	LFQ20C	LFQ30C	LFQ50C	LFQ100C
Laser type	Fiber Q-switched
Laser power	20 W	30 W	50 W	100 W
Wavelength	1064 nm
Frequency	Q pulsed 5-200 kHz MOPA pulsed CW-850 kHz
Marking field	100 x 100, 160 x 160, 200 x 200, nebo 280 x 280 mm ¹⁾
Single line width	0,04 - 0,08 mm ²⁾
Cabin dimensions	600 (W) x 600 (H) x 530 (D) mm
Max. weight of the part	100 kg
Z axis stroke	300 mm
Power supply	115/230 VAC, 50 ÷ 60 Hz
Input	300-600 W ³⁾
Cover	IP54
Station dimensions	1150 (W) x 700 (D) x 1400 (H) mm
Station weight	180 kg
Cooling	Air surrounding temperature 15°- 35°C
Application software	WMark
Operating system	Windows 10
Certificates	Laser class I, CE mark

¹⁾ alternative or optional design

²⁾ depends on marking field size

³⁾according to laser power

Optional accessories:

Exhausting units
Automatic feeders
Rotary axes, DC and step feeds

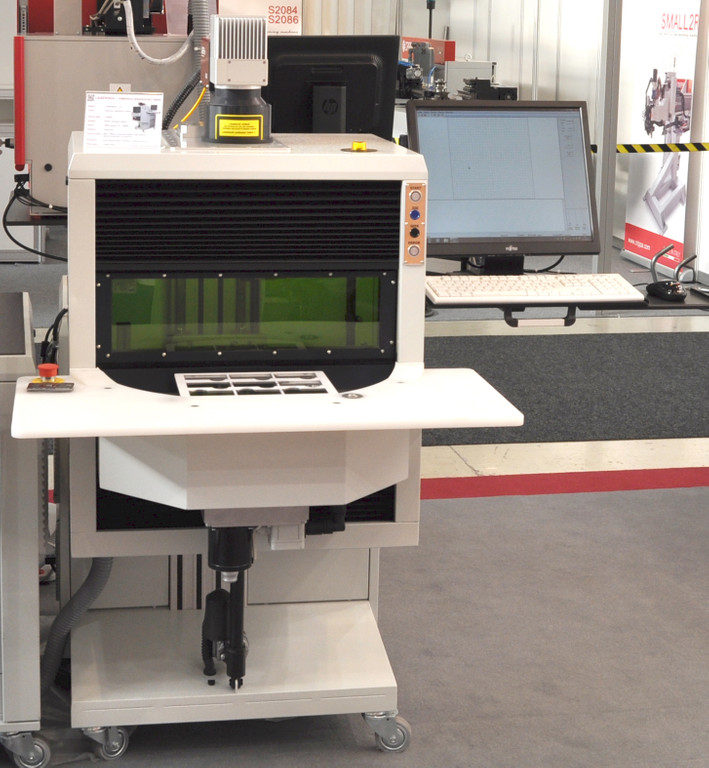

Demonstration of laser marking station type C

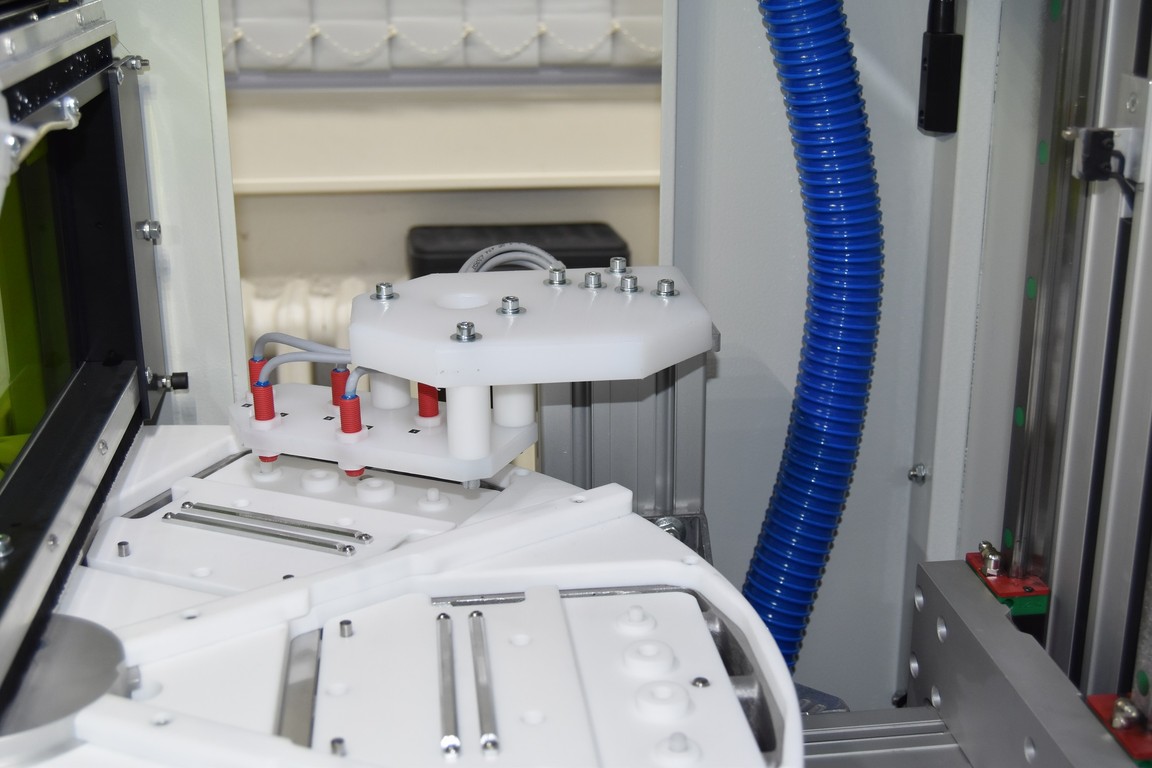

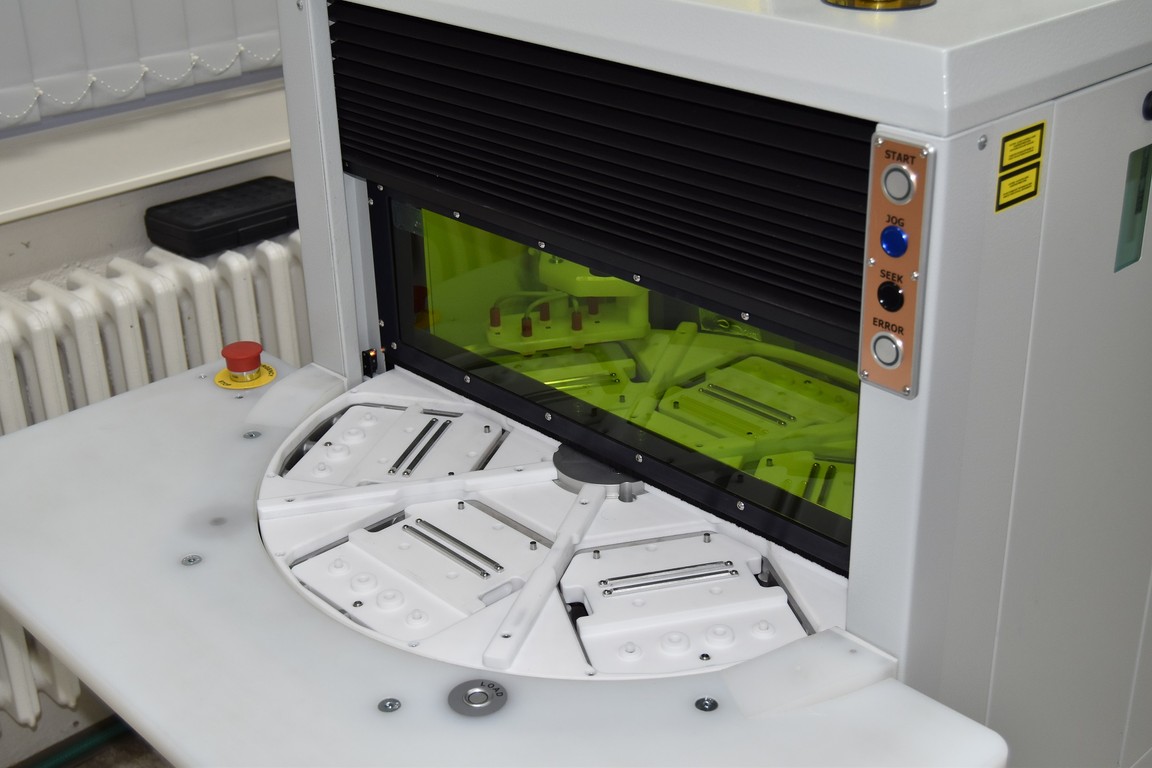

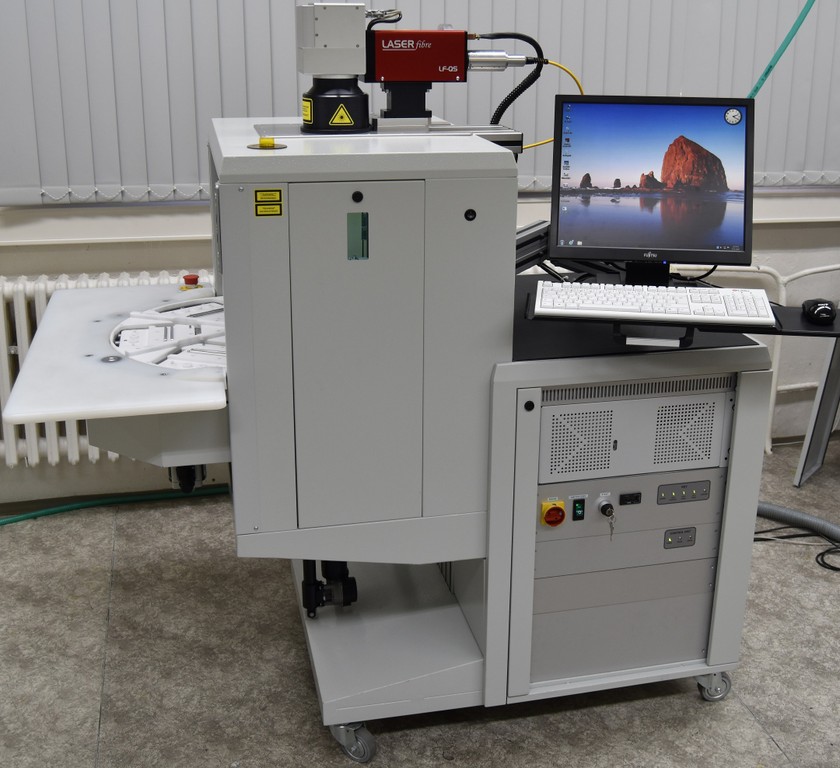

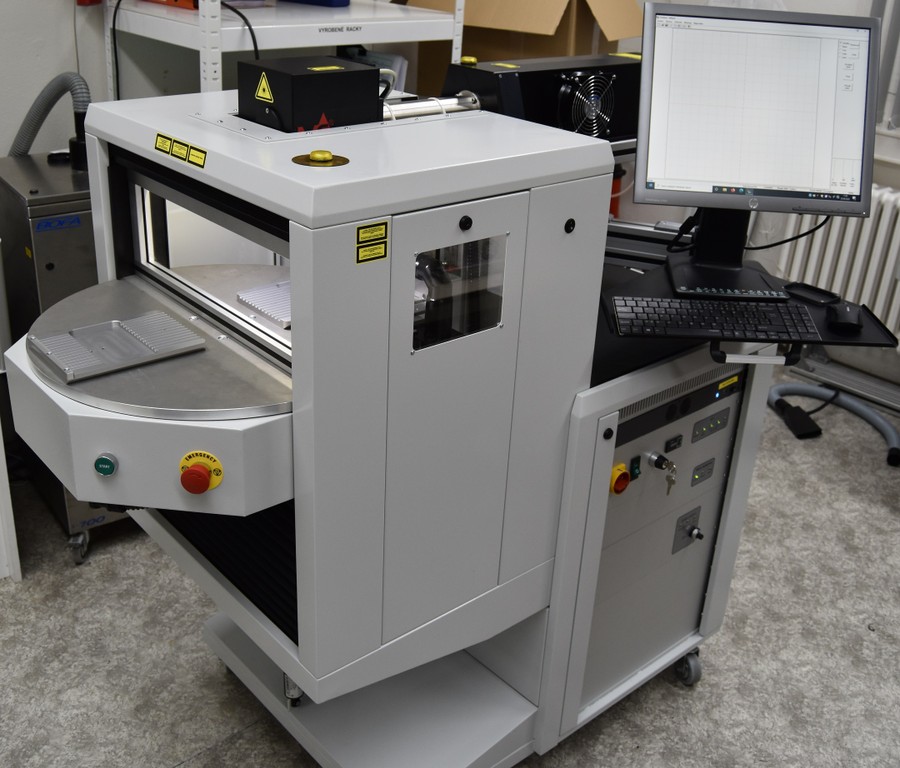

Laser marking station type C - variant with automatic rotary carousel

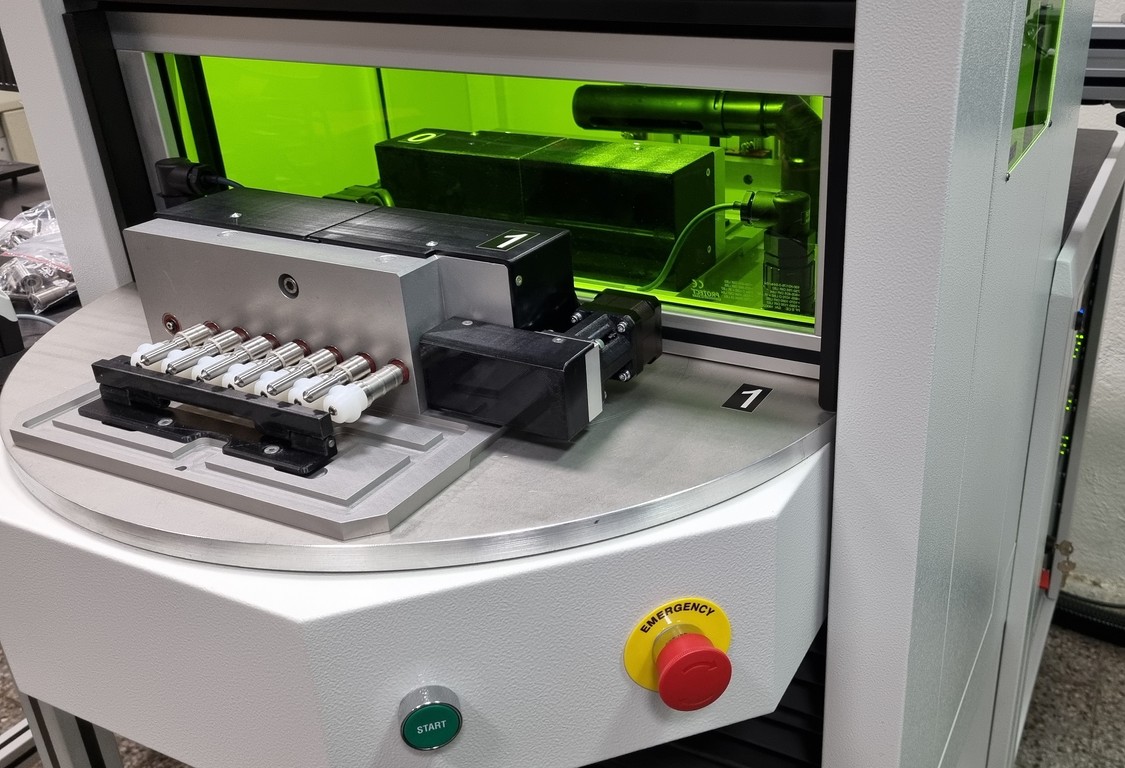

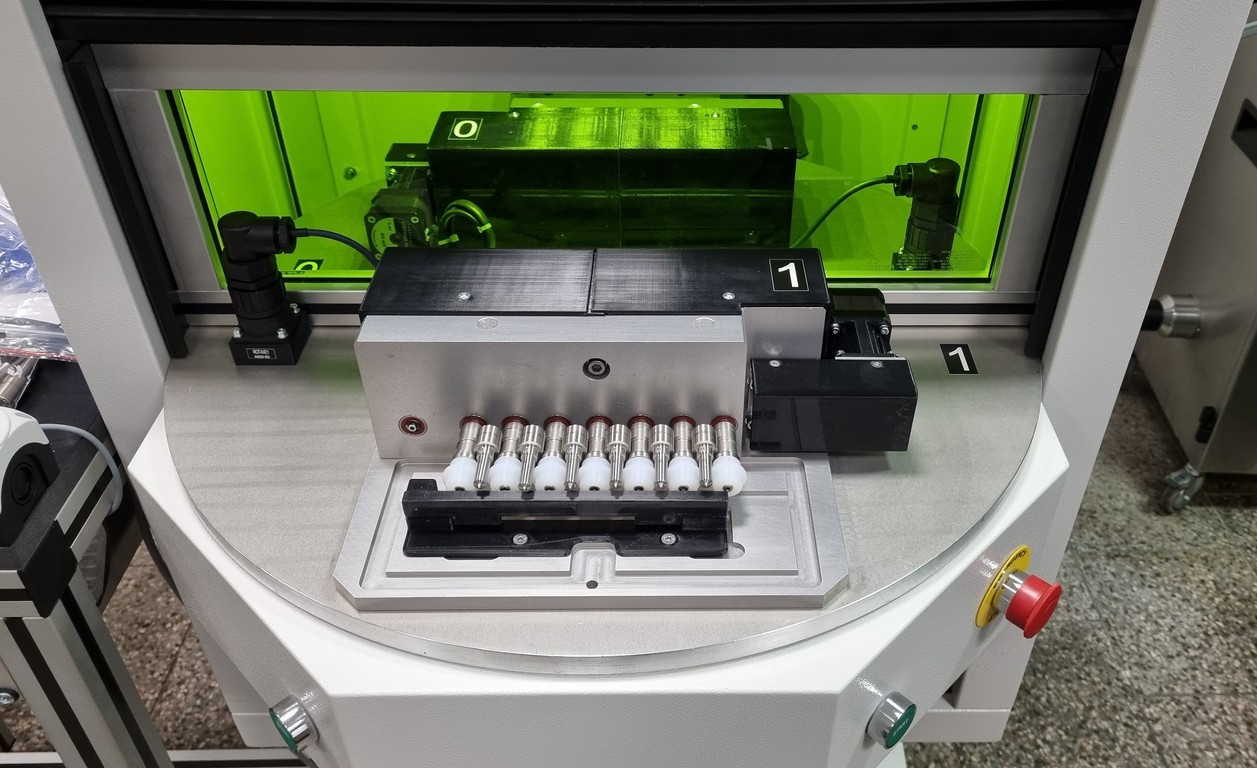

Laser marking station LFI179 with rot axis

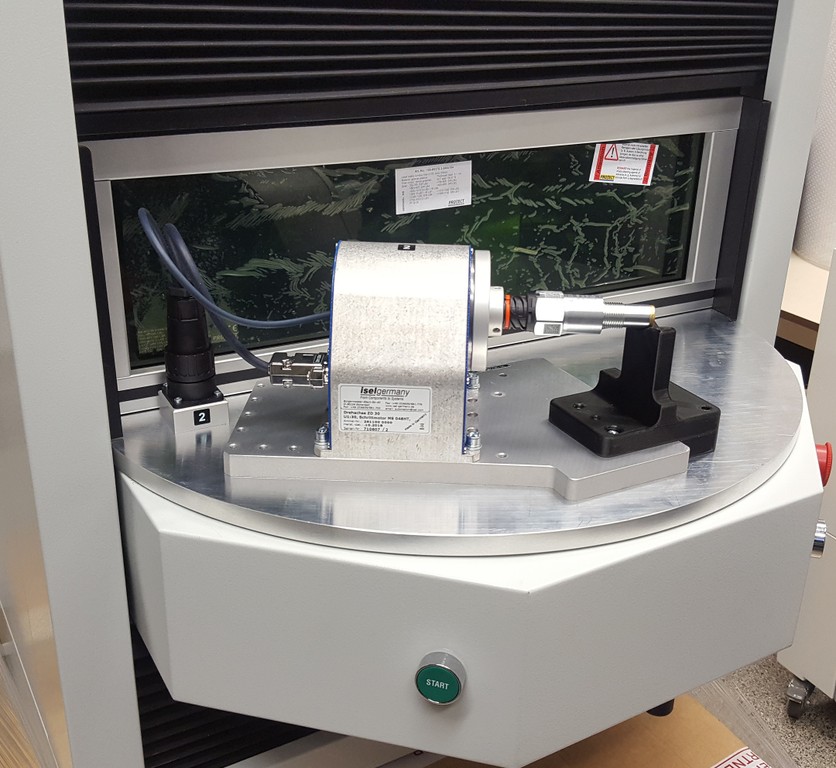

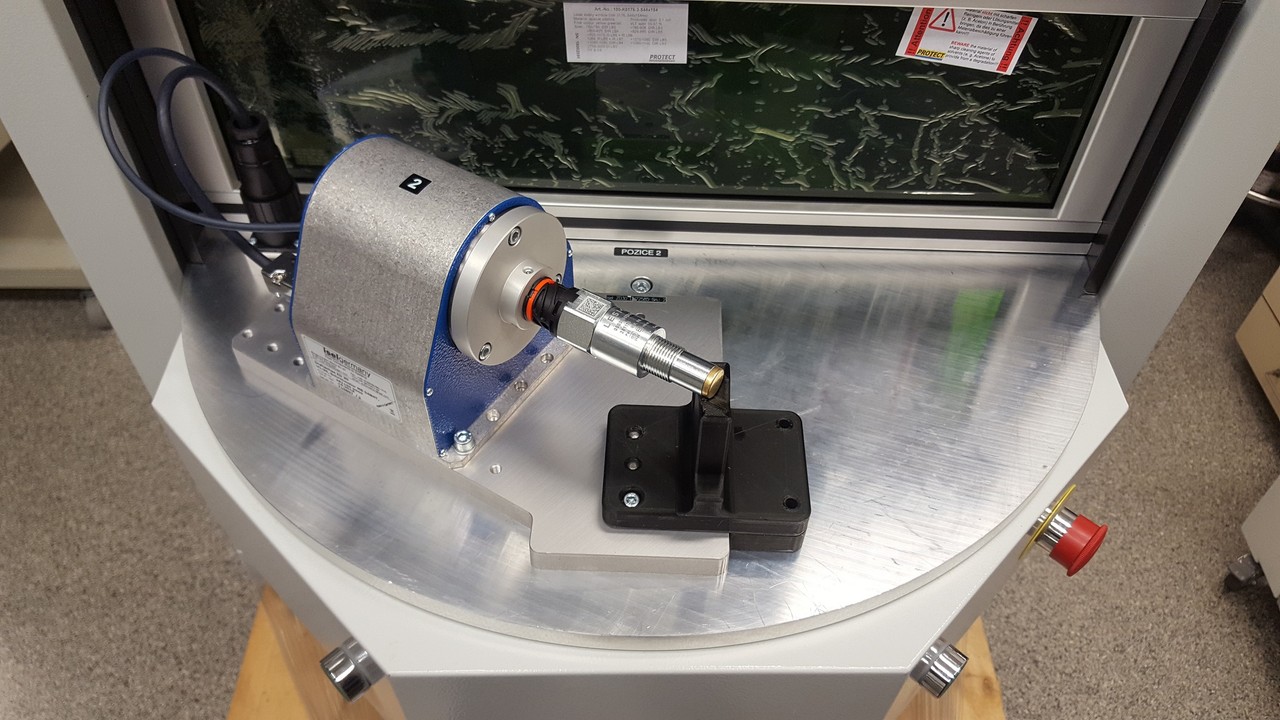

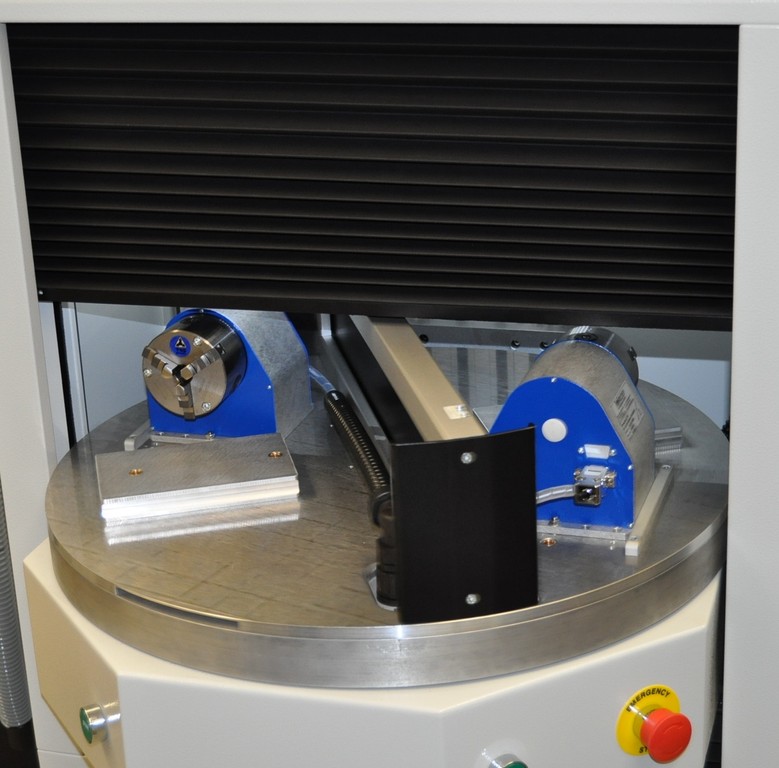

Laser marking station type LFxxC with rot axis for multiple simultaneous parts marking

File to download

LFxxC_en.pdf

Applications and accessories

Rotary axis

Rotary axis

Suitable for marking of rotating/cylindrical parts and clamping a part using a 3-jaw or 4-jaw chuck.
