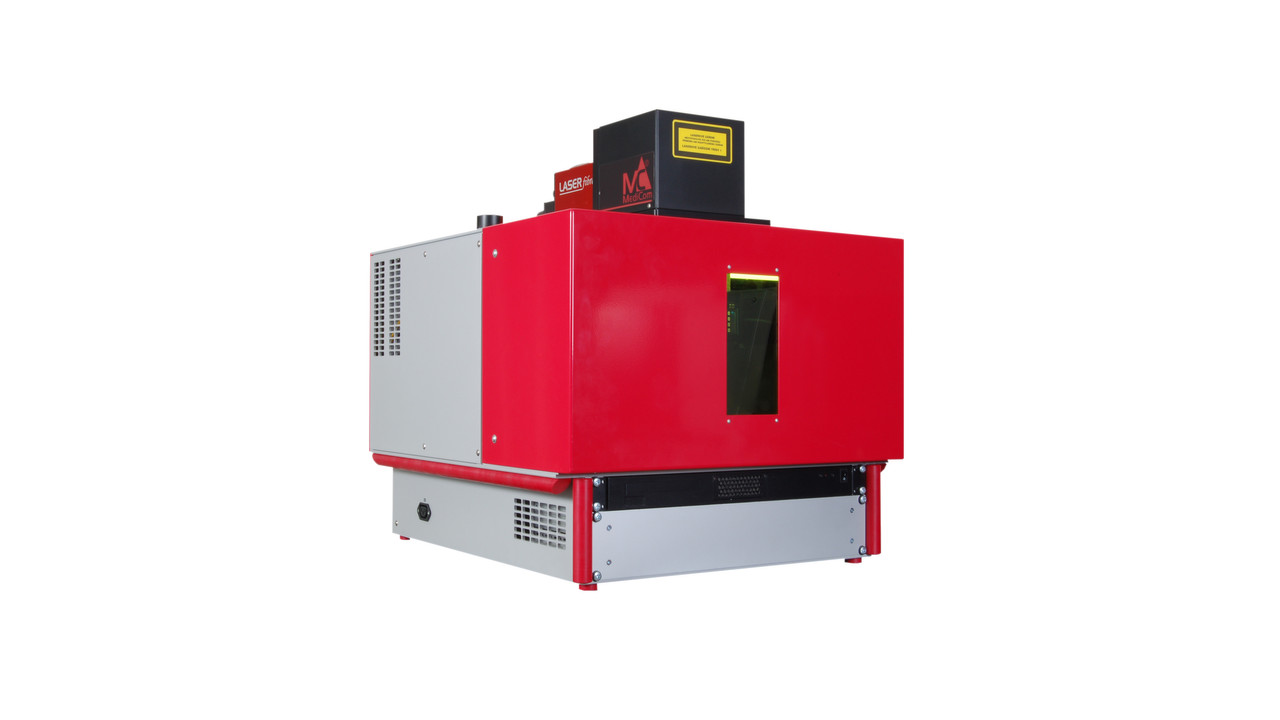

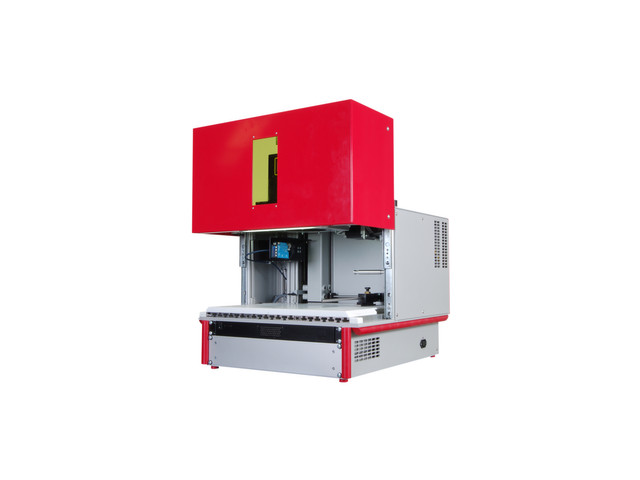

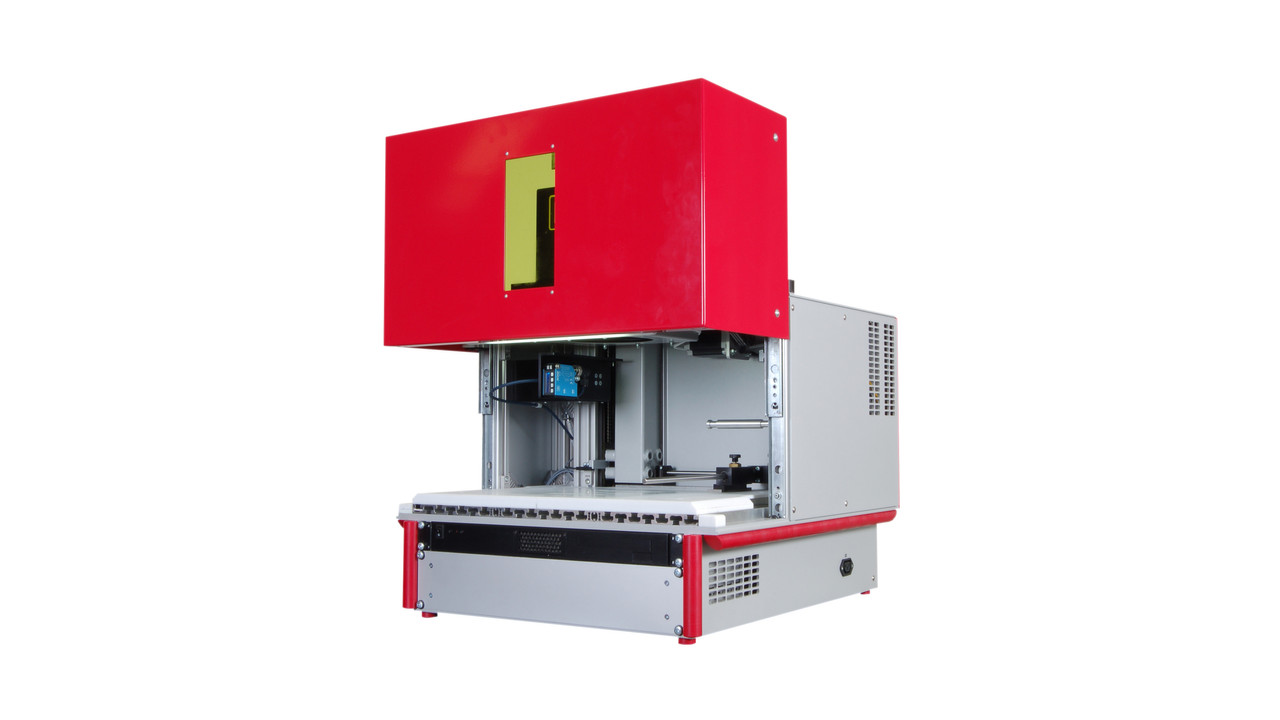

Option with automatic doors

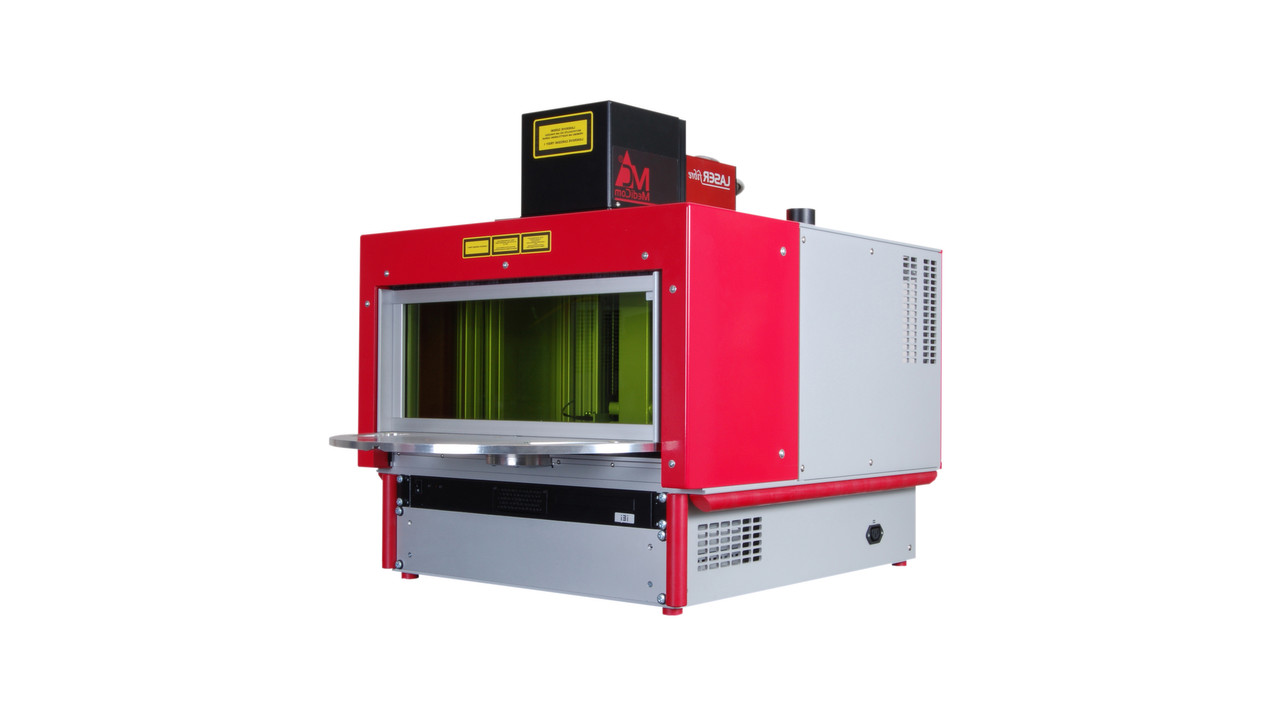

Option with manual rotating carousel

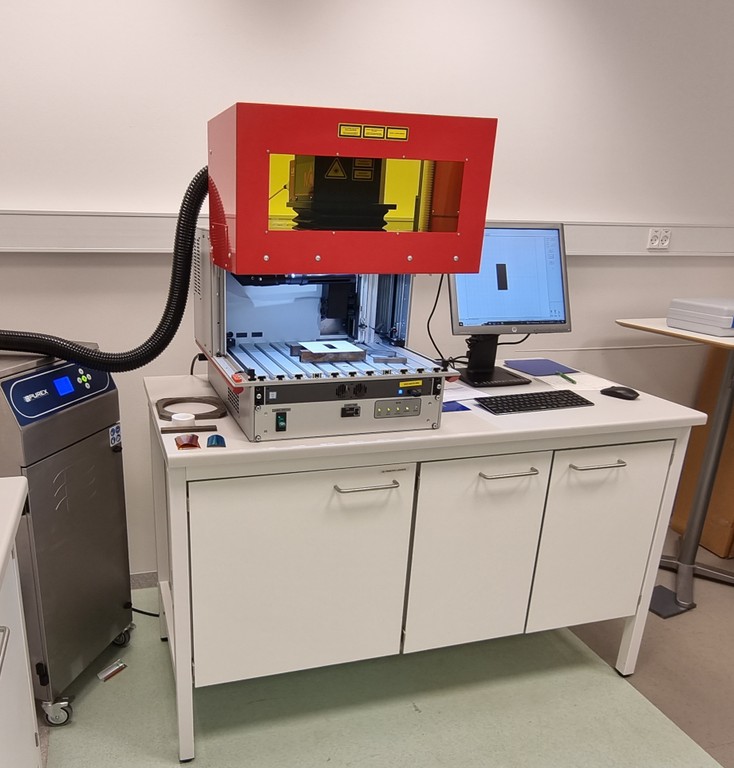

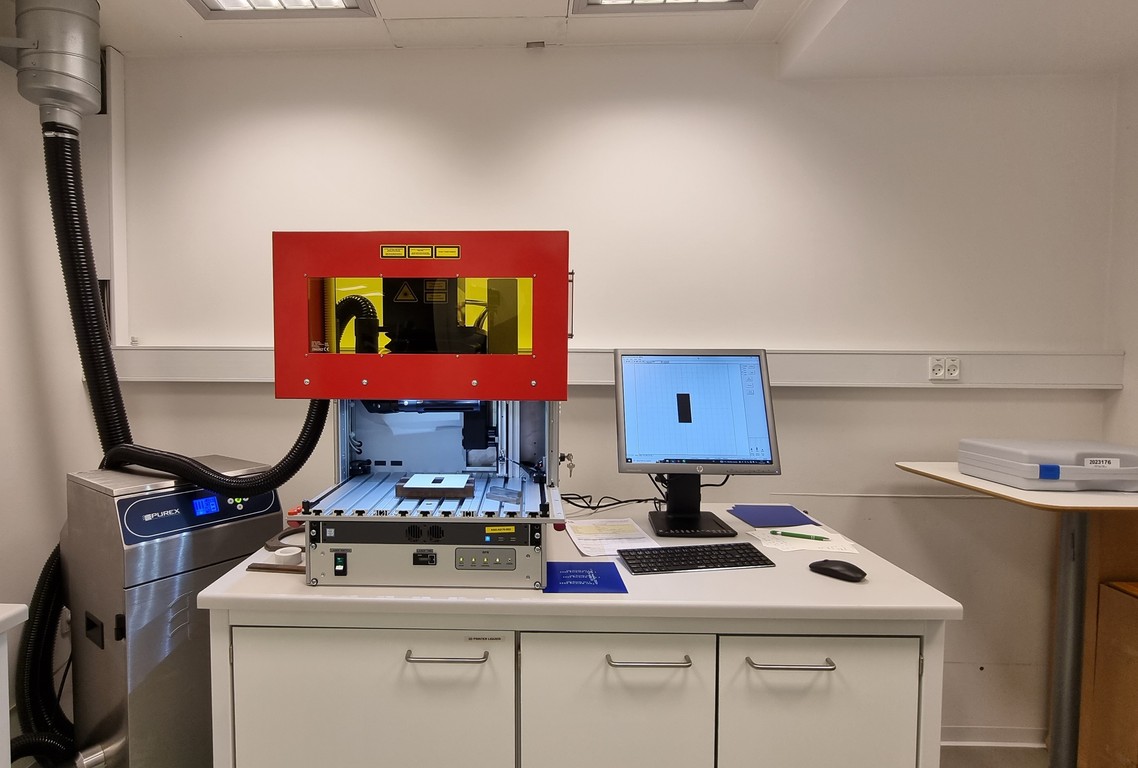

LASERfibre LF20T

Table laser marking machine with fiber laser.

Compact table laser marking station
Fiber laser in power rage from 20 W to 50 W
pulse (Q-switched) or continual (CW) laser design
Motorized linear Z-axis - laser focus
Cabin with motorized sliding doors or partition
Manual rotating carousel or base plate for parts fixing
Marking field from 100x100 mm to 250x250 mm (usually 160x160 mm)
Software - WMark - the marking control program, Windows environment, full setting of all marking parameters comprehensive set of commands and functions

Optional accessories

Exhausting units
Rotary axes, DC and step feeds

Technical parameters

Model	LFQ20T	LFQ30T	LFQ50T
Laser type	Fiber Q-switched
Laser power	20 W	30 W	50 W
Wavelength	1064 nm
Frequency	pulsed 5-200 kHz
Marking field	100 x 100, 160 x 160 nebo 250 x 250 mm ¹⁾
Single line width	0,04 - 0,08 mm ²⁾
Cabin dimensions	520 ( W ) x 305 ( H ) x 390 ( D ) mm
Max. weight of the part	50 kg
Z-axis	200 mm
Power supply	115/230 VAC, 50 ÷ 60 Hz
Input	400 W ³⁾
Cover	IP54
Station dimensions	600 ( W ) x 550 ( D ) x 630 (H) mm
Station weight	45 kg
Cooling	Air surrounding temperature 15°- 35°C
Software	WMark
Operating system	Windows 10
Certificates	Laser class I, CE mark

¹⁾ alternative or optional design
²⁾ depends on marking field size

³⁾according to laser power

Optional accessories:

Exhausting units
Rotary axes, DC and step feeds

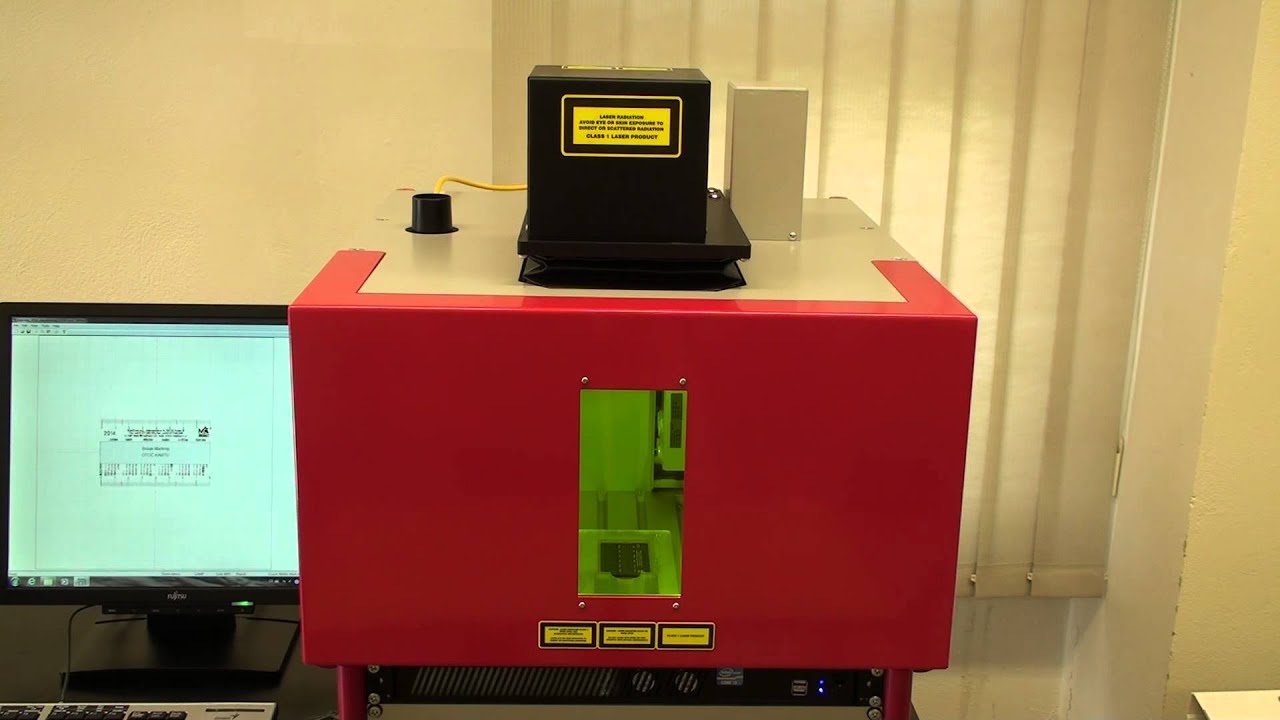

Demonstration of laser marking station type T with automatic doors

LF20T automatic door

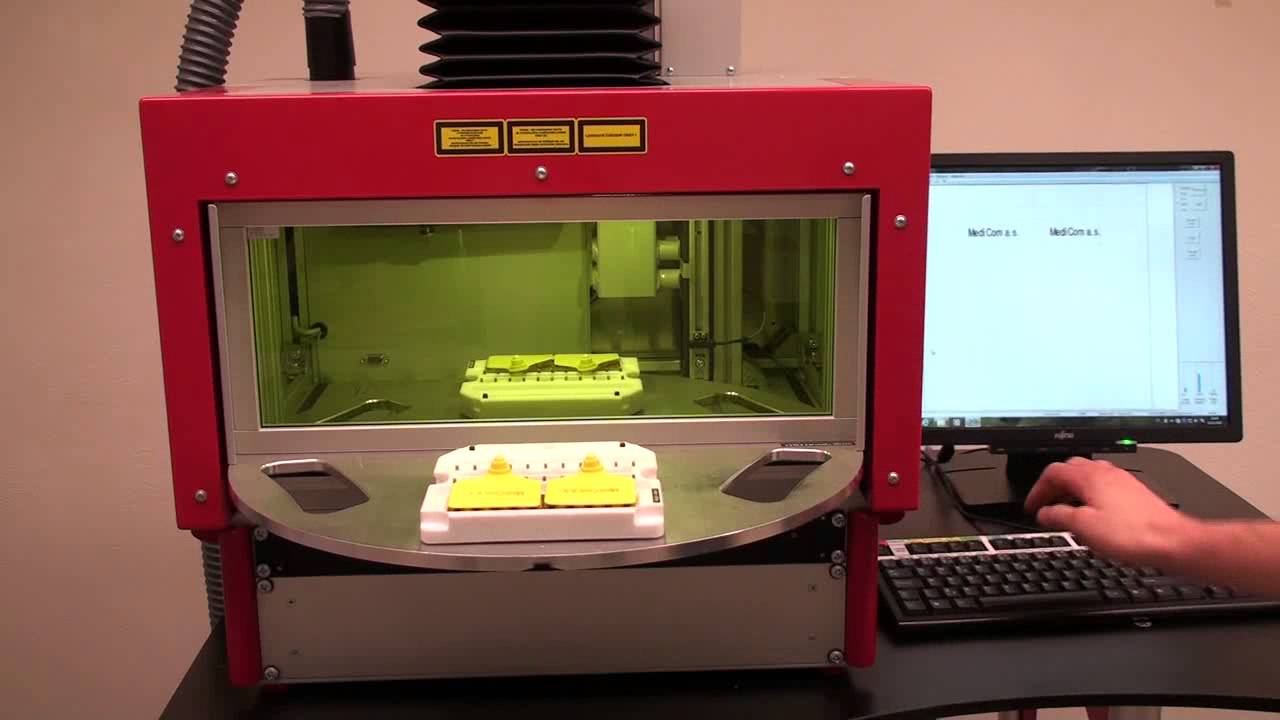

Demonstration of laser marking station type T with manual rotary carousel

LF20T carousel

File to download

LFxxT_en.pdf
