LASERfibre LF50XL with Doors

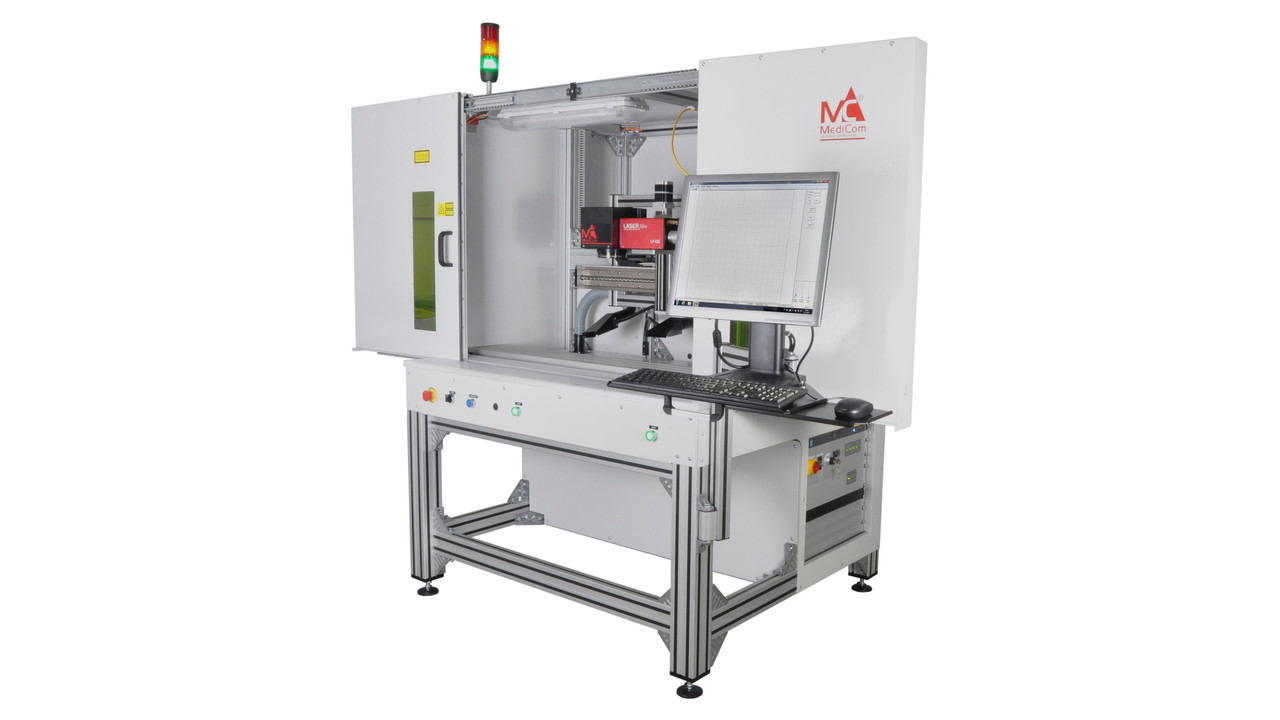

Laser marking station with sliding doors and fiber laser

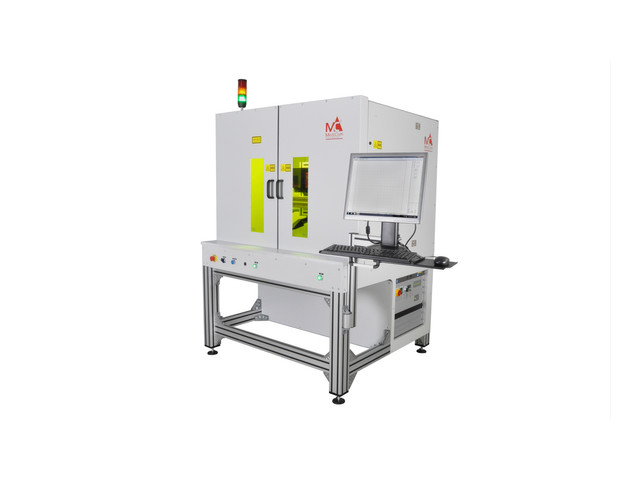

Industrial laser marking station XL
Possible laser sources - fiber LF, vanadate LV or CO2 LM
Ytterbium fiber laser with power from 20W to 100W diode pumped (applies to LF)
Pulse (Q-switched) or continual (CW) laser design (applies to LF)
Large space for parts insertion, marking of large parts with length up to 1m

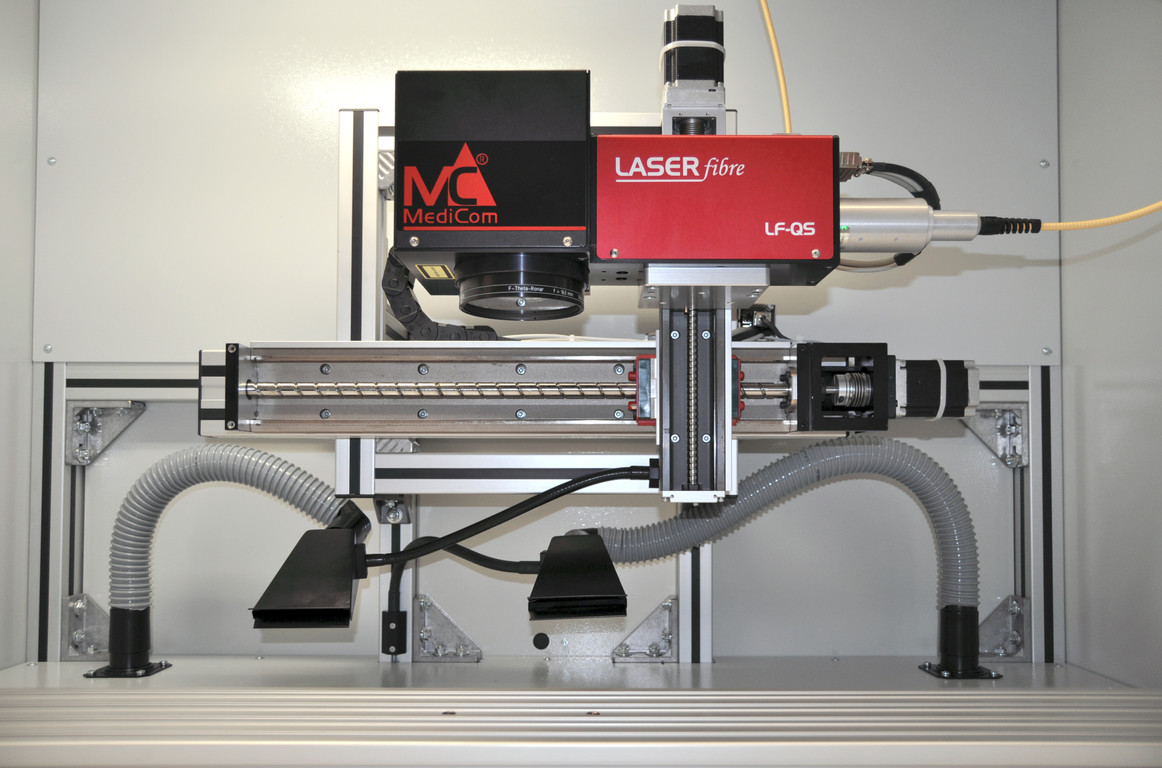

Motorized vertical Z axis - laser focus
Motorized horizontal X axis for large surfaces marking
Large marking field from 160x160 mm to 280x280 mm
Software - WMark - the marking control program, Windows environment, full setting of all marking parameters comprehensive set of commands and functions

Optional accessories:

Exhausting units
Automatic feeders
Rotary axes, DC and step feeds

Technical parameters

Model	LFQ20XL	LFQ30XL	LFQ50XL	LFQ100XL
Laser type	Fiber Q-switched
Laser power	20 W	30 W	50 W	100 W
Wavelength	1064 nm
Frequency	Q pulsed 5-200 kHz MOPA pulsed CW-850 kHz
Marking field	100 x 100, 160 x 160, 200 x 200, or 280 x 280 mm ¹⁾
Single line width	0,04 - 0,08 mm ²⁾
Max. part size	1000 (W) x 370³⁾ (H) x 400 (D) mm
Max. weight of the part	100 kg
Z axis stroke	200 mm
X axis stroke	400 mm
Power supply	100-240 V, 50/60 Hz
Input	300-600 W ⁴⁾
Cover	IP54
Station dimensions	1400 (W) x 1870 (H) x 1280 (D) mm
Station weight	450 kg
Cooling	Air surrounding temperature 15°- 35°C
Application software	WMark
Operating system	Windows 10
Certificates	Laser class I, CE mark

¹⁾ alternative or optional design

²⁾ depends on marking field size

³⁾ according to f-theta lens focal length

⁴⁾ according to laser power

Optional accessories:

Exhausting units
Automatic feeders
Rotary axes, DC and step feeds

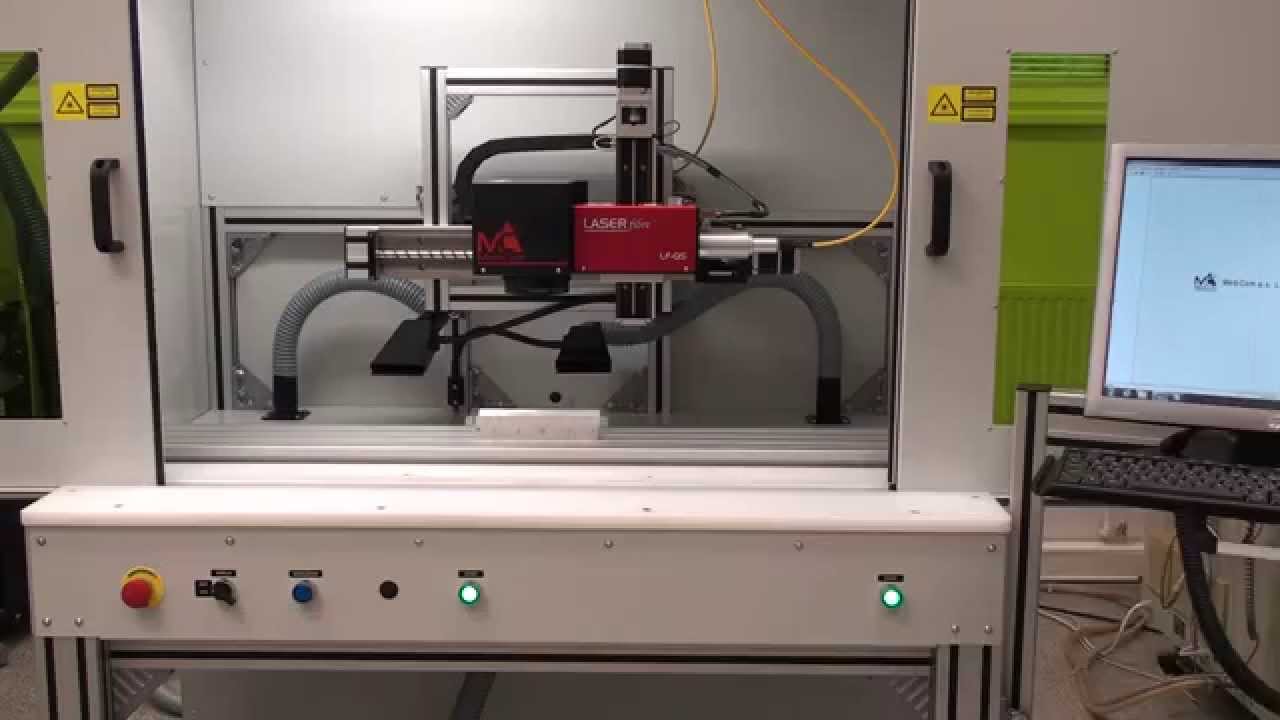

Demonstration of laser marking station type XL with doors

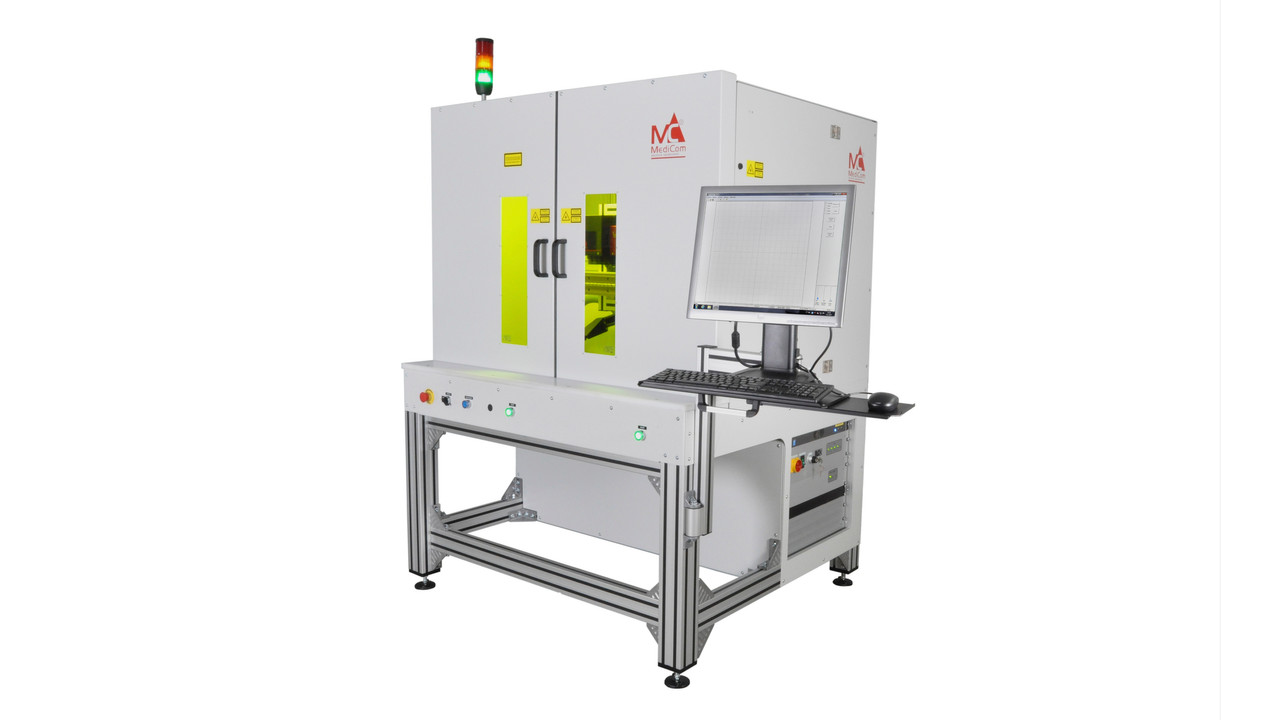

Laser marking station type XL with sliding doors

File to download

LFxxXL_Doors_en.pdf
