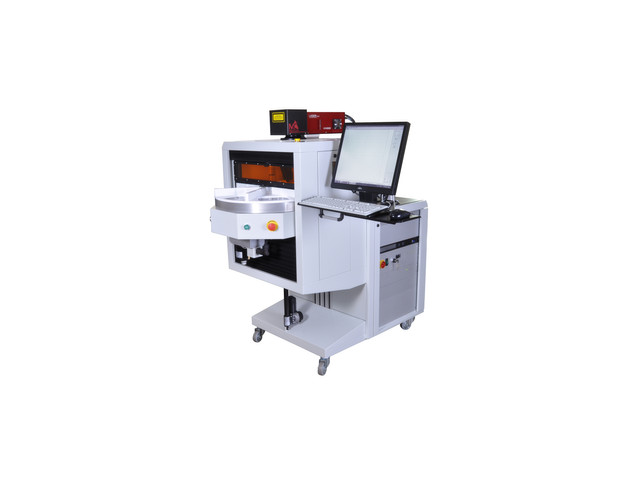

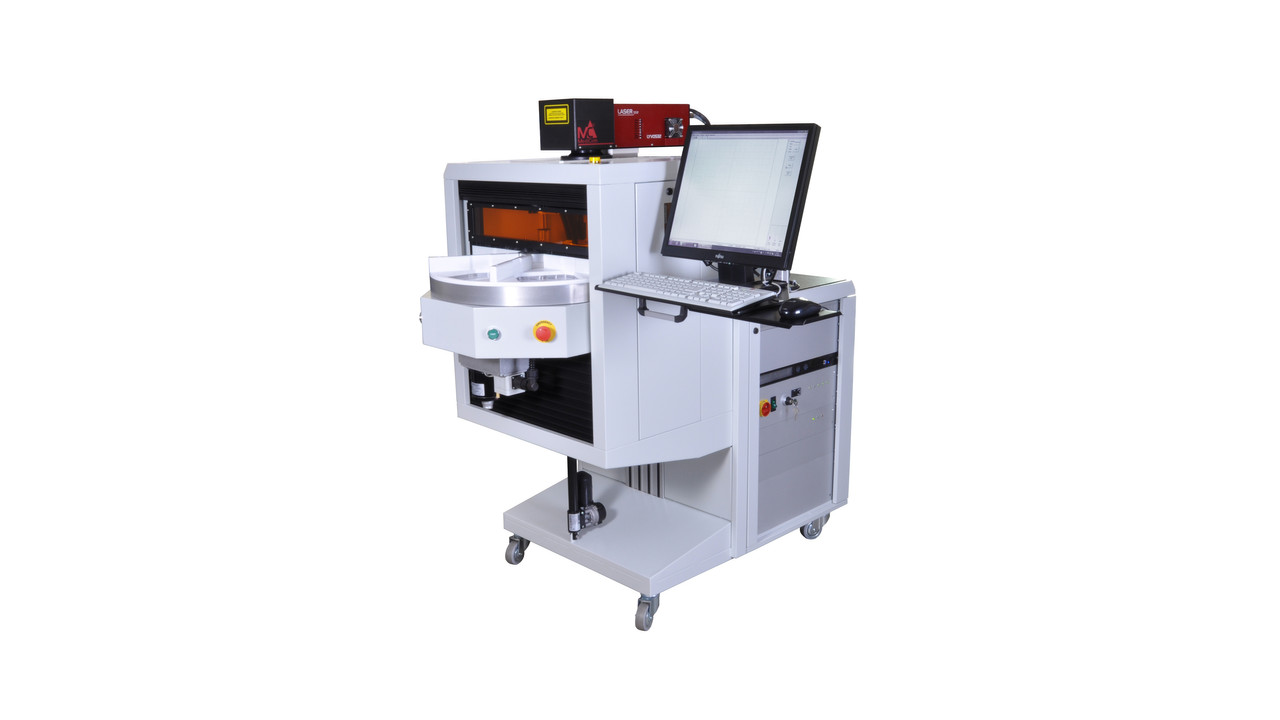

LASERyvo LYVO532C
Laser marking machine with vanadate laser- Industrial laser marking station
- Laser working in visible green spectrum region with wavelength of 532 nm which originates as second harmonic of 1064 nm wavelength
- Vanadate air cooled laser Nd:YVO4 with wavelength of 532 nm
- Motorized linear Z-axis - laser focus

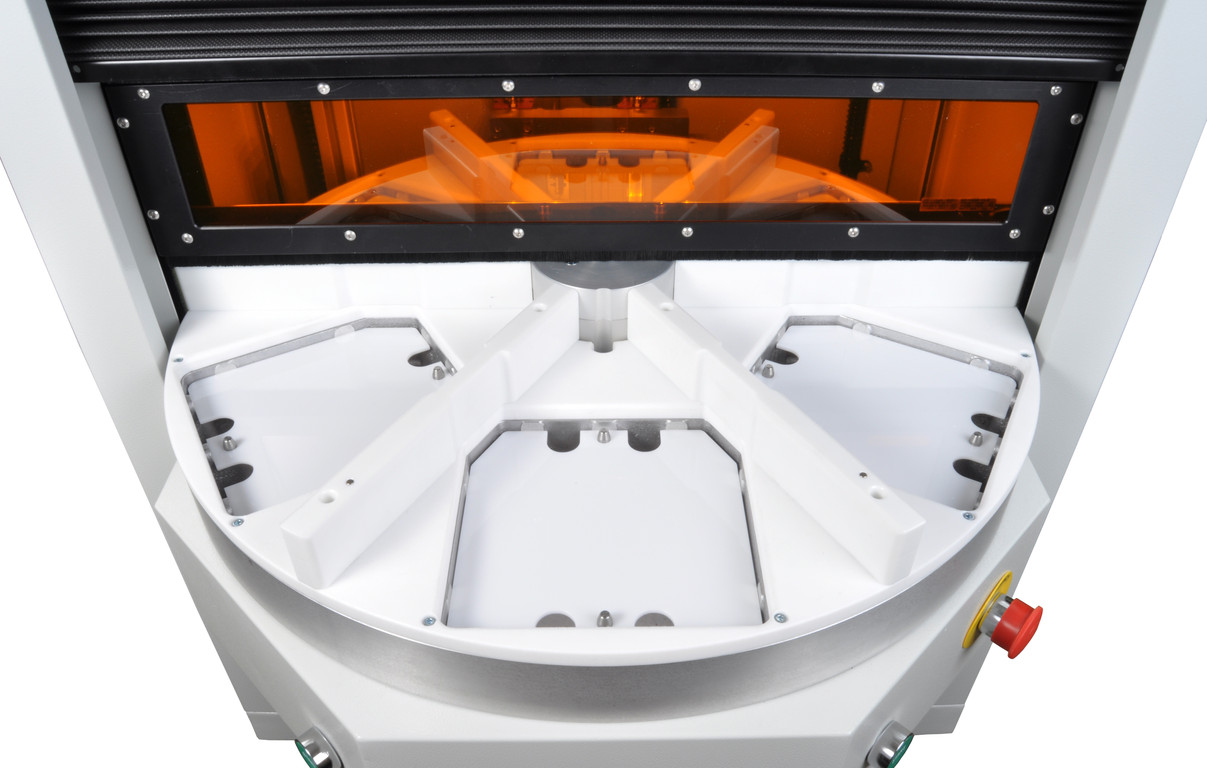

- Station design with automatic rotary carousel or sliding table
- Marking field from 100x100 mm to 250x250 mm (usually 160x160 mm)
- Software - WMark - the marking control program, Windows environment, full setting of all marking parameters comprehensive set of commands and functions
Optional accessories:
- Exhausting units
- Automatic feeders
- Rotary axes, DC and step feeds
Technical parameters
Model | LYVO532-C |
Laser type | Nd:YVO4 |
Laser power | 5 W |
Wavelength | 532 nm |
Frequency | 10-100 kHz programmable |
Marking field | 150 x 150 mm (100 x 100, 250 x 250 mm)1) |
Single line width | typically 0,035 mm (0,02-0,06 depends on configuration) 2) |
Cabin dimensions | 600 (W) x 600 (H) x 530 (D) mm |
Max. weight of the part | 100 kg |
Z axis stroke | 300 mm |
Power supply | 230 V, 50 Hz |
Input | 600 W |
Cover | IP54 |
Station dimensions | 1150 (W) x 700 (D) x 1400 (H) mm |
Station weight | 260 kg |
Cooling | Air surrounding temperature 15°- 35°C |
Application software | WMark |
Operating system | Windows 10 |
Certificates | Laser class I, CE mark |
1) alternative or optional design
2) depends on marking field size
Optional accessories:
Exhausting units
Automatic feeders
Rotary axes, DC and step feeds
