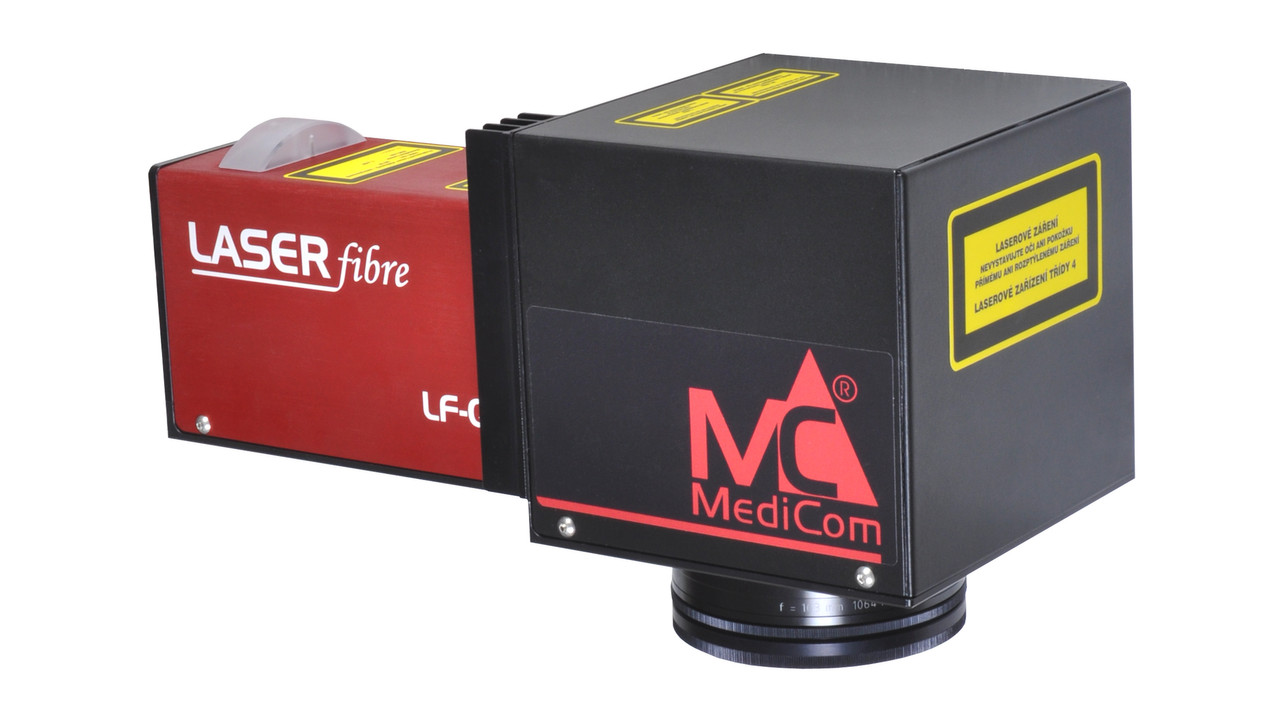

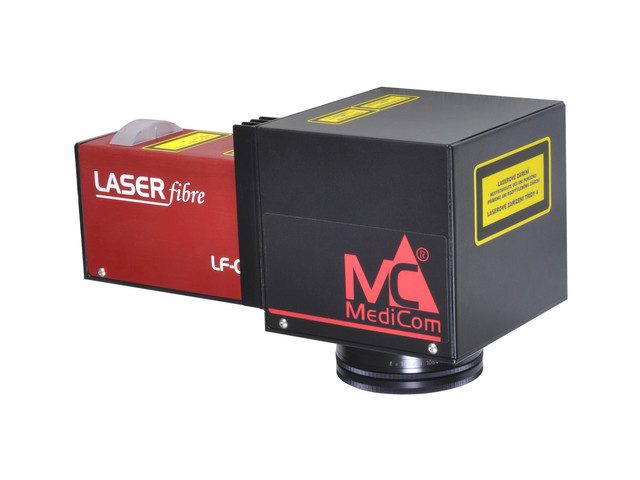

LASERfibre LF20S
Marking fiber laser- Fiber laser in power rage from 20 W to 100 W
- Marking field from 100x100 mm to 280x280 mm according to specific application
- Laser scanning head is turnable in the laser axis - possibility of marking plane tilting
- Compact dimensions of the laser facilitate its further integration
- Increased resistance to vibrations, dust intrusion and aerosols, maintenance free operation
- Software - WMark - the marking control program, Windows environment, full setting of all marking parameters comprehensive set of commands and functions
- Possibility of control by higher system - autonomous operation without display and keyboard
Technical parameters
| Model | LFQ20S | LFQ30S | LFQ50S | LFQ100S | ||
Laser type | Fiber Q-switched | |||||
Laser power | 20 W | 30 W | 50 W | 100 W | ||
Wavelength | 1064 nm | |||||
Frequency | Q pulsed 5 - 200 kHz MOPA pulsed CW - 850 kHz | |||||
Marking field | 100 x 100, 160 x 160 or 280 x 280 mm | |||||
Single line width | 0,04 - 0,08 mm 1) | |||||
| Laser head dimensions | 430 (D) x 80 (W) x 120 (H) mm | |||||
| Head weight | 10 kg | |||||
Power supply | 110/230 VAC, 50 ÷ 60 Hz | |||||
Input | 300 - 600 W 2) | |||||
Cover | IP44 | |||||

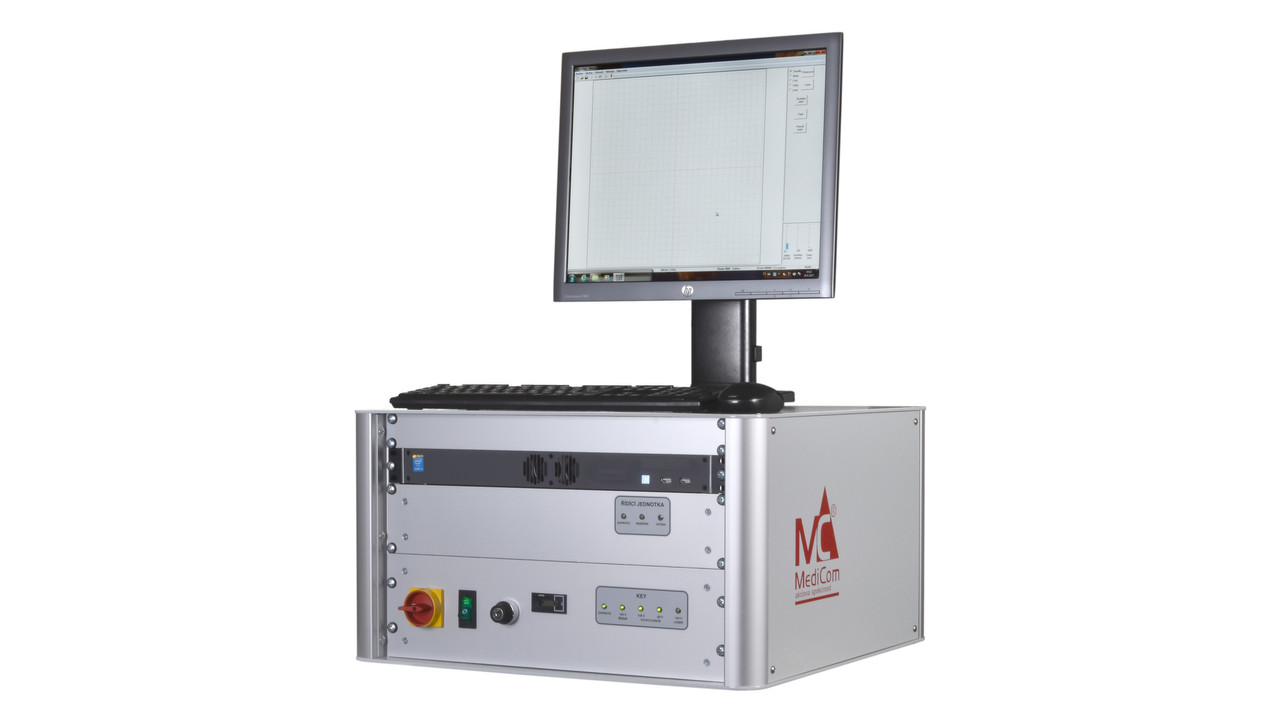

Dimensions of cabinet with control electronic | 577 (W) x 453 (D) x 577 (H) mm | |||||
Weight of cabinet with control electronic | 43 kg | |||||
Cooling | Air surrounding temperature 15°- 35°C | |||||
Application software | WMark | |||||
Operating system | Windows 10 | |||||
Certificates | Laser class IV, CE mark | |||||
1) depends on marking field size
2) according to laser power
Optional accessories:
- Exhausting units
- Automatic feeders
- Rotary axes, DC and step feeds
