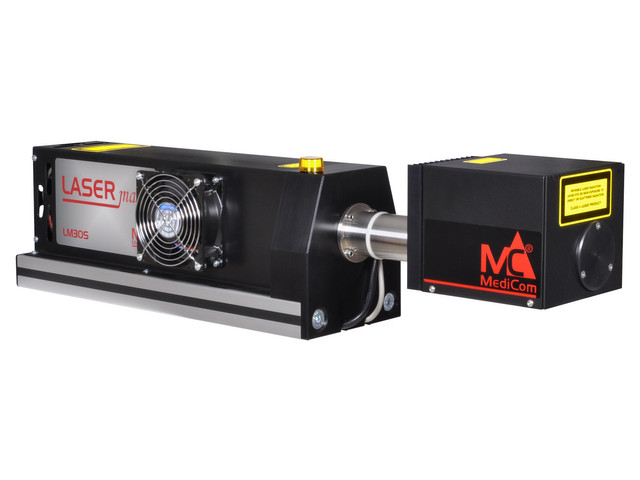

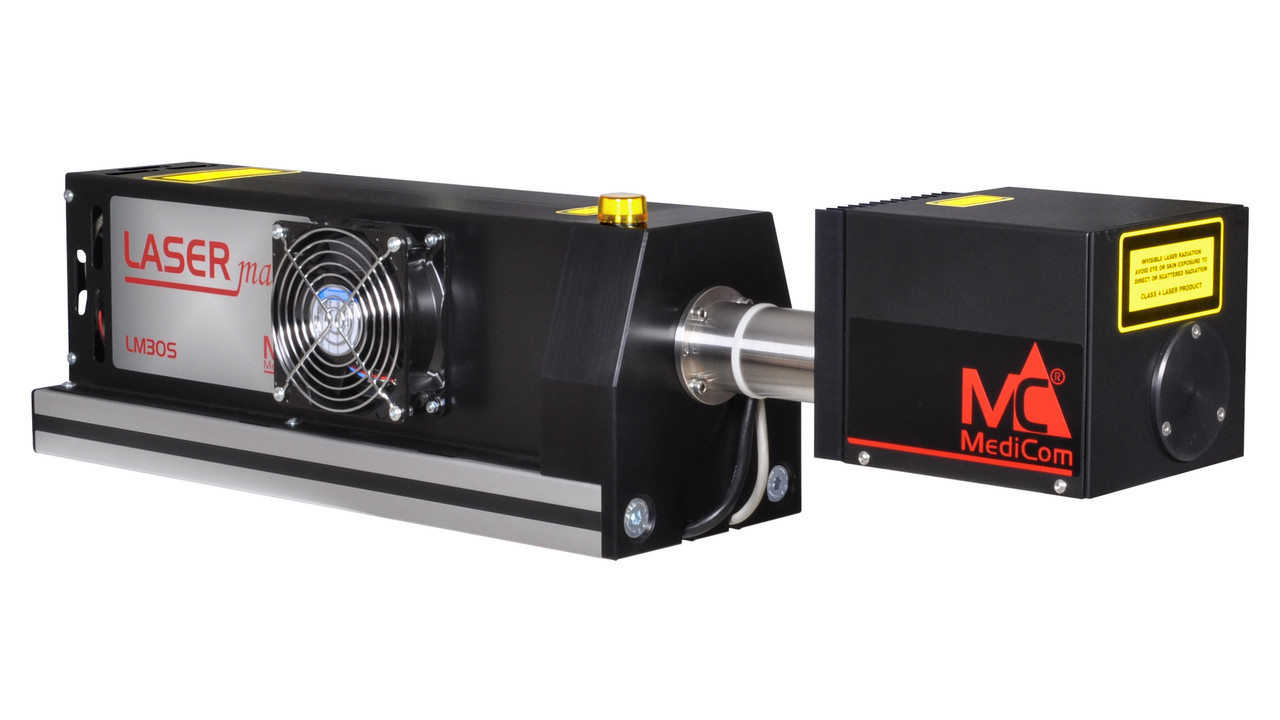

LASERmark LM30S

Marking CO2 laser

Lasers in power variants from 30 to 100W
Variable marking field size according to the specific application from 60x60mm to 160x160mm
OEM laser head design for further integration
Laser scanning head is turnable in the laser axis
Lasers with power up to 40W are air cooled and power variants from 60W are water cooled
Suitable for marking and engraving of organic materials and plastics
In some cases, can be used for cutting

Technical parameters

Model	LM30S	LM40S	LM60S	LM100S
Laser type	CO₂ 30W	CO₂ 40W	CO₂ 60W	CO₂ 100W
Wavelength	10 600 nm
Frequency	CW, 5 kHz width modulation of power
Marking field	60 x 60, 90 x 90, 120 x 120 or 160 x 160 mm
Single line width	0,1 - 0,35 mm ¹⁾
Laser head dimensions	537 (D) x 200 (W) x 190 (H) mm
Laser head wight	24 kg
Power supply	110/230 VAC, 50 ÷ 60 Hz
Input	700 ÷ 1800 W ²⁾
Cover	IP54 head, IP20 cabinet

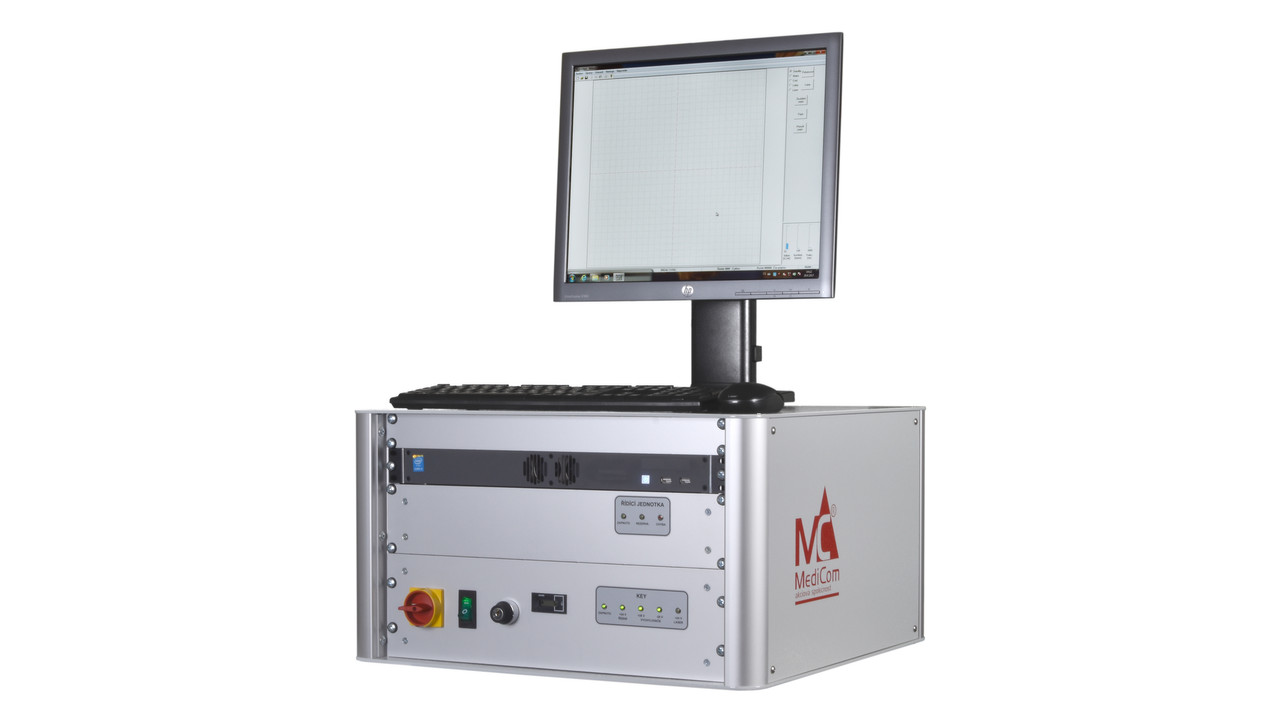

Dimensions of cabinet with control electronic	577 (W) x 577 (D) x 318 (H) mm
Weight of cabinet with control electronic	41 kg
Cooling	Air, Water - Air ³⁾ surrounding temperature 15°- 35°C
Application software	WMark - marking control program
Operating system	Windows 10
Certificates	Laser class IV, CE mark

¹⁾ depends on marking field size

²⁾ according to laser power and cooling type

³⁾ up to 40W air cooled, from 60W water-air cooled

Optional accessories:

Exhausting units
Automatic feeders
Rotary axes, DC and step feeds
External cooling units

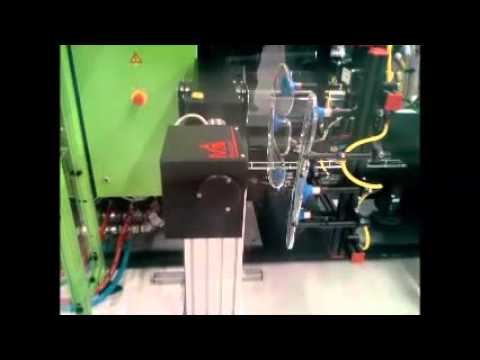

Laser LM30S implementation demonstration

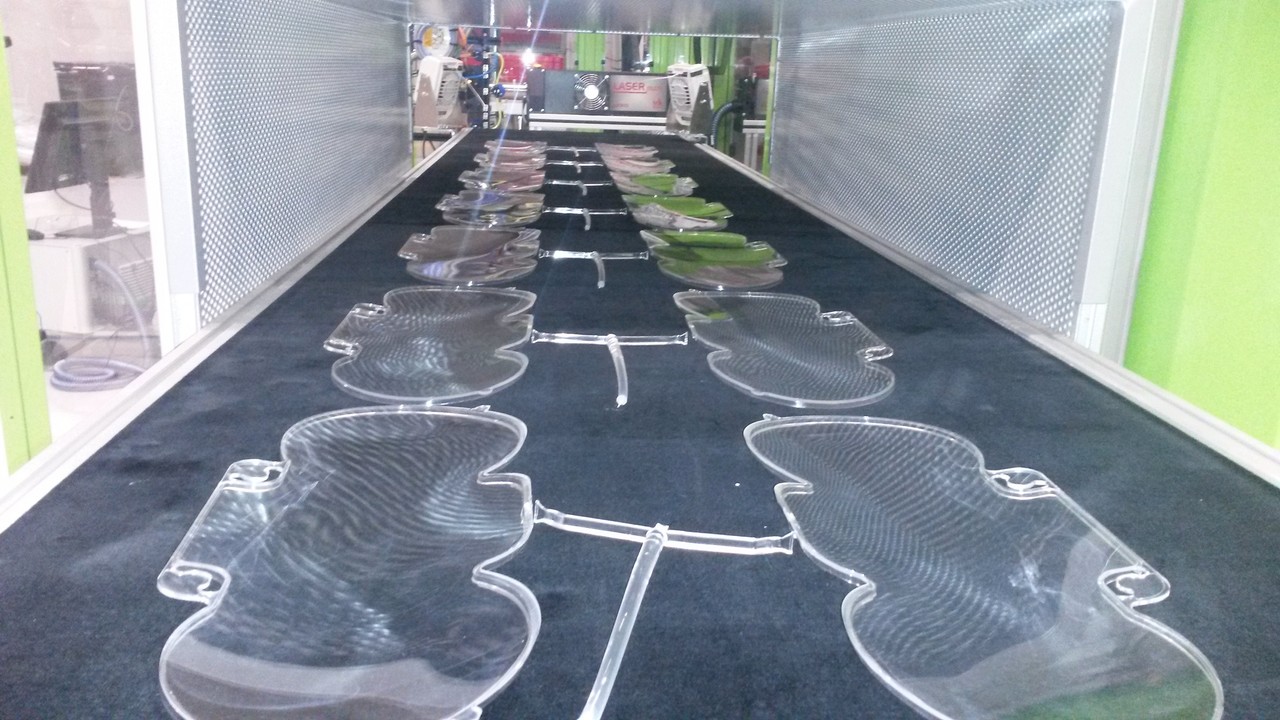

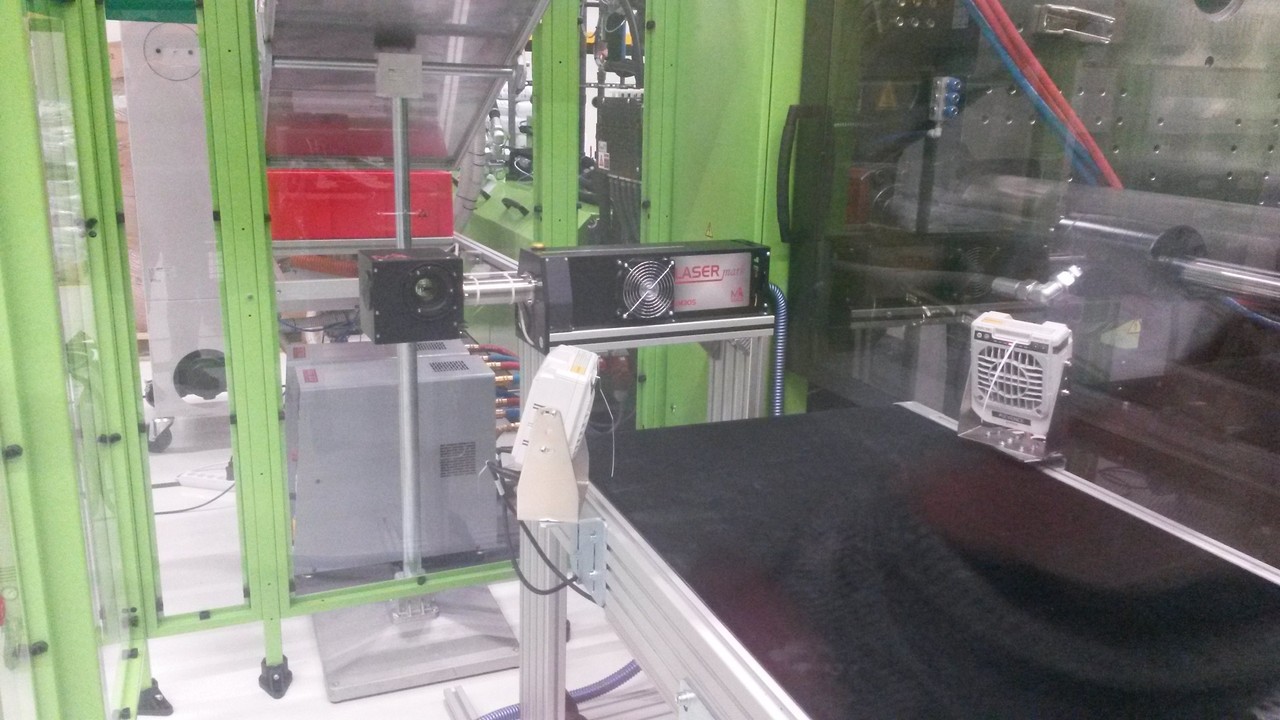

Implementation of LM30S laser for cutting of molding inlet system

File to download

LMxxS_en.pdf

Applications and accessories

Rotary axis

Rotary axis

Suitable for marking of rotating/cylindrical parts and clamping a part using a 3-jaw or 4-jaw chuck.

Laser marking of advertising items

Laser marking of anodized materials
