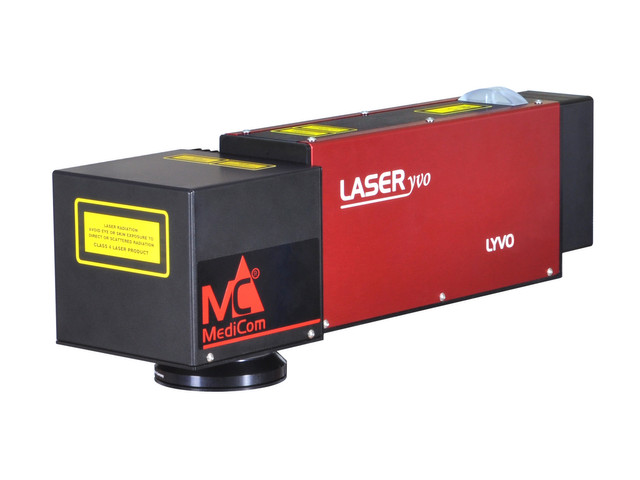

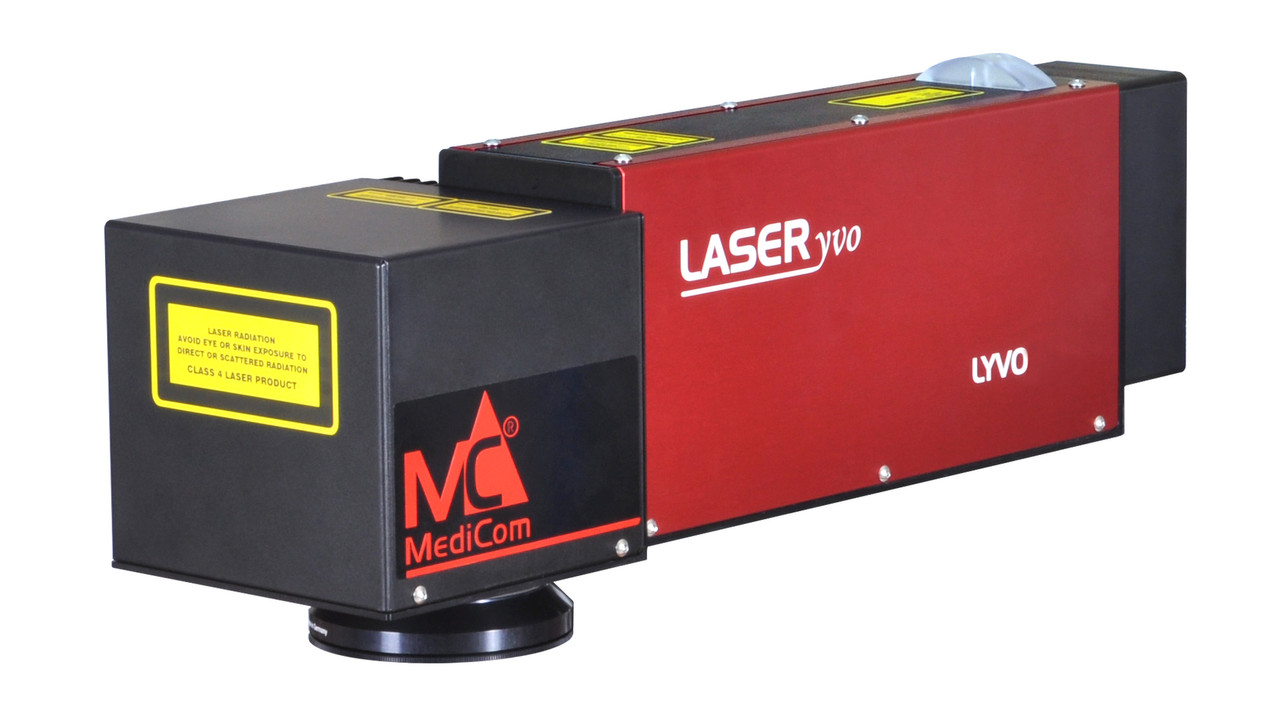

LASERyvo LV20S

Marking vanadate Nd:YVO4 laser with wavelength of 1064 nm

Vanadate Nd:YVO₄ laser with power of 20W
Marking field from 100x100 mm to 280x280 mm according to specific application
Laser scanning head is turnable in the laser axis - possibility of marking plane tilting
Compact dimensions of the laser facilitate its further integration
Increased resistance to vibrations, dust intrusion and aerosols, maintenance free operation
Software - WMark - the marking control program, Windows environment, full setting of all marking parameters comprehensive set of commands and functions
Possibility of control by higher system - autonomous operation without display and keyboard

Technical parameters

Model	LV20S
Laser type	Nd:YVO₄
Laser power	20 W
Wavelength	1064 nm
Frequency	20 - 100 kHz programmable
Marking field	160 x 160 mm (100 x 100, 280 x 280 mm)
Single line width	typically 0,035 mm (0,02 - 0,06 depends on configuration) ¹⁾
Laser head dimensions	410 (D) x 170 (H) x 130 (W) mm
Laser head wight	15 kg
Power supply	230 V, 50 Hz
Input	600 W ²⁾
Cover	IP54

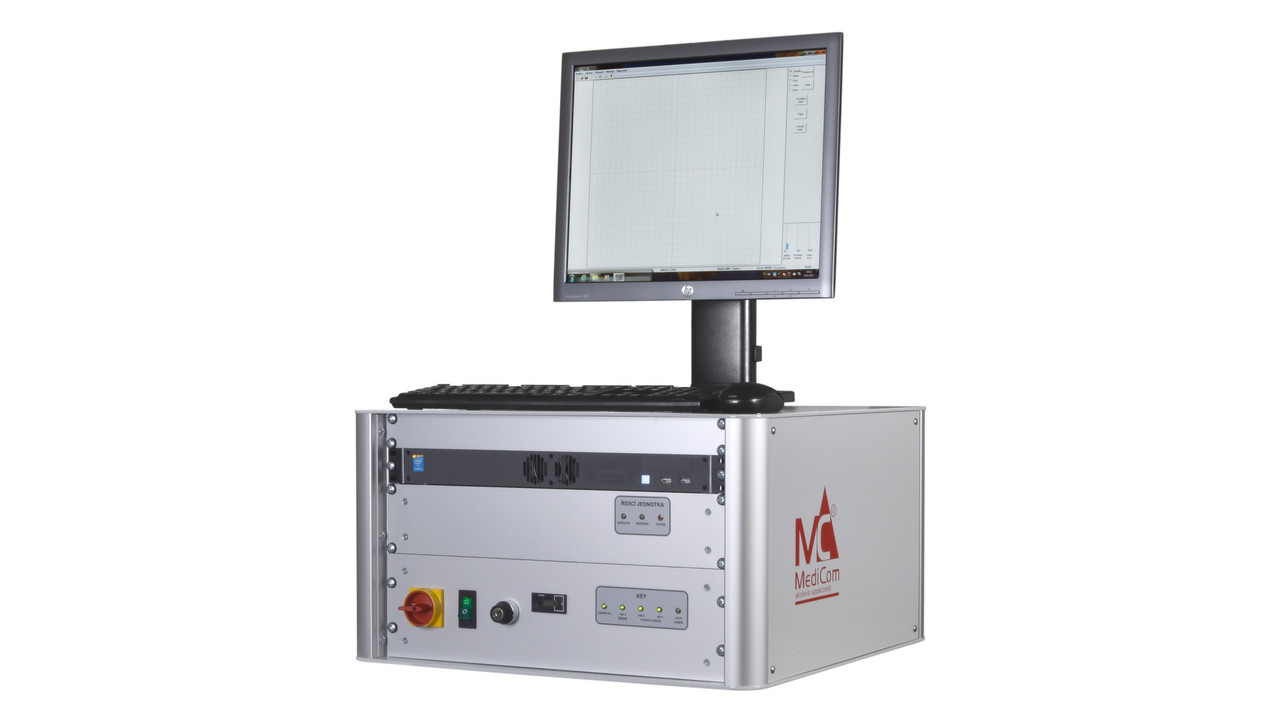

Dimensions of cabinet with control electronic	577 (W) x 453 (H) x 577 (D) mm
Weight of cabinet with control electronic	48 kg
Cooling	Air surrounding temperature 15°- 35°C
Application software	WMark - marking control program
Operating system	Windows 10
Certificates	Laser class IV, CE mark

¹⁾ depends on marking field size

²⁾ according to laser power

Optional accessories:

Exhausting units
Automatic feeders
Rotary axes, DC and step feeds
