Automatic laser marking of differential housings

Automatic laser marking station for differential housings - marking of DMC code and additional text

Fully automatic laser marking station designed for marking DMC codes and additional text on different types of differential housings.

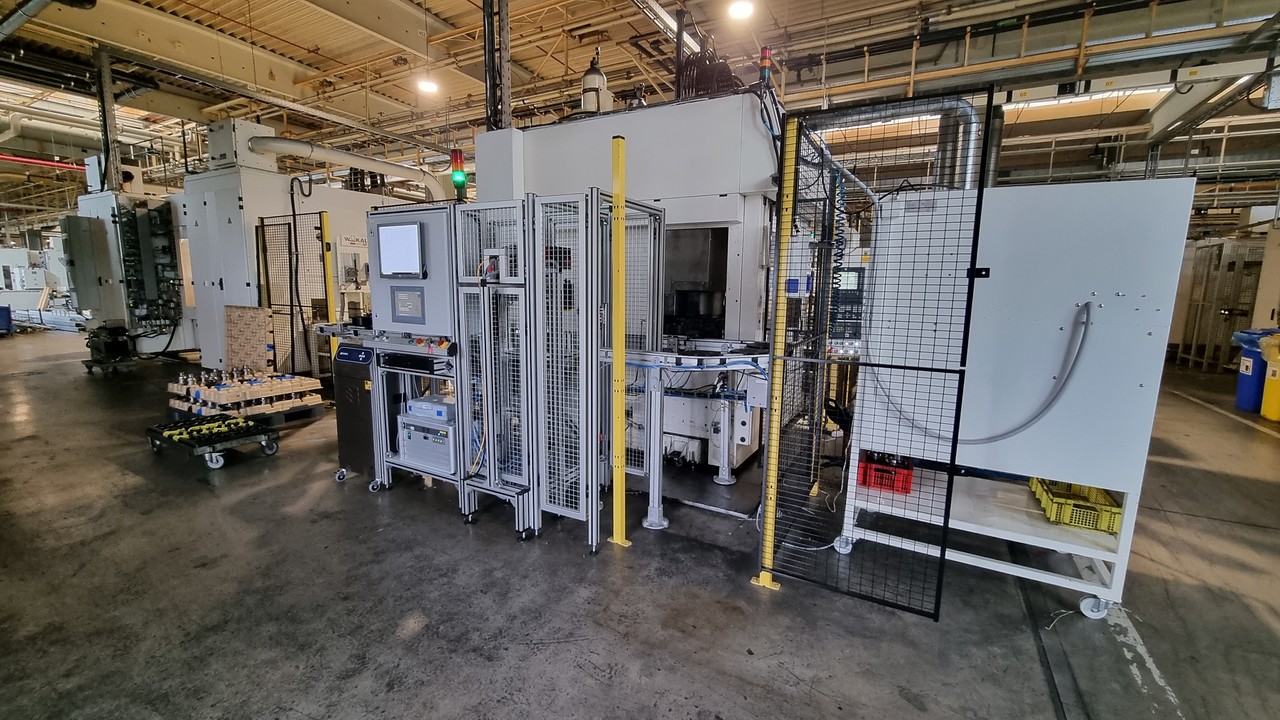

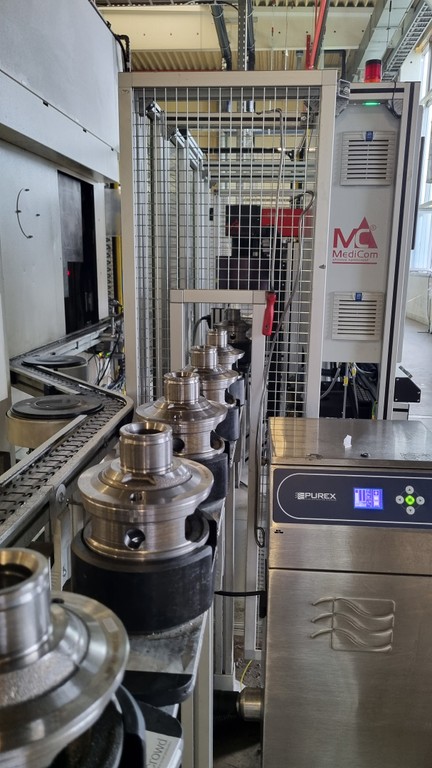

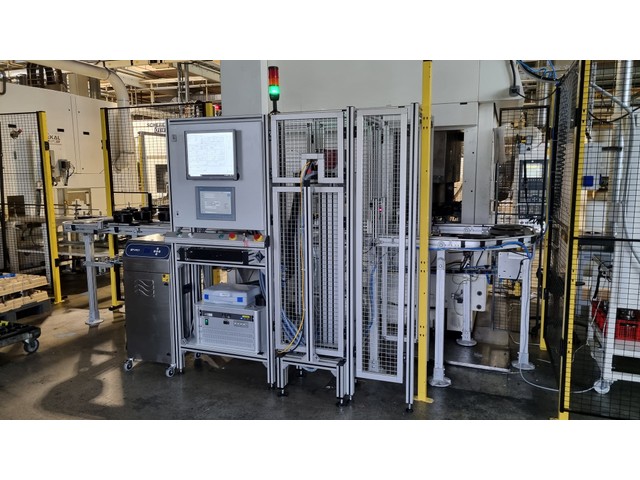

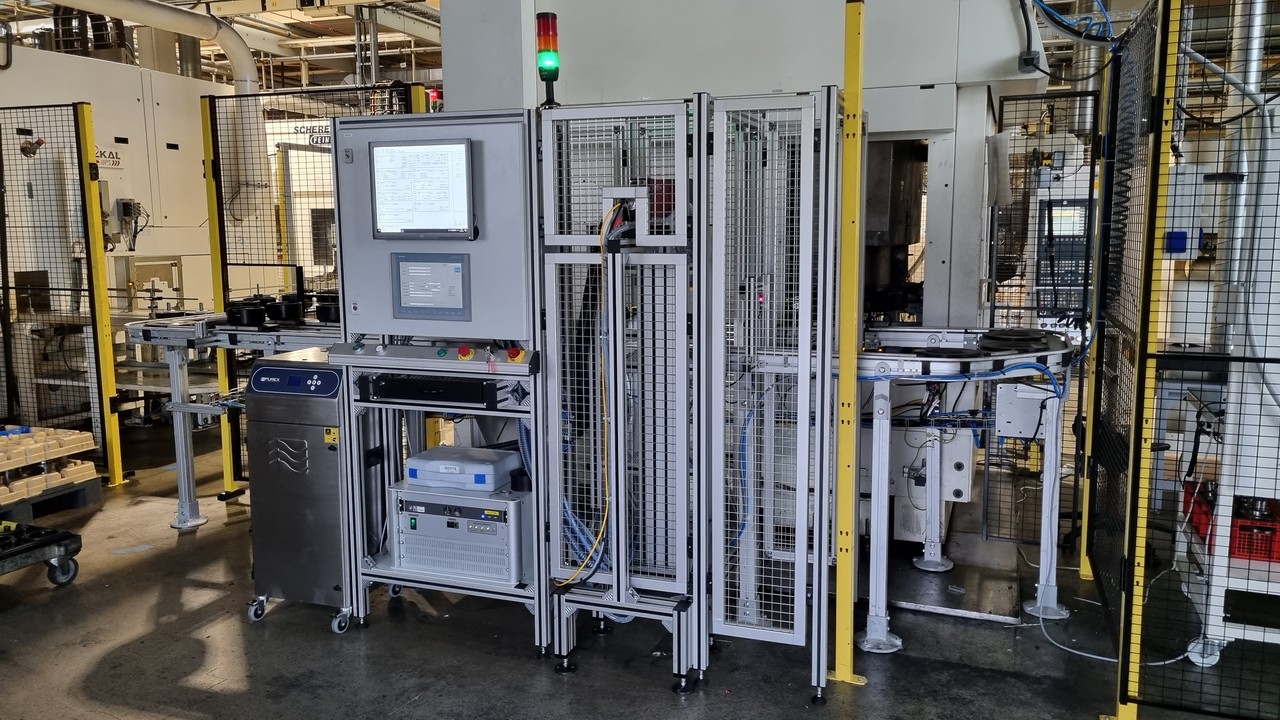

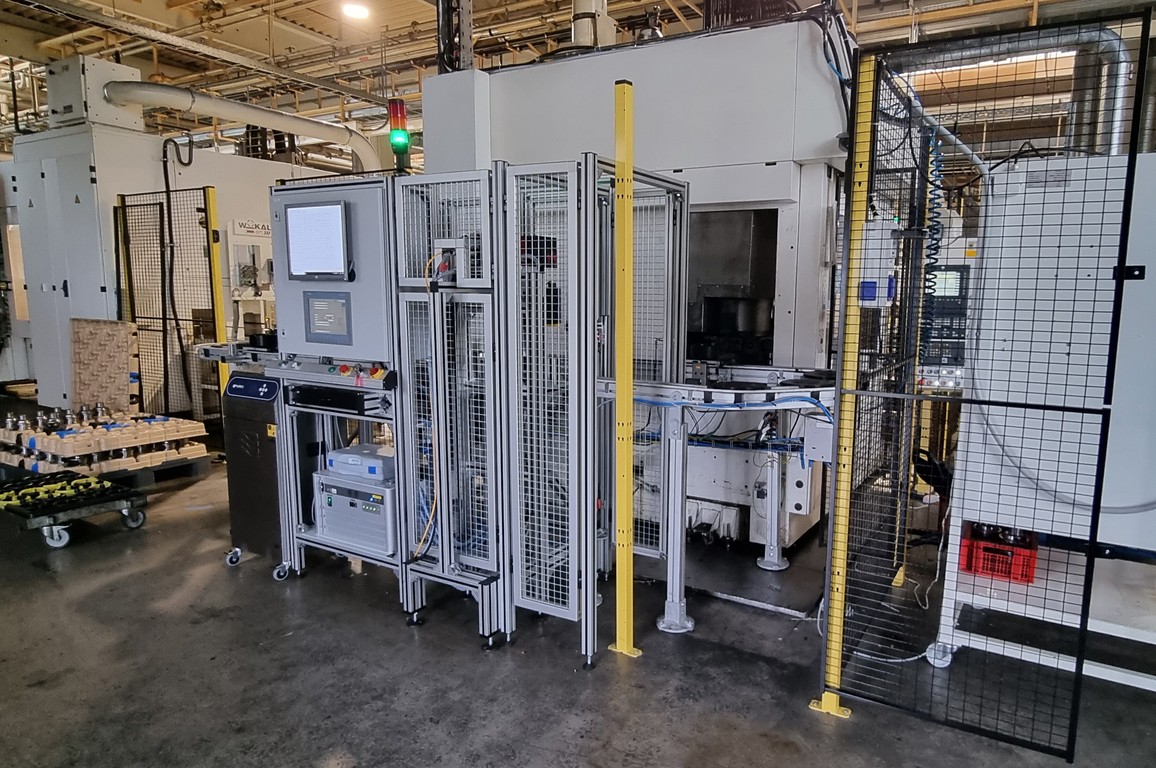

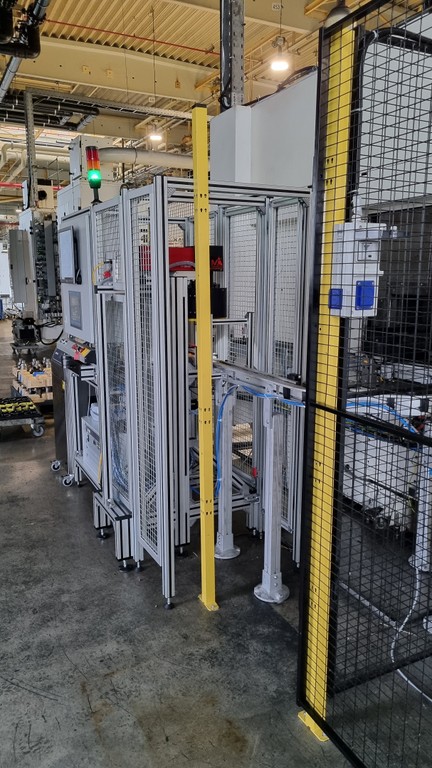

The station is integrated into the production line as part of a belt conveyor that transports parts stored in transport pallets.

The station is designed for marking up to 3 types of parts of different diameters and heights.

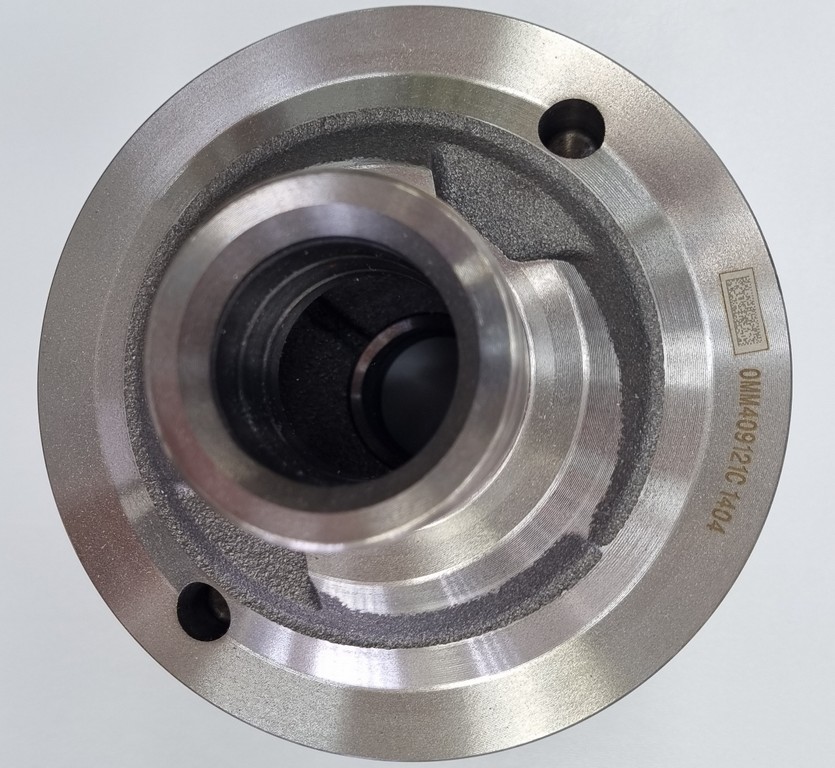

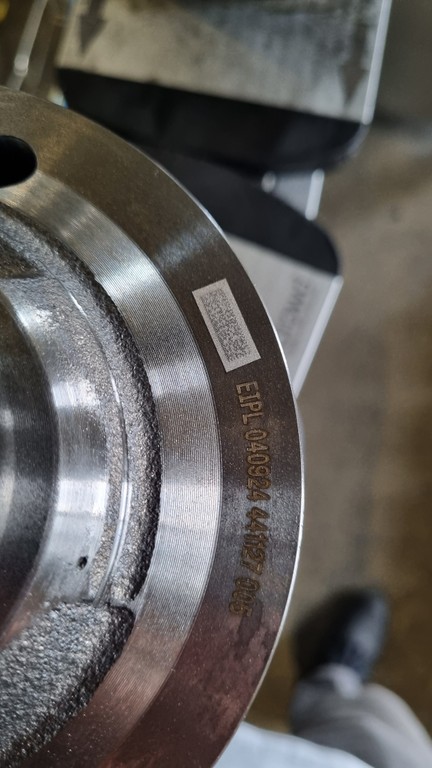

The station first fixes the pallet with the part in the marking position, the side DMC code reader reads the side DMC code marked in the previous operation, closes the marking place with a protective tube cover, marks the duplicate DMC code and the relevant additional text along the upper perimeter of the part, verifies the DMC code with the upper reader and if everything is OK, it lifts the protective tube, unlocks the pallet with the marked part, which then continues on the conveyor to the next station of the line.

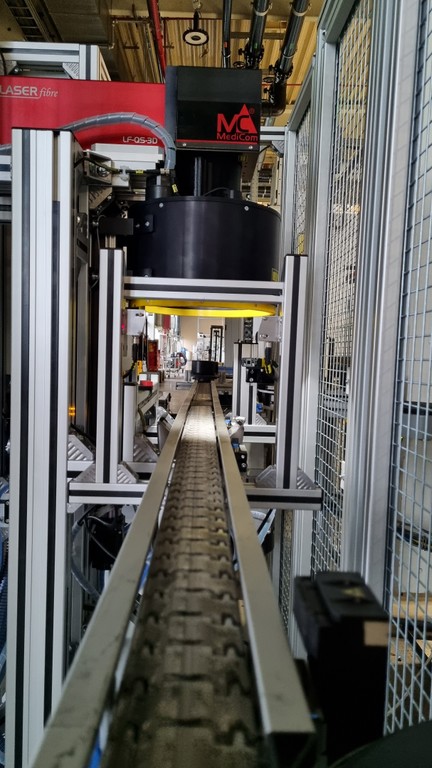

The station is equipped with a 30W fiber laser and a 3D marking head that enables rapid refocus of the beam depending on the specific height of the part without the need to use a motorized Z-axis shift.

The station is intended for 24/7 operation.

Technical parameters

Fully automatic laser marking station designed for marking DMC codes and additional text on different types of differential housings.

The station is integrated into the production line as part of a belt conveyor that transports parts stored in transport pallets.

The station is designed for marking up to 3 types of parts of different diameters and heights.

The station is intended for 24/7 operation.
