Laser marking and sorting of castings

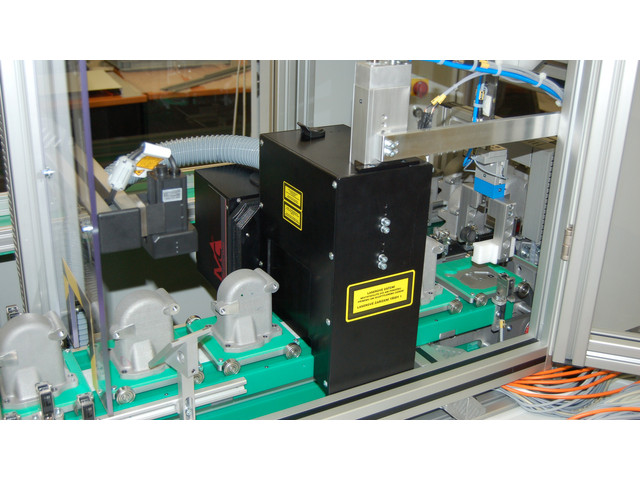

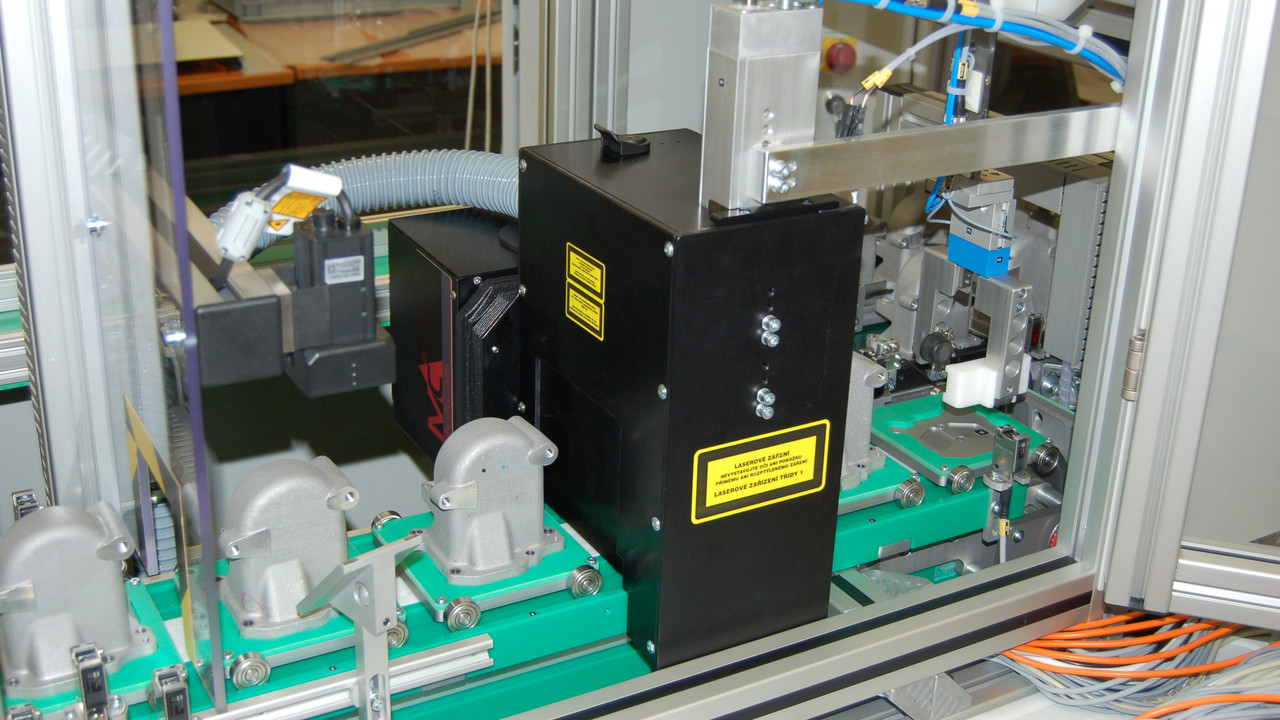

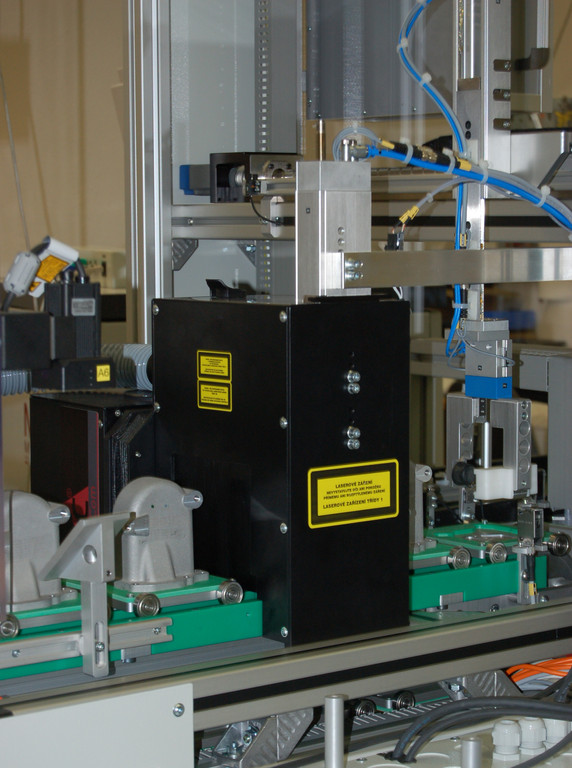

Stations for inspection, laser marking and sorting of castings. Laser station type AMW-115

Access to the warehouse of nonconforming parts under a password or blocking with a lock
Marking cabin with local covering
Motorized Z-axis for laser focusing
Electro-pneumatic manipulator type pick & place
Part detection for correct insertion/fixing
Inspection of the part by the camera system for non-compliance
Operator panel with touch screen, data network connection

The station is designed for laser marking of castings (engine parts) - components for the automotive industry. Loading parts is manual + preparation for connecting a robotic stacker. The device concept allows operation by one or two operators in manual loading mode and by one operator in automatic loading mode.

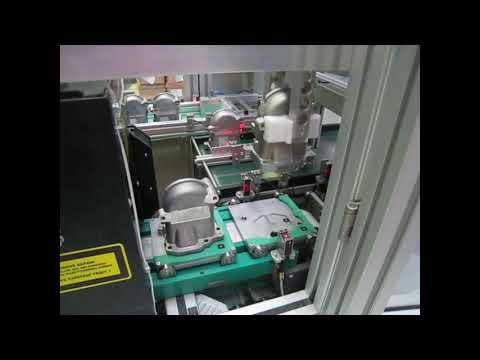

The parts are tested for correct insertion/fixing and subsequently with a camera system for non-compliance. After marking with a laser, the manipulator sorts the parts into OK and NOK parts. The output conveyor stores parts for manual collection.

Technical parameters

Type	AMW-115
Laser	LASERdiode LD50C
Station productivity	450 pcs/h¹⁾
Magazines capacity	22 pcs²⁾
Drive	pneumatic, step and servo motors
Z-axis - laser focus	150 mm
Power supply	230VAC / 50Hz
Compressed air	6 bar
Input	1800 W
Station dimensions	2500 (W) x 1200 (D) x 1800 (H) mm
Station weight	450 kg
Cooling	Air surrounding temperature 15°- 35°C
Application software	WMark
Operating system	Windows 10
Certificates	Laser class I, CE mark

¹⁾ according to the part marking time, which depends on the complexity of the marking layout
²⁾or according to the length of the output conveyor

Laser marking station type AMW-115

Laser station for marking and sorting of casts

Other MediCom lasers

Automatic laser marking station for differential housings - marking of DMC code and additional text

Automatic laser marking of differential housings

Fully automatic laser marking station designed for marking DMC codes and additional text on different types of differential housings.

The station is integrated into the production line as part of a belt conveyor that transports parts stored in transport...

Laser station for automatic marking of self-adhesive labels with manual removal and gluing of labels on fuel pump bodies

Laser marking of self-adhesive labels for fuel pumps

Laser station for automatic marking of self-adhesive labels with manual removal and gluing of labels on fuel pump bodies, including hand press with defined pressure force. A control camera for reading and verifying the marked data on the label, including the DMC code,...

Laser marking station for marking and cutting of label set types for automotive

Laser marking station for marking and cutting of self-adhesive labels

The station is designed for the production of self-adhesive labels from special three-layer self-adhesive foils (3M, TESA, Schreiner) intended for laser marking and cutting. Labels produced in this way are commonly used, for example, in the...

Laser automatic marking workstation

Laser marking of self-adhesive labels

The station is equipped with an automatic self-adhesive label feeder. The labels are affixed to the carrier and pass through the feeder, where they are precisely positioned and marked. At the output, they can be rewound on a roll or, in a variant version of the feeder,...

Station for automatic laser marking of electrotechnics components

Laser marking of electrotechnics components

The station is designed for automatic laser marking of modular electrical components such as circuit breaker, contactor, auxiliary relay, time relay, power supply, etc. The station consists of an input conveyor, a central feeder and an output conveyor. Loading parts on...

Automatic laser station for marking internal plastic components of car dashboards

Automatic laser marking of plastic components for the automotive industry

The station is designed for automatic insertion and removal of parts by a manipulator who removes the parts directly from the injection molding machine.

After opening the press, the manipulator takes 2 parts from the mold bed, moves and places them in the...

Automatic laser marking of aluminium anodized labels

Automatic laser marking of labels

The station is designed for laser marking of metal labels in automatic or manual mode. Labels can be marked in piece series, optimal are series numbering 100 or more pieces. The design of the feeder allows to process aluminum labels or anodized aluminum labels, plastic...

Automatic laser marking station for marking of bearings

Laser marking of bearings

The station is designed for laser marking of bearings or bearing rings in a smooth design, possibly with one or more collars.
