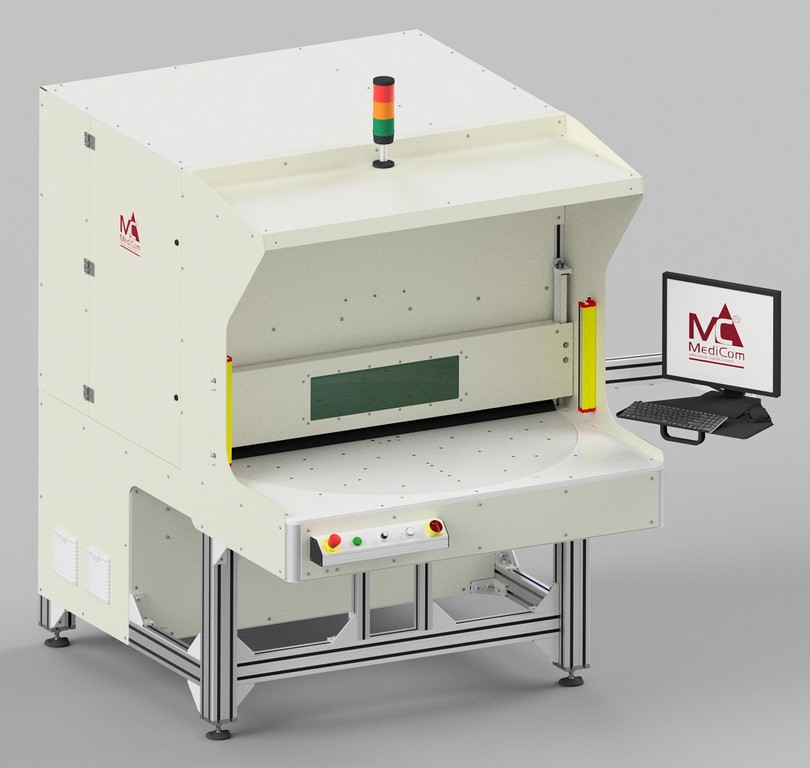

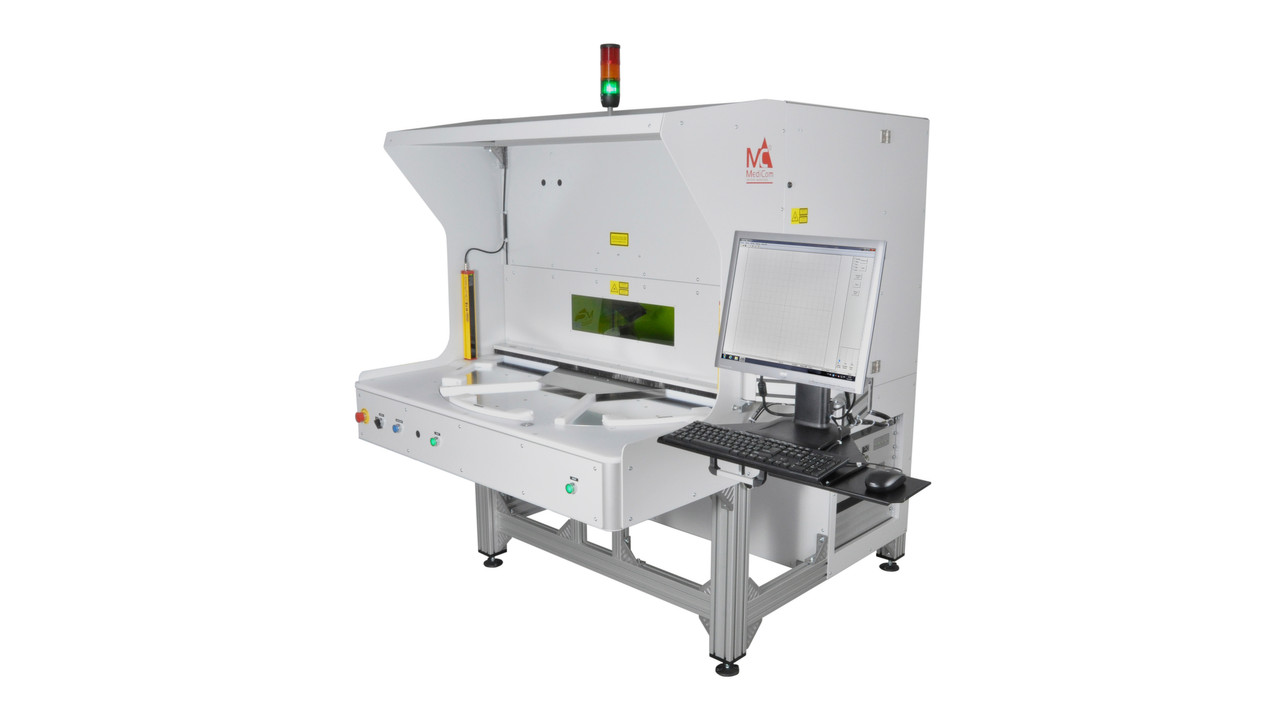

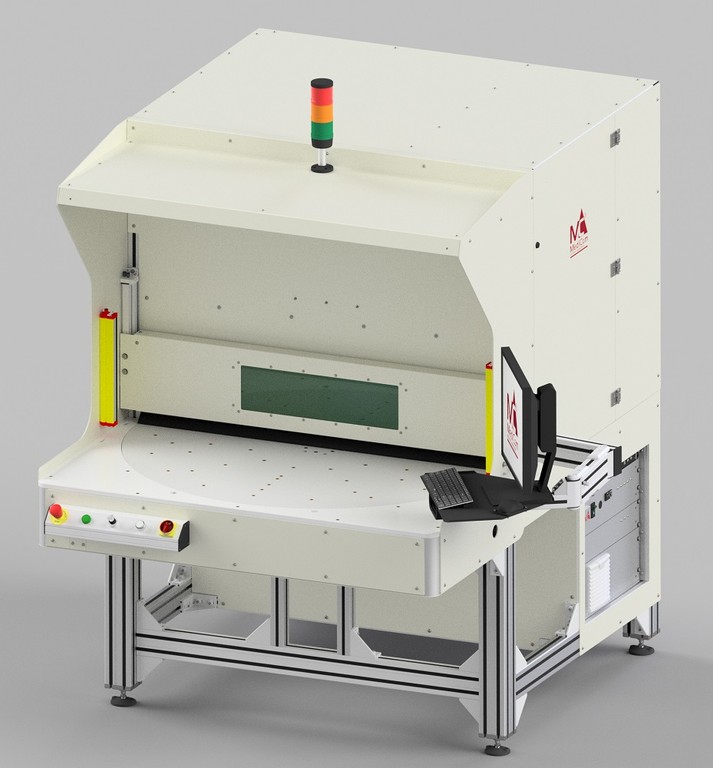

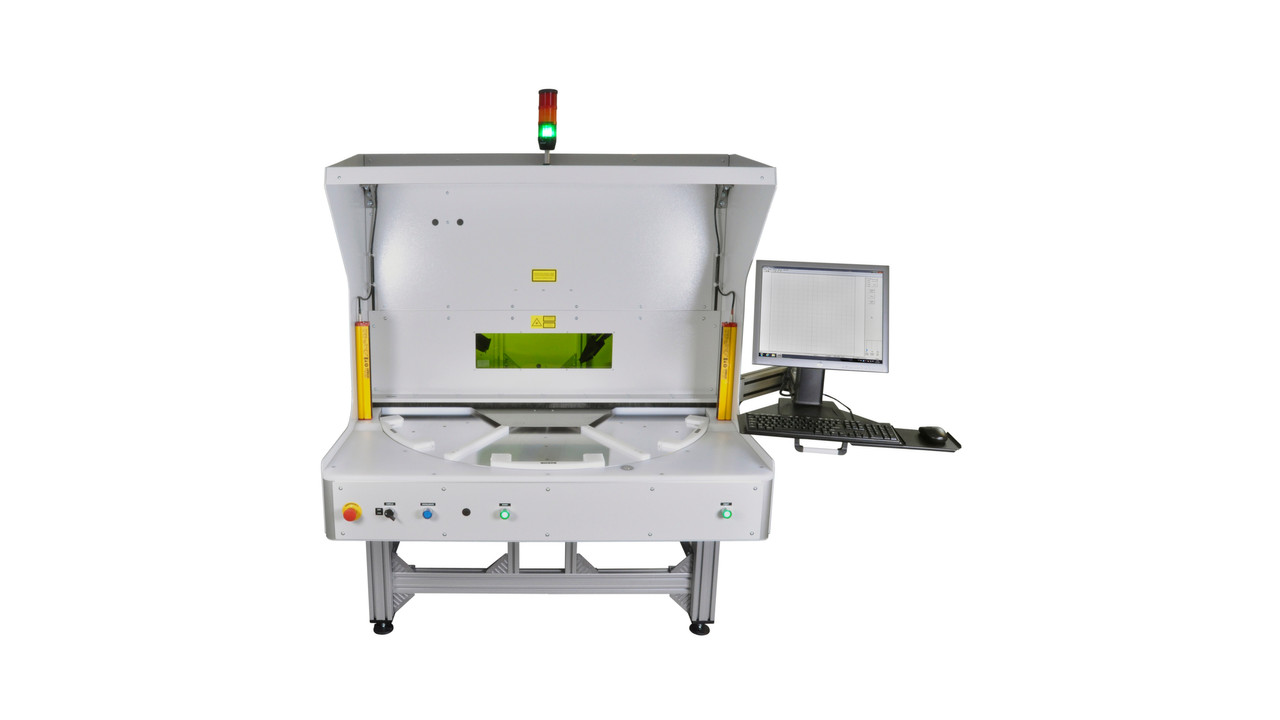

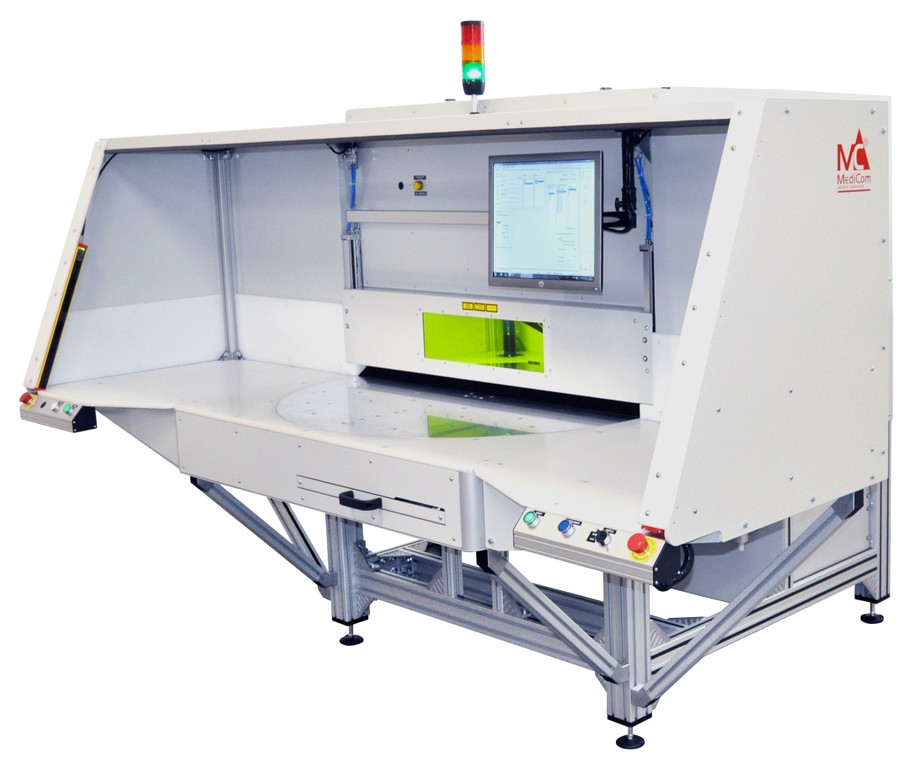

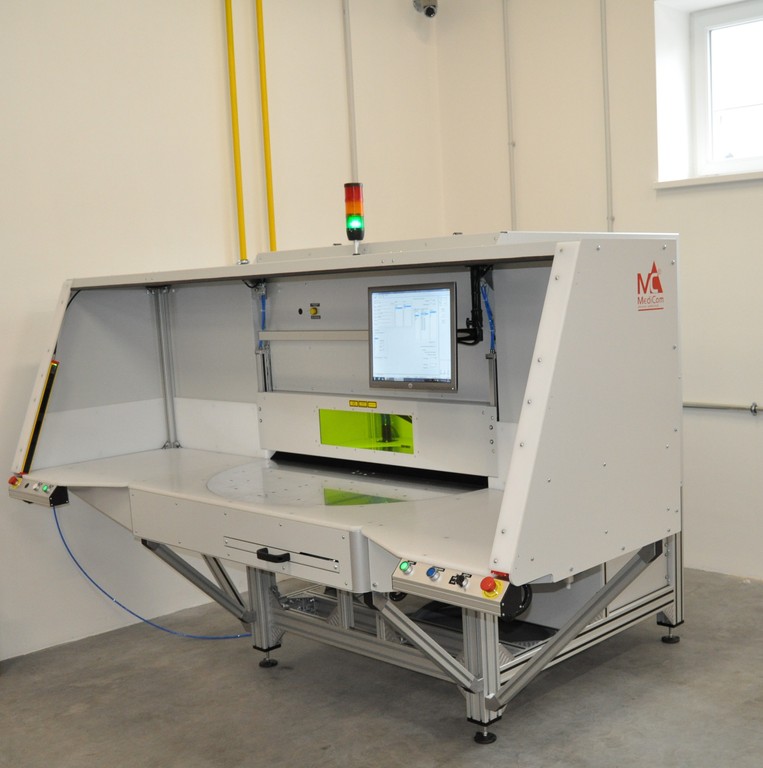

LASERfibre LF100XL with Carousel

Laser marking station XL with automatic rotating carousel and fiber laser.

Laser sources fiber LF, vanadate LV or CO2 LM
Motorized linear vertical and horizontal axis Z and Y
Marking field from 160 x 160 mm to 280 x 280 mm

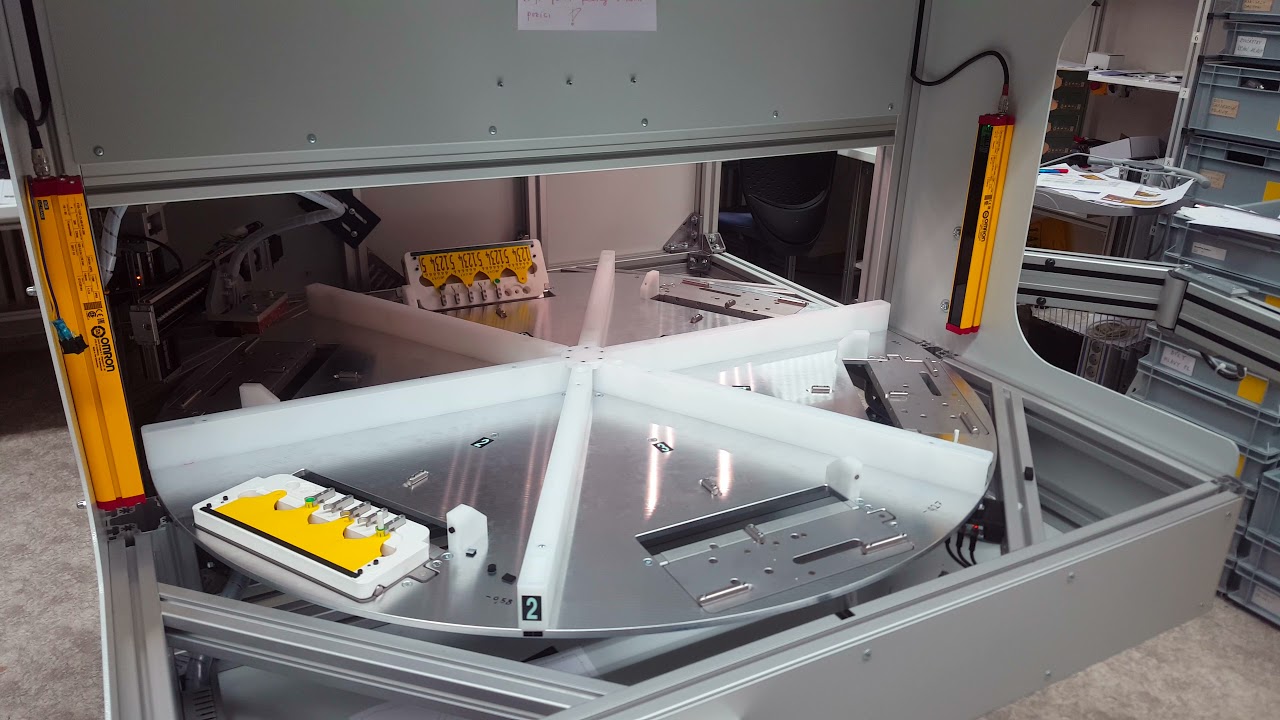

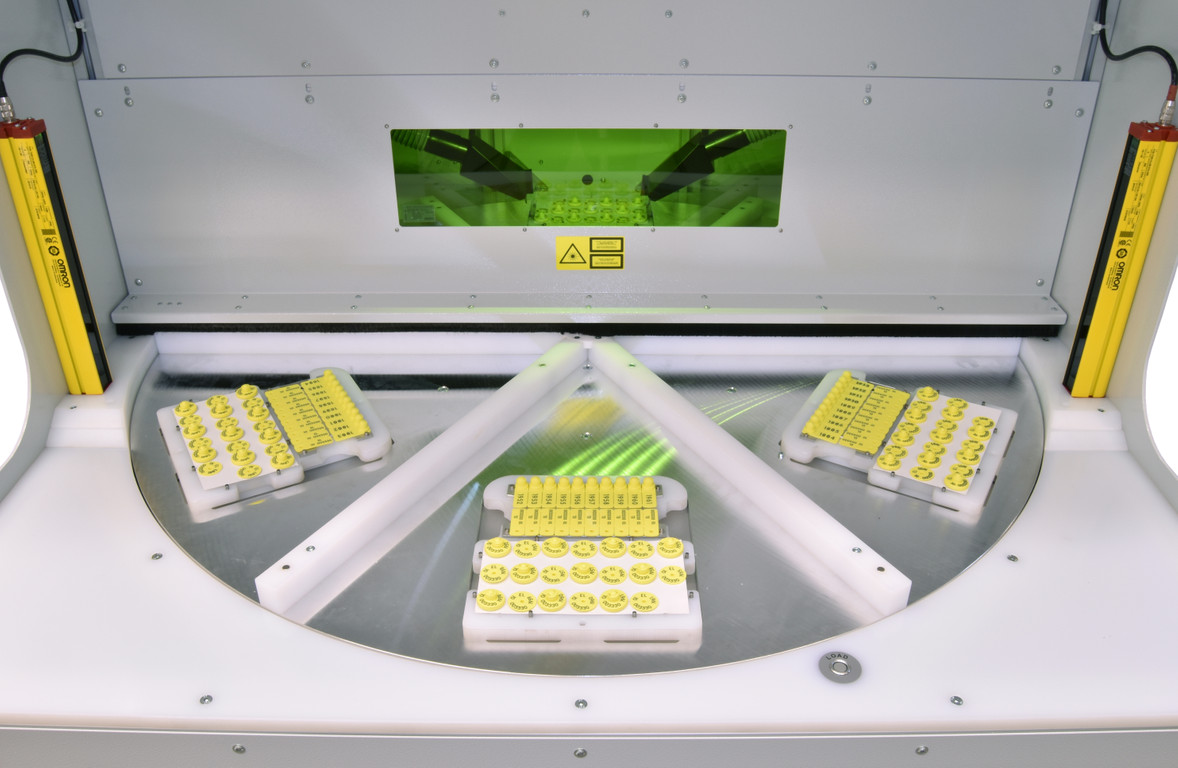

Automatic 6 positional rotating carousel with diameter of 1250mm or 1000mm
Optionally pallets tilting system within carousel
Usable dimensions for parts insertion 1000(1250) x 330 x 600 mm (WxHxD)
Allows marking of large parts with a high productivity

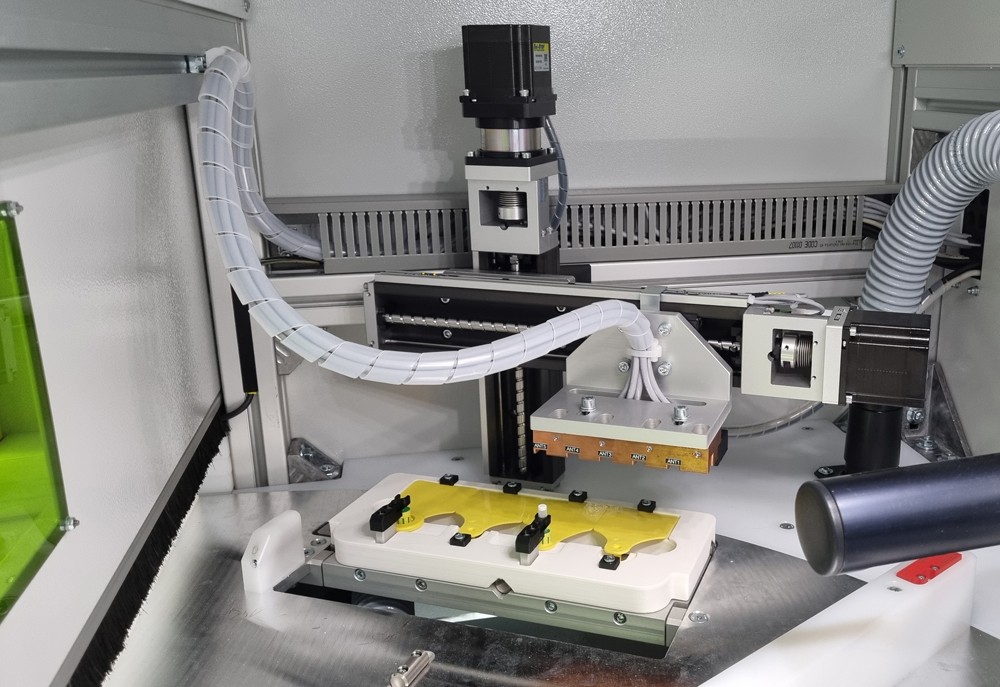

Wide range of accessories as RFID fixed or motorized multi programmers, cameras, code readers etc.
Software - WMark - the marking control program, Windows environment, full setting of all marking parameters comprehensive set of commands and functions

Optional accessories

Exhausting units
Automatic feeders
Rotary axes, DC and step feeds

Technical parameters

Model	LFQ20XL	LFQ30XL	LFQ50XL	LFQ100XL
Laser type	Fiber Q-switched
Laser power	20 W	30 W	50 W	100 W
Wavelength	1064 nm
Frequency	Q pulsed 5-200 kHz MOPA pulsed CW-850 kHz
Marking field	100 x 100, 160 x 160, 200 x 200, or 280 x 280 mm ¹⁾
Single line width	0,04 - 0,08 mm ²⁾
Carousel diameter	1000mm, 1250 mm ¹⁾
Max. weight of the part	100 kg
Z axis stroke	200 mm
Y axis stroke	400 mm
Power supply	100-240 V, 50/60 Hz
Input	300-600 W ³⁾
Cover	IP54
Station dimensions	1400 (W) x 1860 (H) x 1800 (D) mm
Station weight	520 kg
Cooling	Air surrounding temperature 15°- 35°C
Application software	WMark
Operating system	Windows 10
Certificates	Laser class I, CE mark

¹⁾ alternative or optional design

²⁾ depends on marking field size

³⁾ according to laser power

Optional accessories:

Exhausting units
Automatic feeders
Rotary axes, DC and step feeds

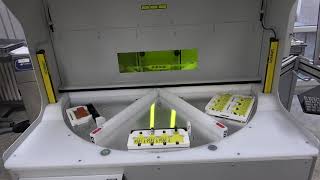

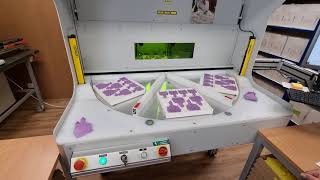

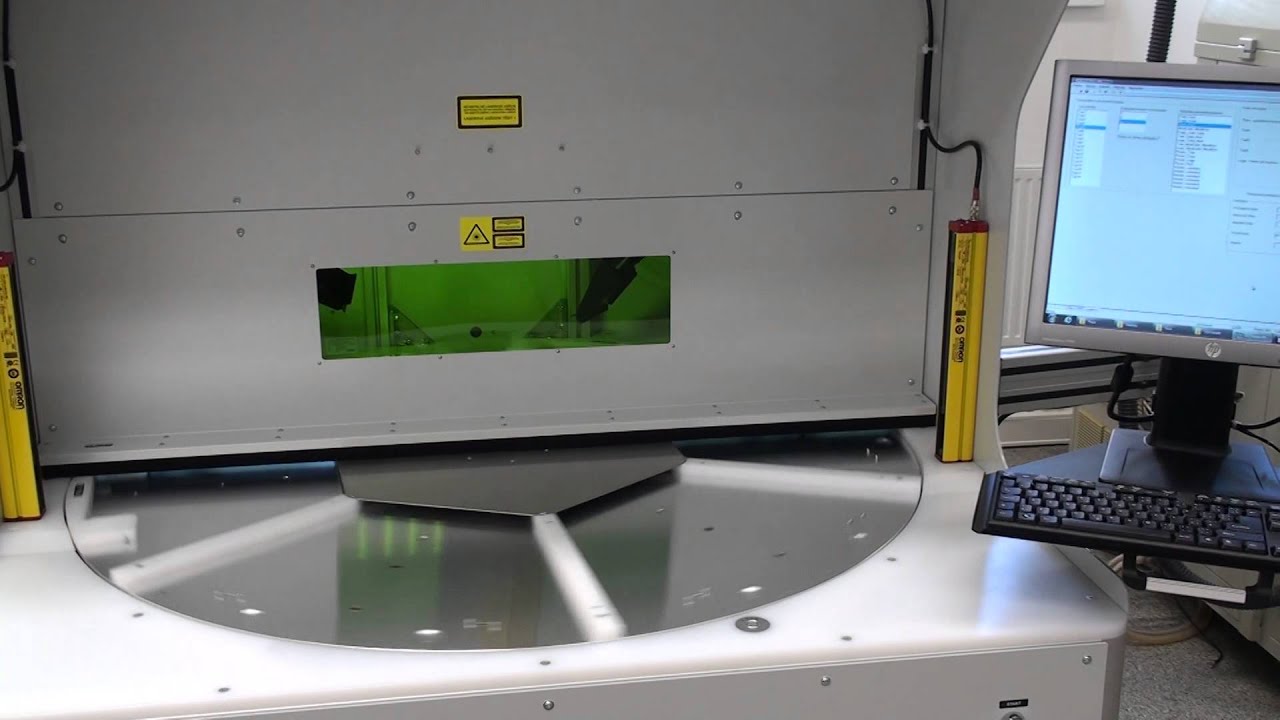

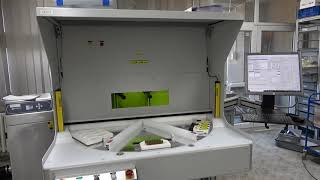

Demonstration of laser marking station type XL

Laser marking station type XL with automatic rotary carousel - demonstration of plastic plombs marking application

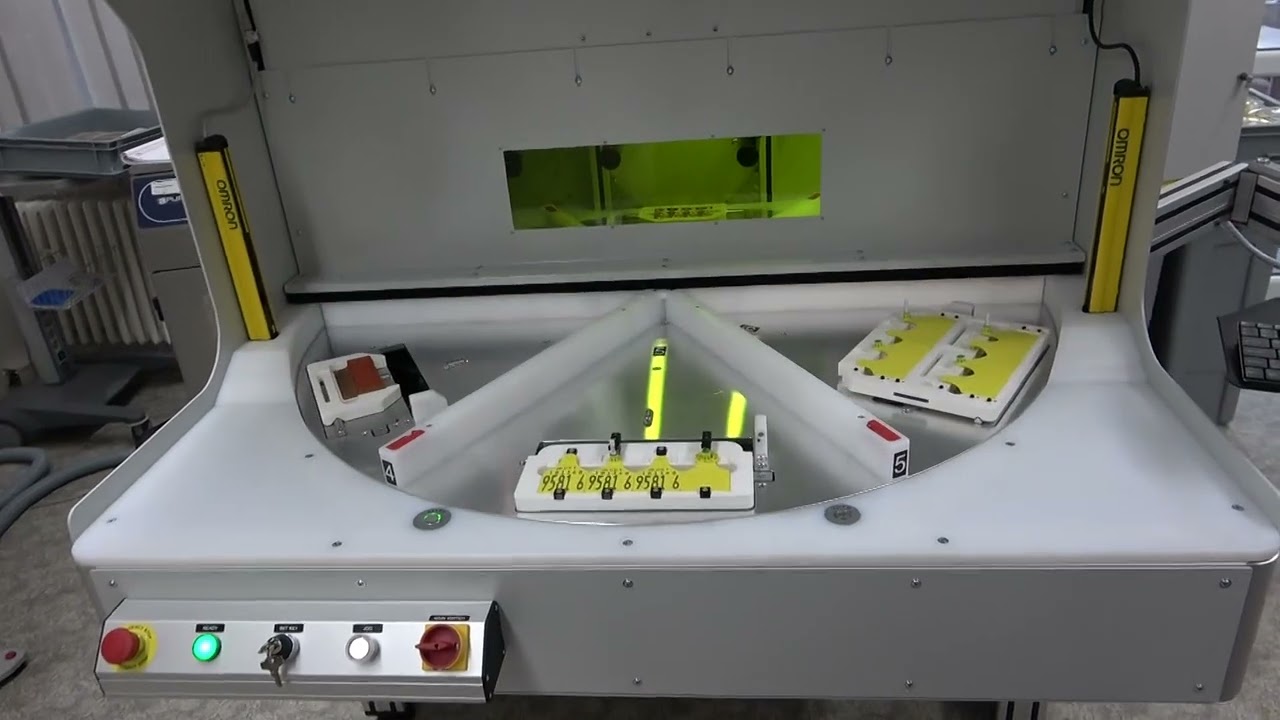

Demonstration of laser marking station type XL

Laser marking station type XL with automatic rotary carousel - demonstration of animal ear tags marking application

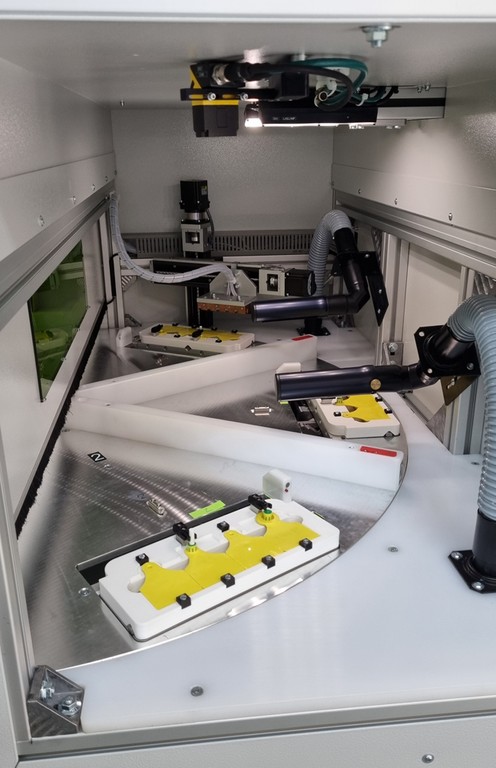

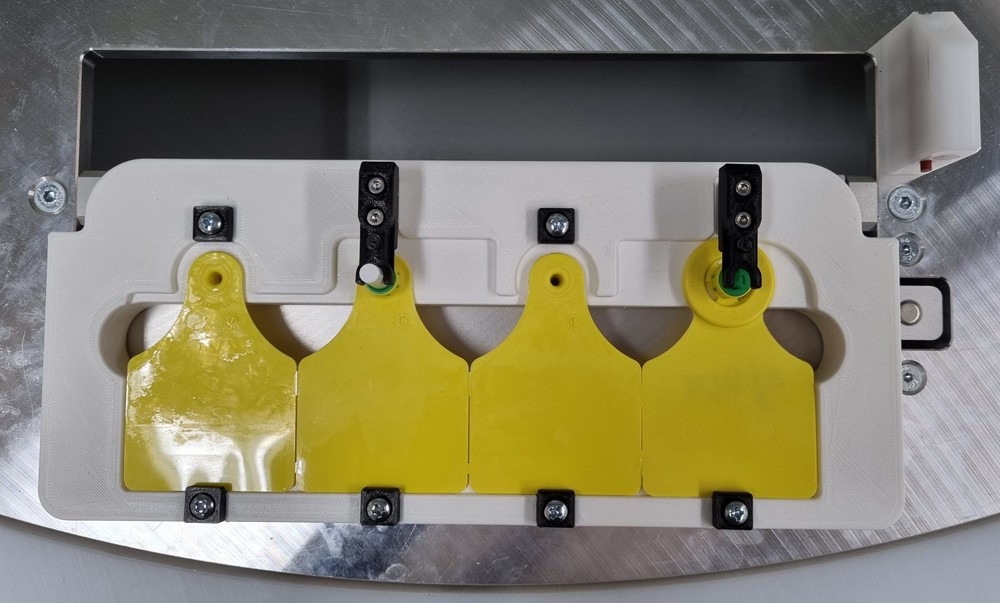

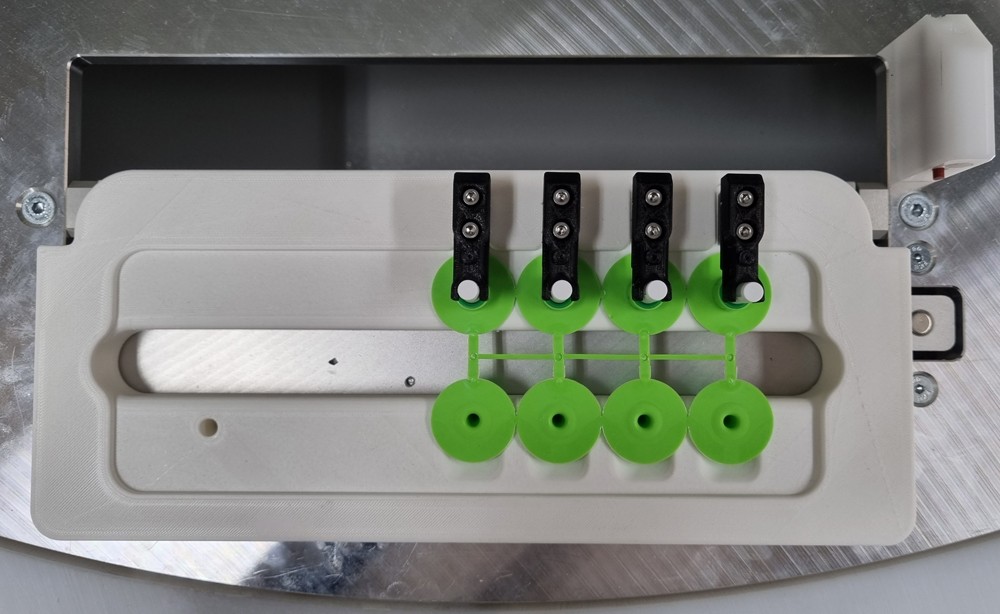

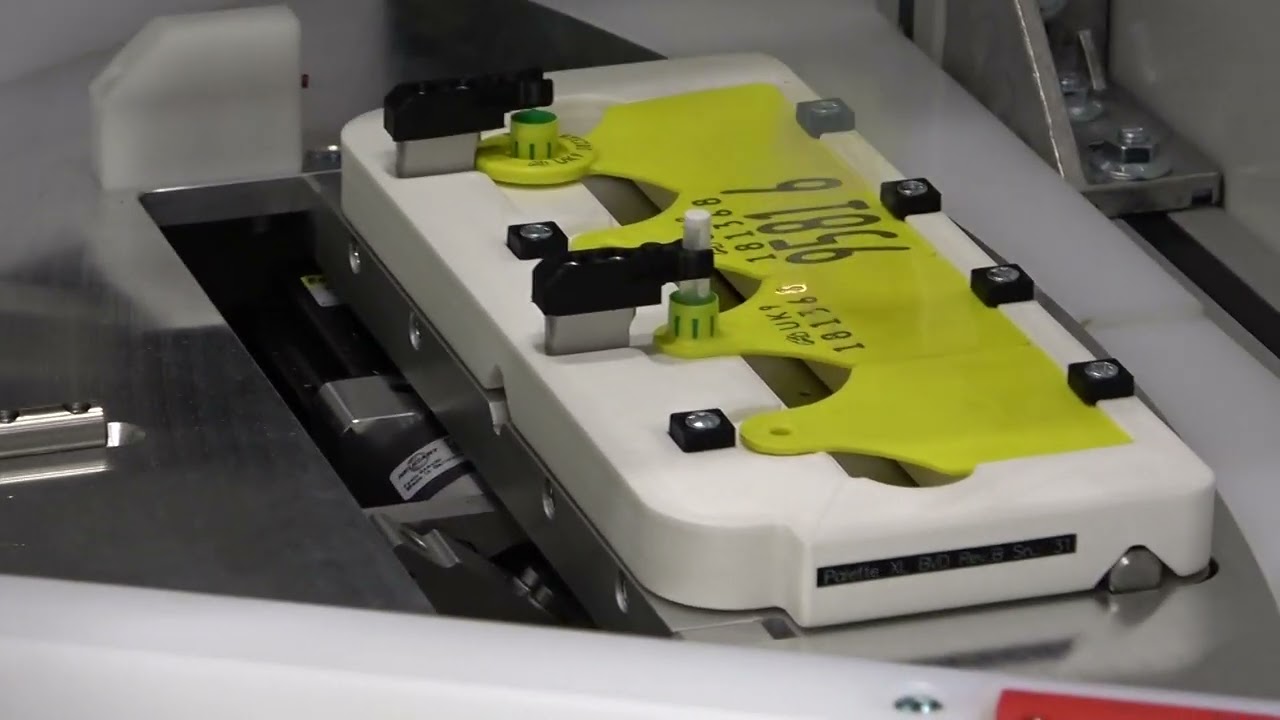

LF100XL with pallets lifting for BVD tags

Animal ear tags laser marking and RFID programing

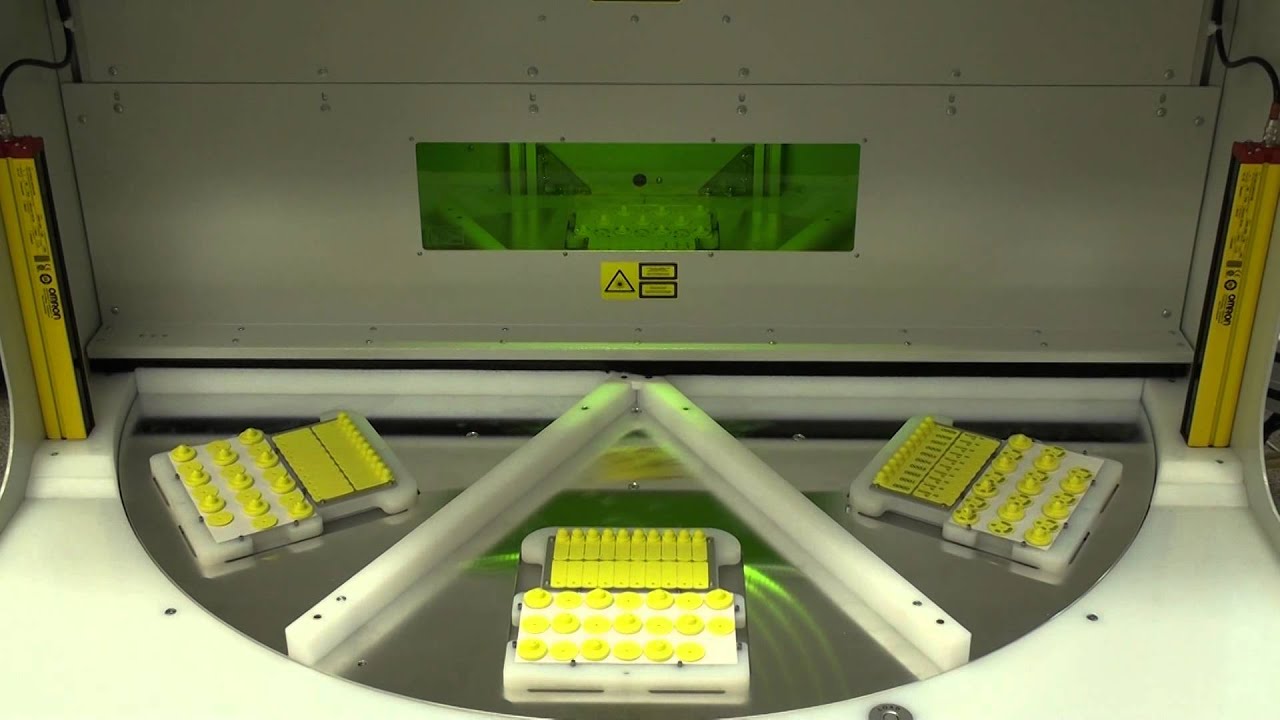

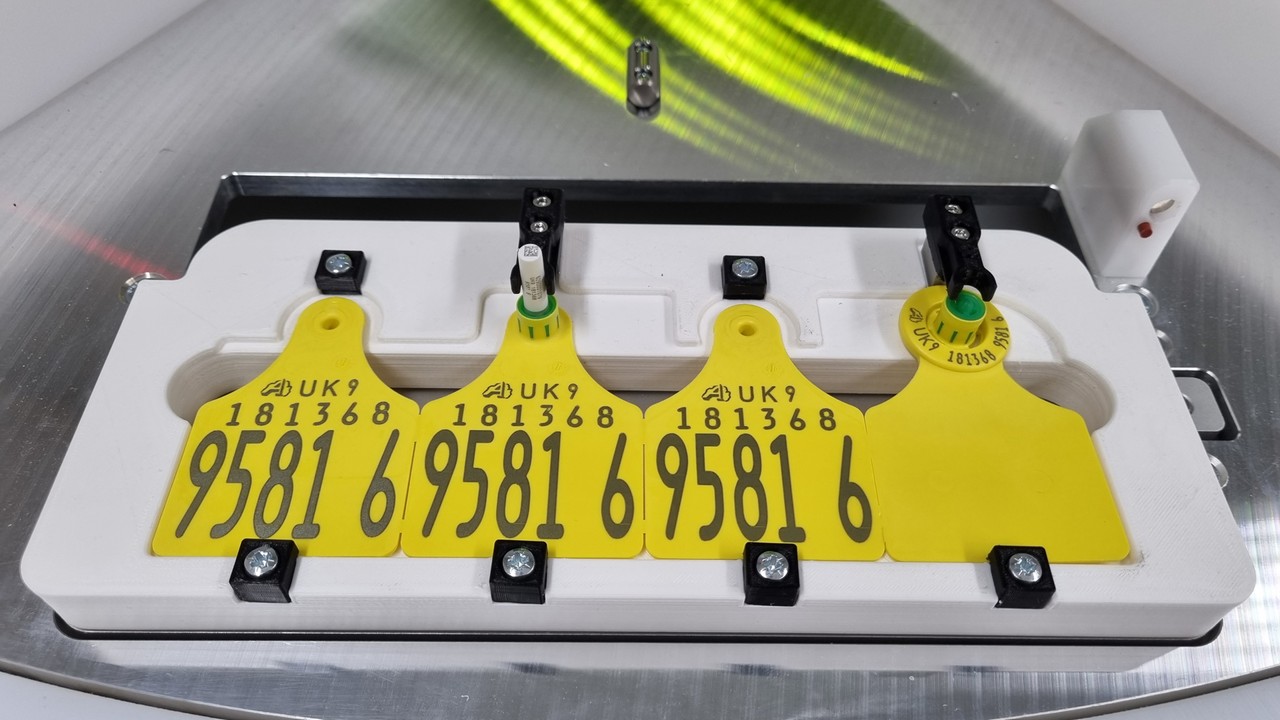

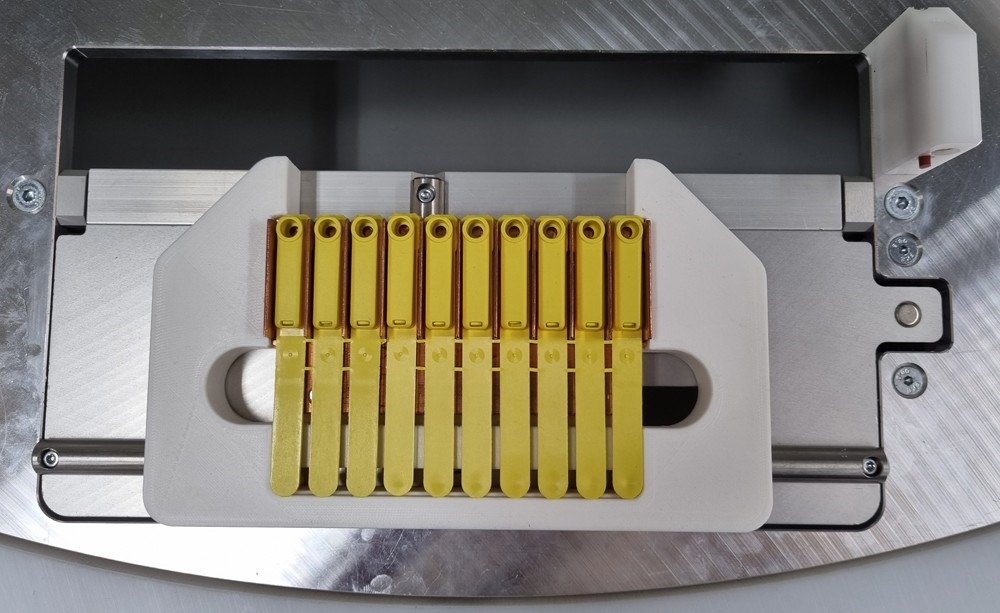

Laser marking station LF100XL with 1250mm carousel - BVD tags marking

Animal ear tags laser marking and RFID programing

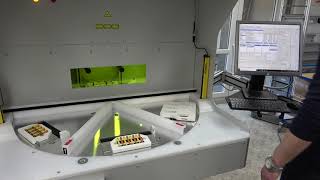

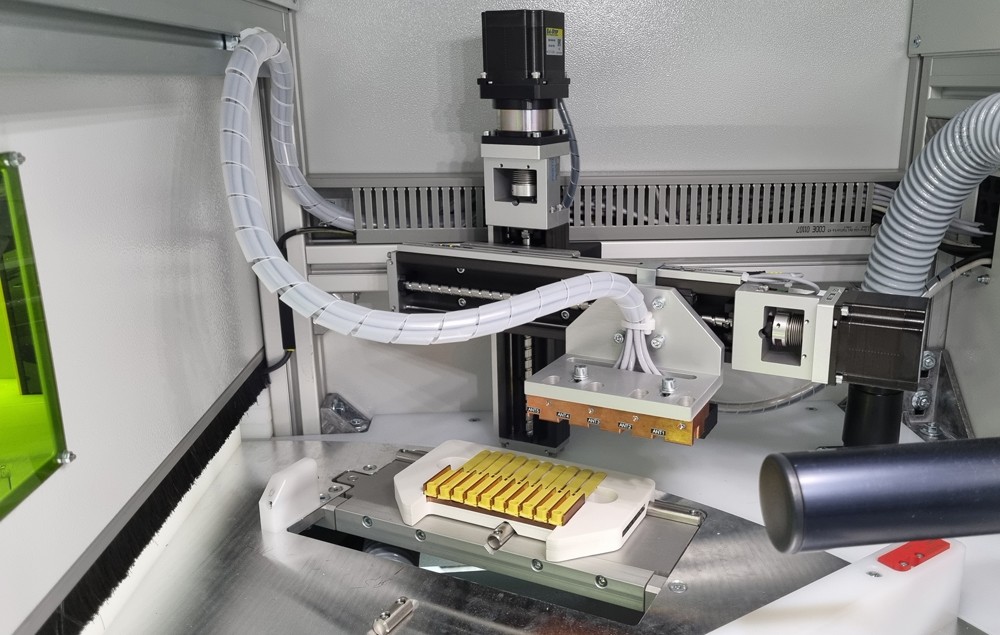

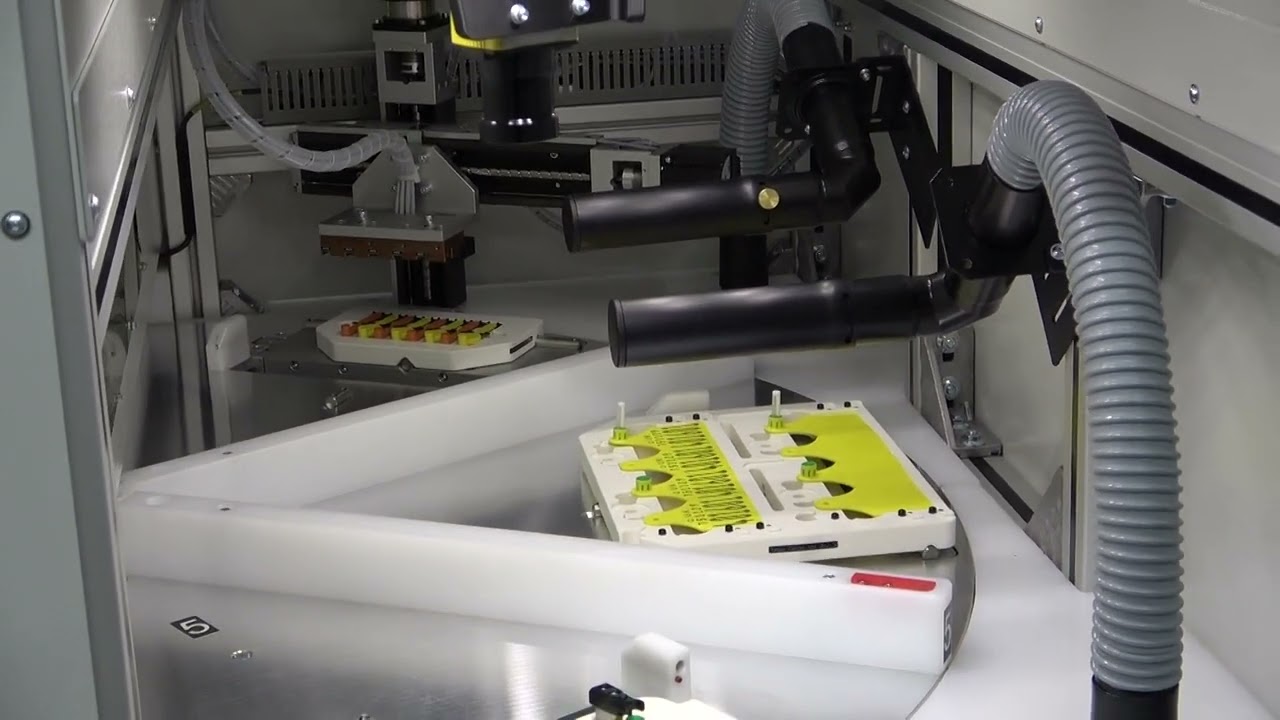

Laser marking station LF100XL with 1250mm carousel - BVD tags marking inside view

Animal ear tags laser marking and RFID programing

Laser marking station LF100XL with 1250mm carousel - large tags marking

Animal ear tags laser marking and RFID programing

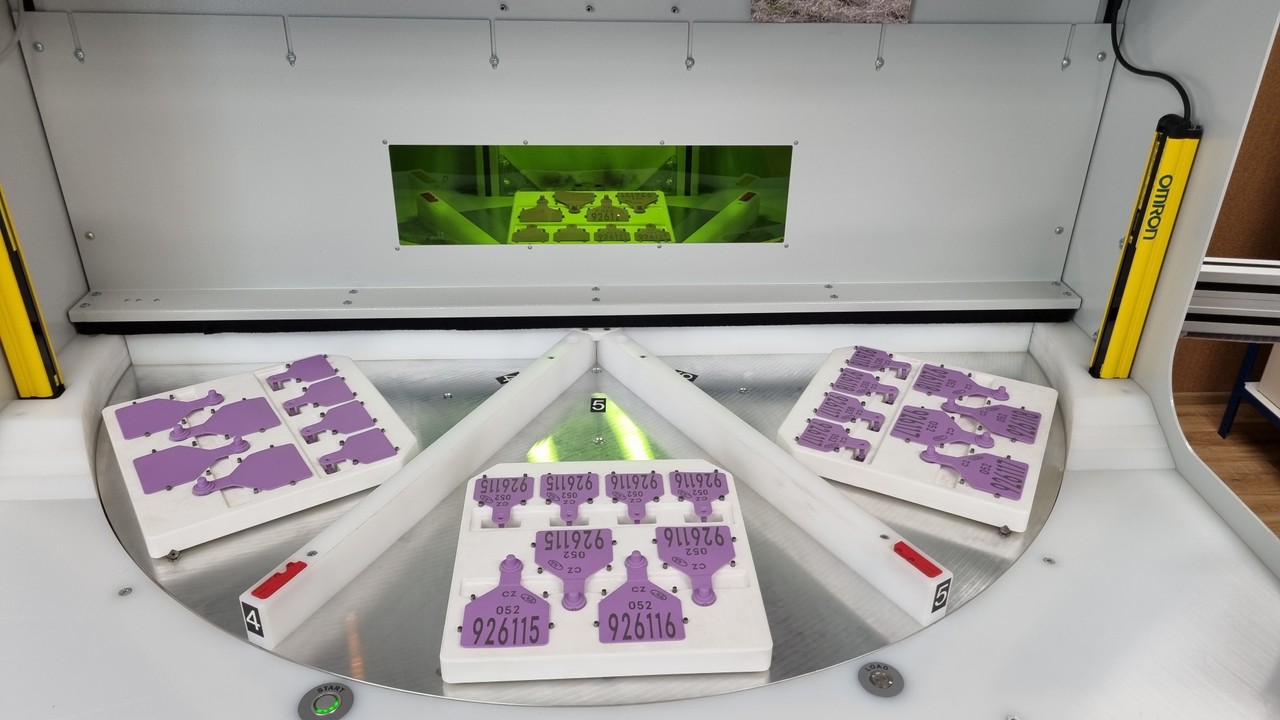

Laser marking station LF100XL with 1250mm carousel - large tags marking inside view

Animal ear tags laser marking and RFID programing

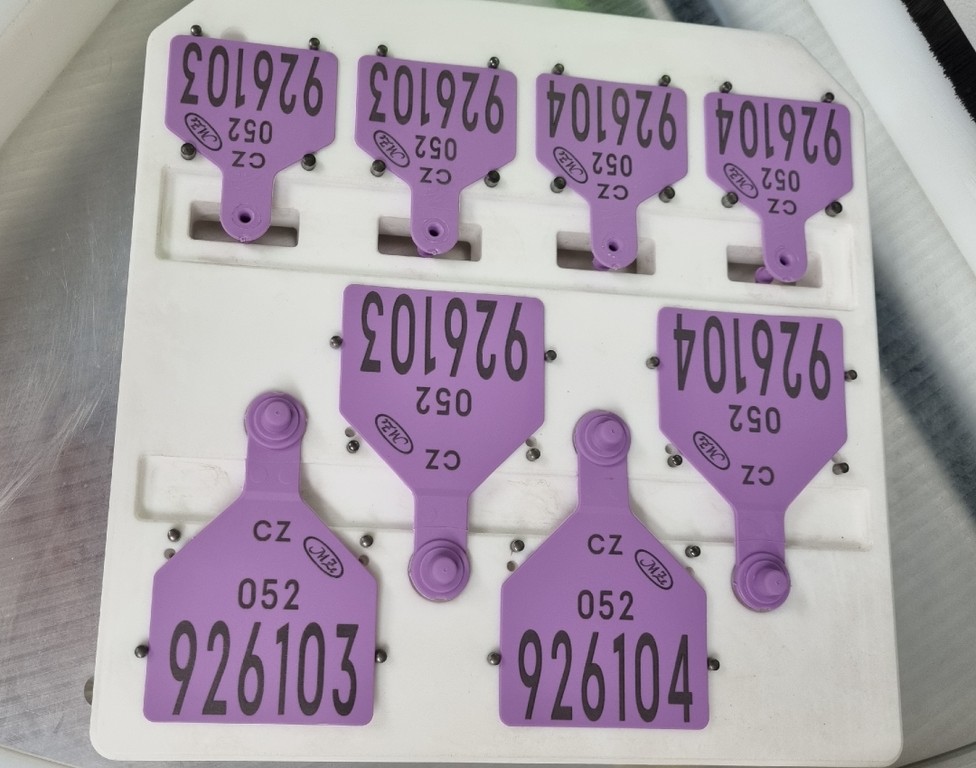

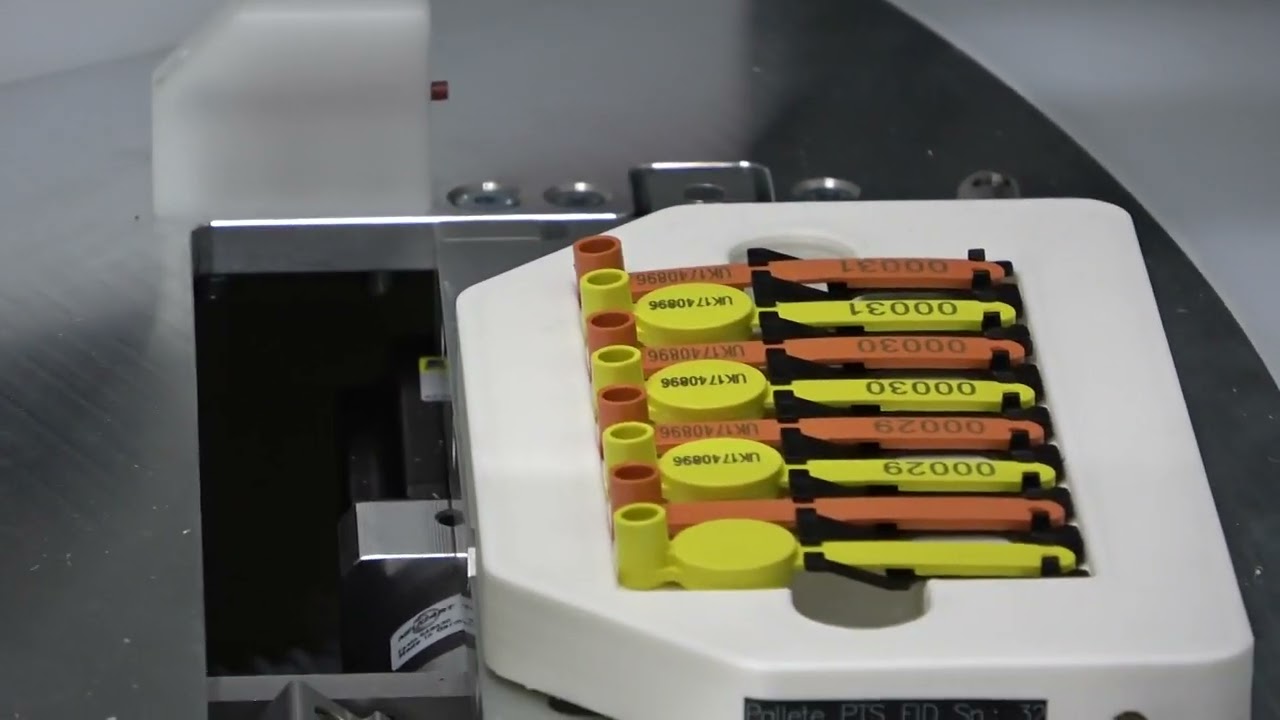

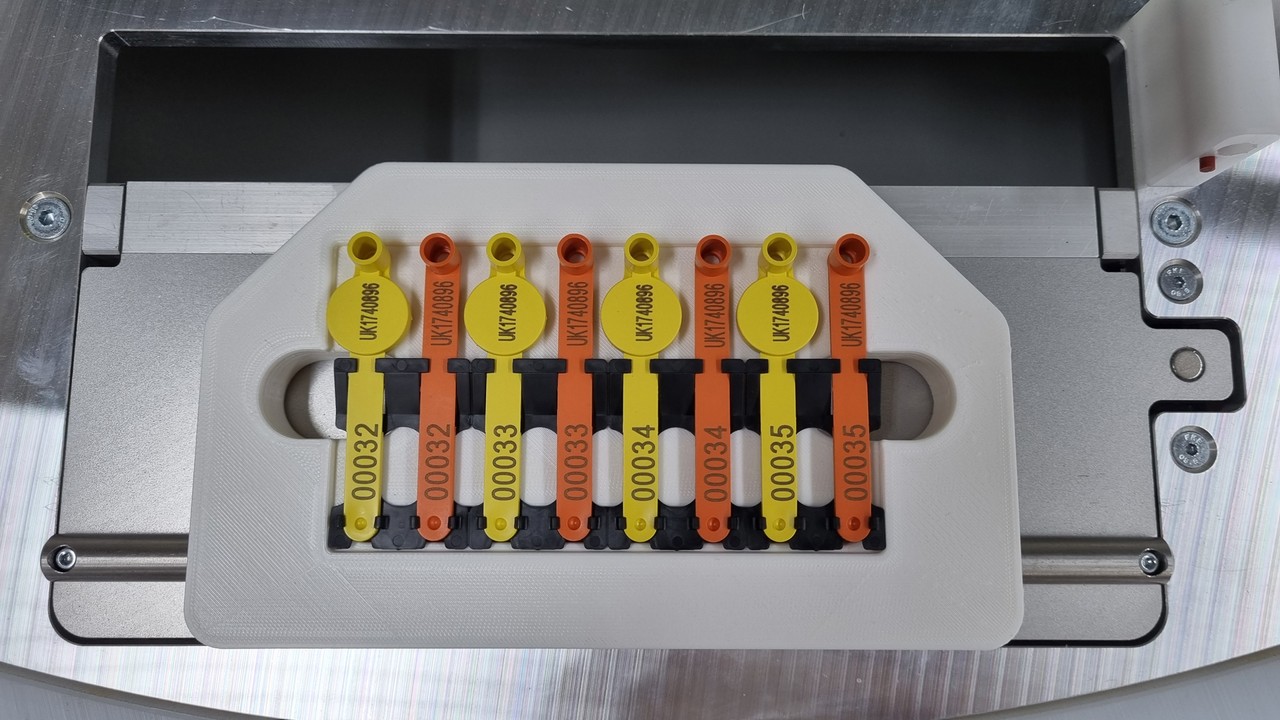

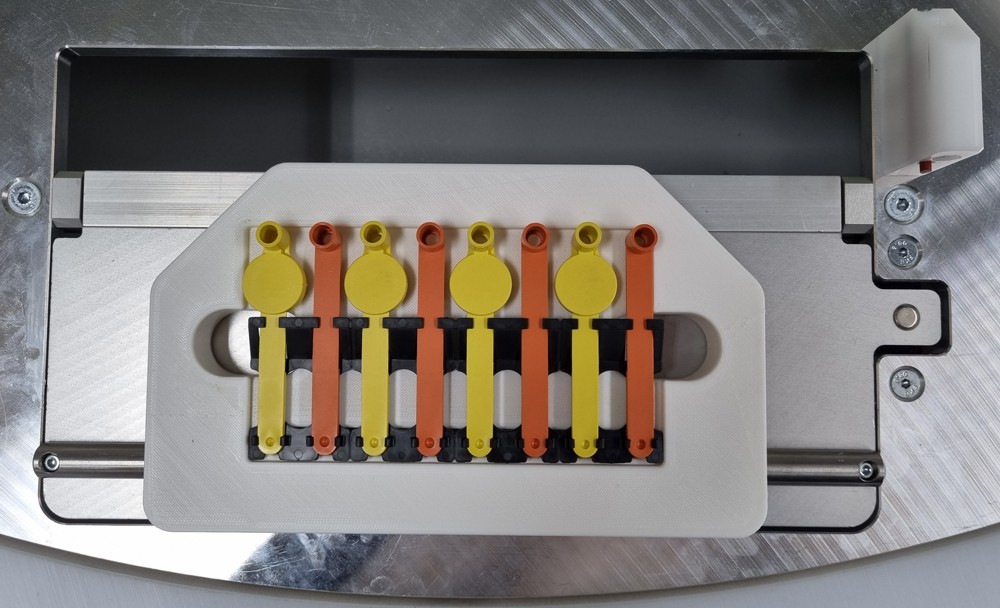

Laser marking station LF100XL with 1250mm carousel – PTS EID tags marking

Animal ear tags laser marking and RFID programing

Laser marking station LF100XL with 1250mm carousel - PTS EID tags marking inside view

Animal ear tags laser marking and RFID programing

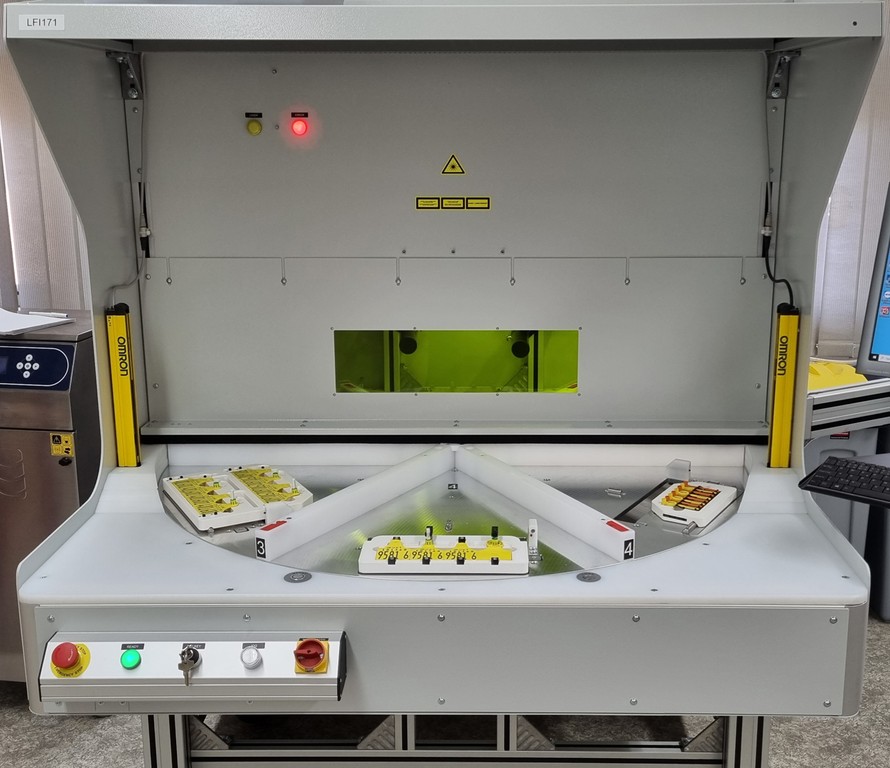

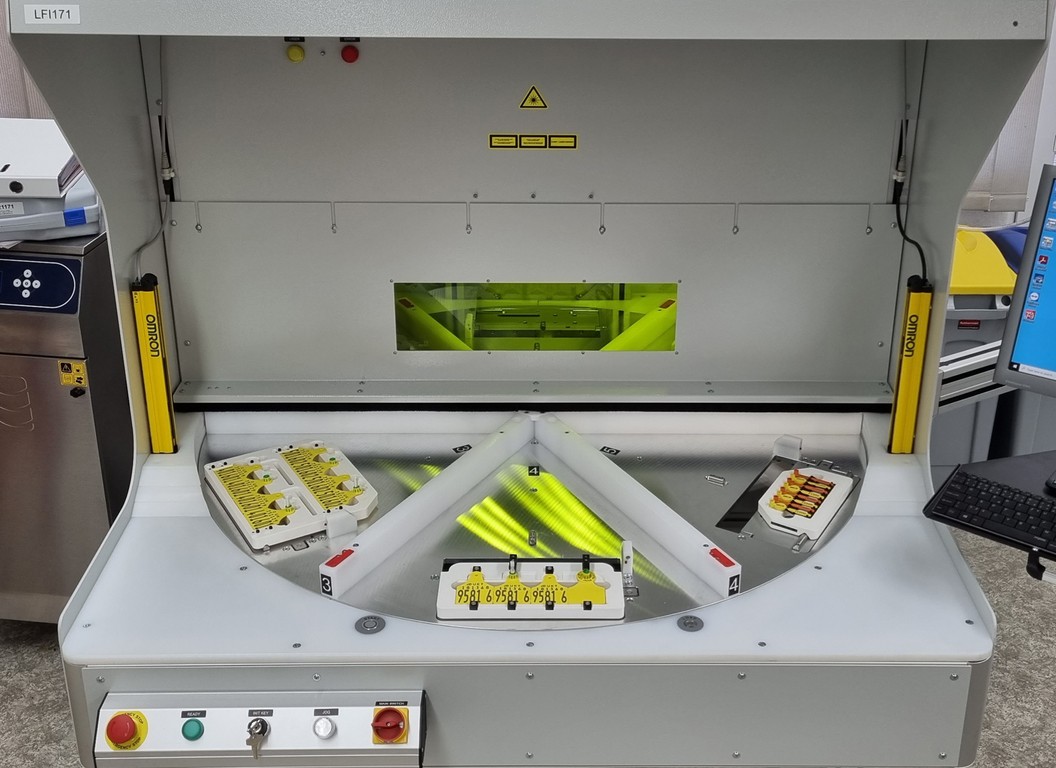

Laser marking station LF100XL with 1250mm carousel – station details

High productivity animal ear tags laser marking

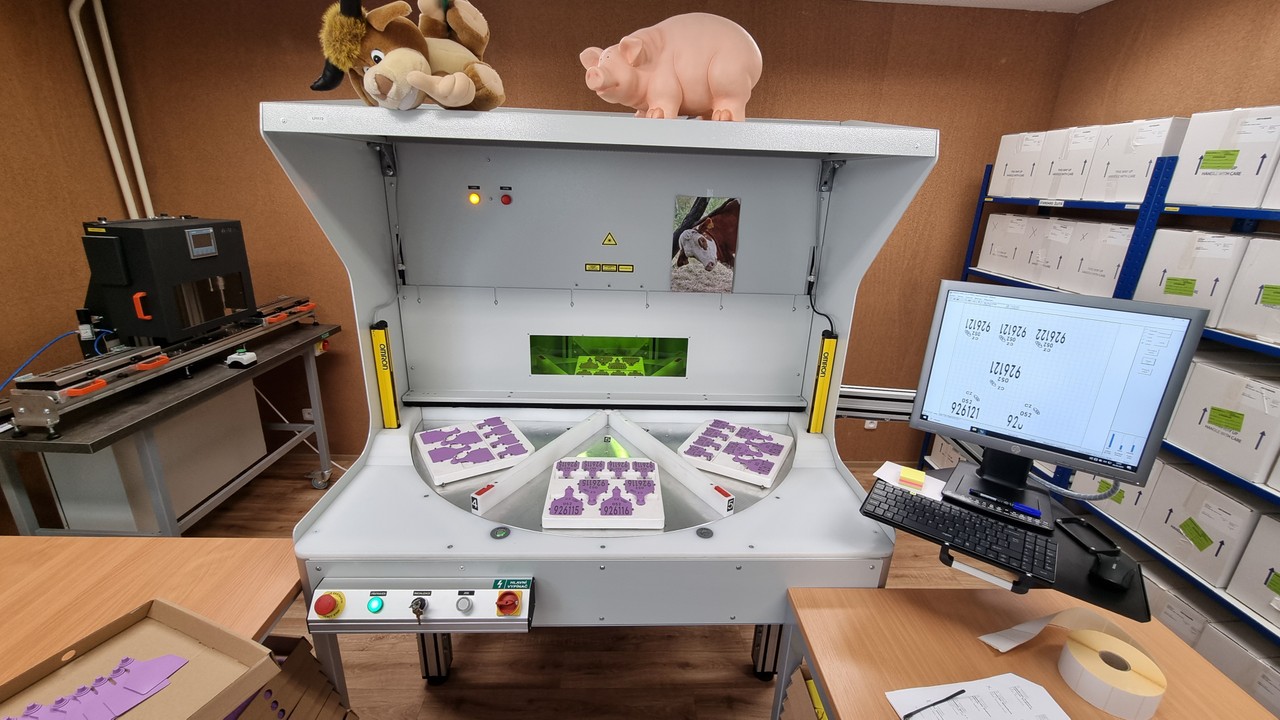

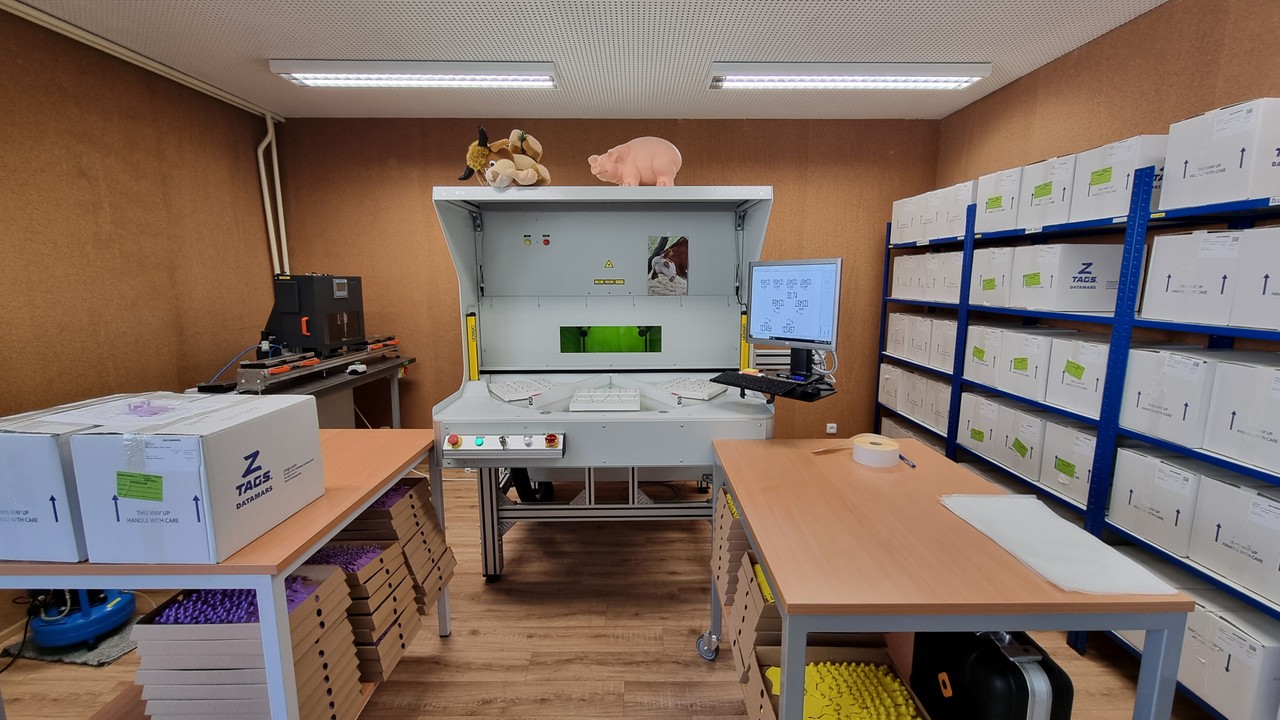

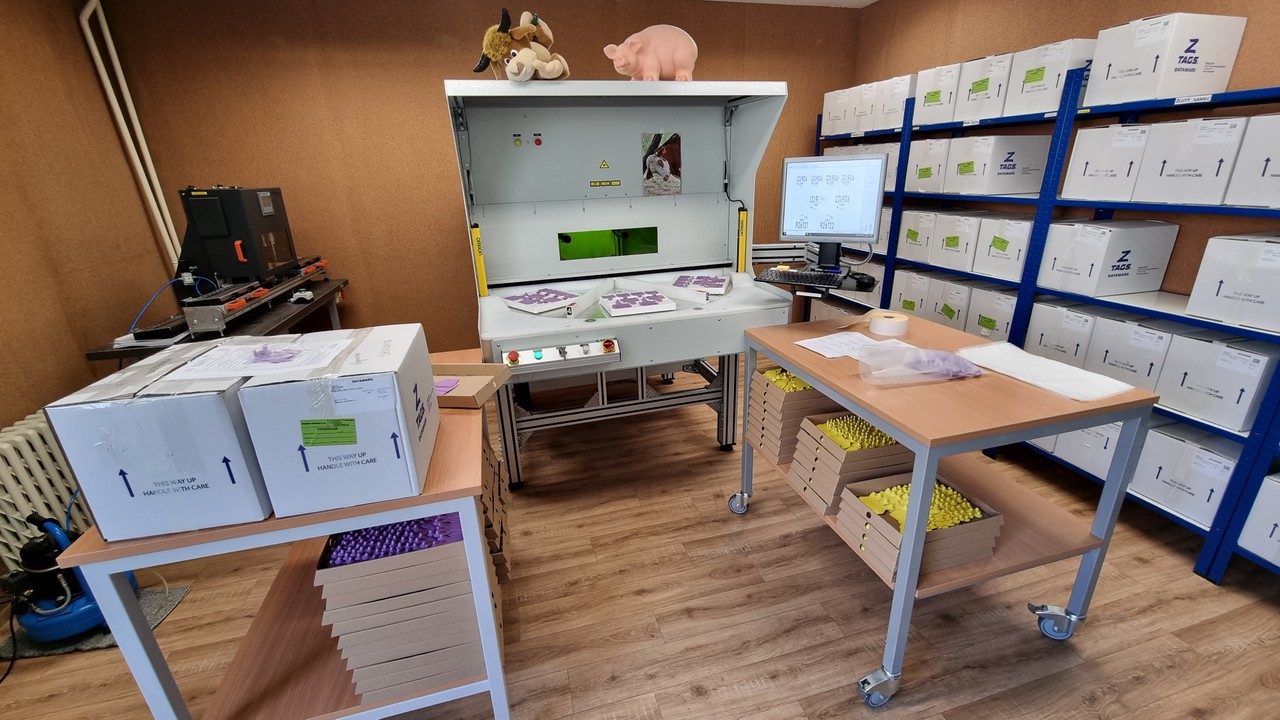

Laser marking station LF100XL with 1250mm carousel LFI172

File to download

LFxxXL_Carousel_en.pdf
